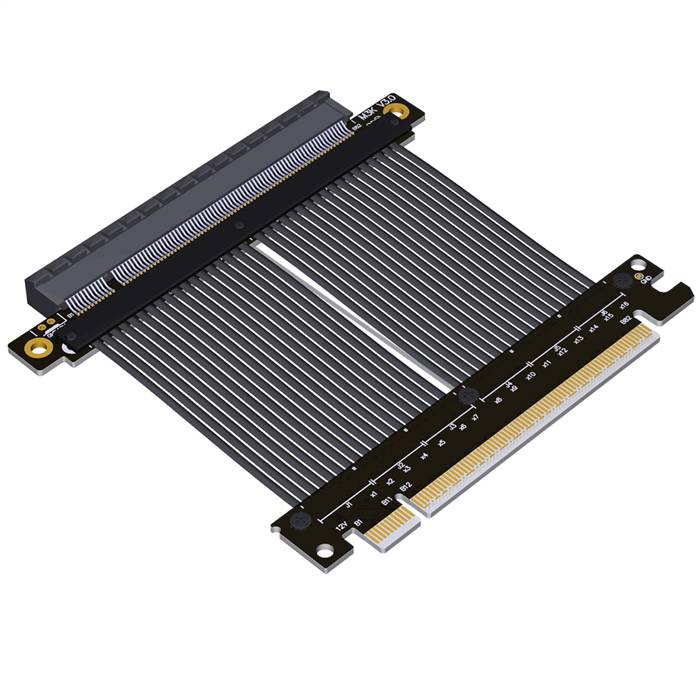

PCIe 4.0 x16 Male to x16 Female Extension Cable

The PCIe 4.0 x16 Male to x16 Female Extension Cable is a high-performance passive interconnect solution designed for full-bandwidth PCIe 4.0 extension applications. This cable maintains all 16 PCIe lanes while supporting the doubled data transfer rate of 16.0 GT/s per lane compared to PCIe 3.0, delivering a total theoretical bandwidth of approximately 31.5 GB/s. It features precision-engineered connectors with advanced signal integrity preservation techniques to handle the increased speed requirements of the PCIe 4.0 specification. The cable utilizes specialized low-loss dielectric materials and controlled impedance pathways to minimize signal degradation and maintain timing accuracy. Constructed with multi-layer EMI/RFI shielding, this extension solution ensures reliable operation in electrically noisy environments while providing flexible physical placement of PCIe devices. It is backward compatible with PCIe 3.0/2.0/1.0 devices.

Features

• Full x16 Lane Support: Maintains complete 16-lane connectivity without bandwidth reduction, supporting the maximum PCIe 4.0 bandwidth of approximately 31.5 GB/s for high-performance devices.
• High-Speed Performance: Supports PCIe 4.0 specifications with 16.0 GT/s per lane data transfer rate, utilizing 128b/130b encoding scheme for efficient data transmission.
• Enhanced Signal Integrity: Implements advanced shielding technologies and low-loss materials to minimize insertion loss, crosstalk, and electromagnetic interference at higher frequencies.
• Precision Impedance Control: Features carefully engineered 85-ohm differential impedance pathways to maintain signal quality and timing margins throughout the cable assembly.
• Flexible Routing Design: Provides adaptable cable length options with durable, flexible jackets to accommodate various chassis layouts and installation requirements.
• Robust Construction: Incorporates reinforced connector housings with gold-plated contacts and strain relief mechanisms to ensure long-term reliability in demanding environments.

Specifications

• Product Model: PCIe 4.0 x16 Male to x16 Female Extension Cable
• Connector A: PCIe 4.0 x16, Male, Edge Connector
• Connector B: PCIe 4.0 x16, Female, Standard Orientation
• Cable Type: Passive Copper Extension Assembly
• Pinout Configuration: PCIe-compliant 1:1 lane mapping
• Data Rate Support: Up to 16.0 GT/s (PCIe 4.0)
• Supported Protocols: PCI Express 4.0/3.0/2.0/1.0
• Impedance: 85 ohms differential (precision controlled for PCIe 4.0 requirements)
• Cable Length: Standard options: 0.2m, 0.3m, 0.5m (custom lengths up to 0.8m available with signal integrity validation)
• Wire Gauge: 30-34 AWG for high-speed data lines (typical for PCIe 4.0 applications)
• Shielding: Multi-layer foil and braid with comprehensive EMI/RFI protection
• Operating Temperature: -20°C to +80°C (commercial grade)
• Durability: Minimum 500 insertion cycles
• Safety Standards: RoHS compliant

Applications

• High-Performance Computing Systems: Enabling flexible GPU and accelerator card placement in workstations and servers where maximum PCIe 4.0 bandwidth is required for data-intensive applications.
• Custom Gaming Rigs: Facilitating creative GPU mounting configurations in modified cases while maintaining full PCIe 4.0 performance for gaming and content creation.
• Data Center Infrastructure: Supporting flexible card placement in rack-mounted servers and storage systems where space optimization and full bandwidth utilization are critical.
• Hardware Testing and Validation: Providing essential flexibility for development benches to test and validate PCIe 4.0 devices without being constrained by motherboard slot locations.
