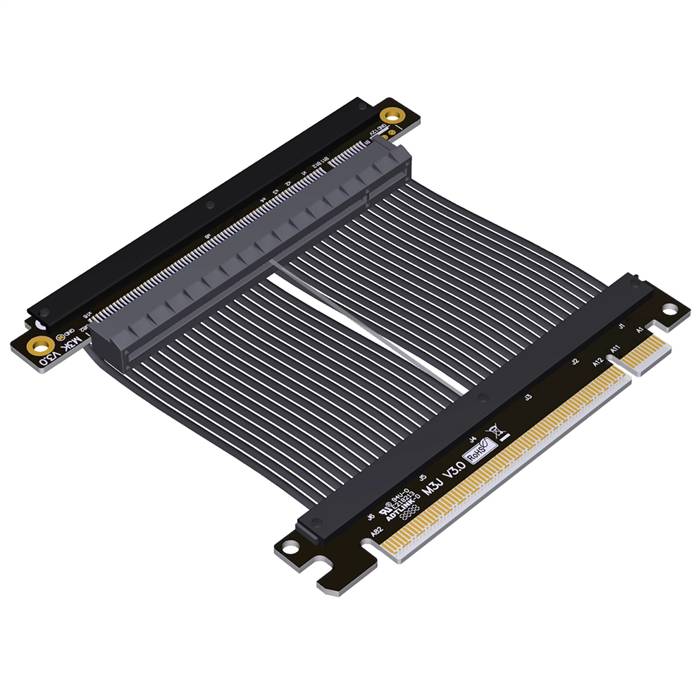

PCIe 4.0 x16 Male to x16 Female Turn 180 Degree Extension Cable

The PCIe 4.0 x16 Male to x16 Female Turn 180 Degree Extension Cable is an innovative high-performance interconnect solution designed for advanced computing systems requiring complete GPU orientation reversal and maximum installation flexibility. This specialized cable features a full 180-degree rotation design that enables unique graphics card mounting configurations while maintaining full PCIe 4.0 performance. Engineered for custom PC builds, specialized workstations, and space-constrained environments, this extension solution allows for complete component direction reversal without compromising signal integrity or bandwidth capabilities, making it ideal for creative system layouts and challenging installation scenarios.

Features

• Complete 180-Degree Rotation: Enables full reversal of GPU orientation for maximum installation flexibility and creative system configurations
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 256 Gbps for high-performance graphics cards and accelerators
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission through the complete 180-degree cable path
• Advanced Cable Management: 180-degree turn facilitates clean routing in complex system layouts and challenging spatial configurations
• Reinforced Construction: High-quality materials and robust strain relief provide durability in permanent installations
• Multi-Layer Shielding: Comprehensive EMI/RFI protection maintains signal quality through the extended cable path
• Universal Compatibility: Supports all PCIe 4.0 compatible devices while maintaining backward compatibility with previous PCIe generations

Specifications

• Host Connector: PCI Express 4.0 x16 Male
• Target Connector: PCIe 4.0 x16 Female with 180-degree orientation
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 256 Gbps (x16 lanes)
• Cable Configuration: 180-degree turn design
• Cable Type: Shielded twisted pair with reinforced construction
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• Custom Case Modifications: Essential for heavily modified computer cases requiring complete GPU orientation reversal for optimal layout
• Complex System Integrations: Ideal for specialized workstations and servers where component positioning demands complete direction change
• Space-Constrained Environments: Perfect for installations with severe spatial limitations where traditional cable routing is impossible
• Showcase and Exhibition Systems: Excellent for demonstration computers and display systems requiring unique component presentation
• Advanced Water Cooling Setups: Supports complex liquid cooling configurations where radiator and tubing placement necessitates GPU reversal
• Prototype Development: Valuable for engineering prototypes and test platforms requiring flexible component orientation for validation
• Compact Industrial Computers: Suitable for industrial PCs and embedded systems where internal layout optimization is critical
• Aesthetic-Focused Builds: Enables dramatic visual presentations in showcase PCs where unconventional component orientation creates striking visual impact
