PCIe 4.0 x16 Male to x16 Female Turn 90 Degree Extension Cable

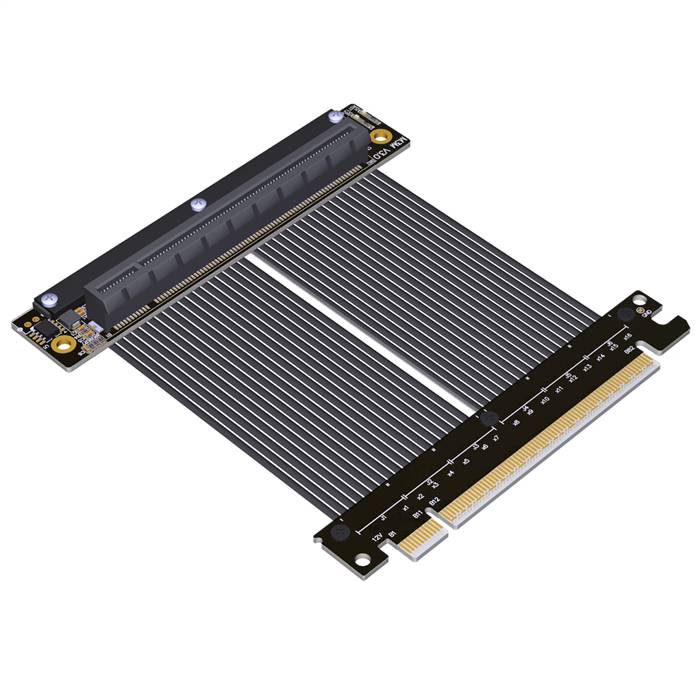

The PCIe 4.0 x16 Male to x16 Female Turn 90 Degree Extension Cable is a specialized high-performance interconnect solution designed for advanced computing systems requiring precise GPU positioning and optimal space utilization. This innovative cable features a 90-degree angled design that enables perpendicular graphics card mounting while maintaining full PCIe 4.0 performance. Engineered for custom PC builds, compact systems, and specialized installations, this extension solution facilitates unique component placement configurations where traditional straight cables cannot accommodate spatial constraints, making it ideal for modified cases and optimized chassis layouts.

Features

• 90-Degree Angled Design: Enables perpendicular GPU mounting for space-optimized system configurations and improved cable management
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 256 Gbps for high-performance graphics cards
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission without signal degradation
• Reinforced Construction: High-quality materials and robust connector design provide reliable performance in various orientations
• Flexible Installation Options: 90-degree turn facilitates installation in cases with limited clearance above the PCIe slot
• Advanced Shielding Technology: Multi-layer EMI/RFI protection maintains signal quality in electrically noisy environments
• Universal Compatibility: Supports all PCIe 4.0 compatible devices while maintaining backward compatibility with previous generations

Specifications

• Host Connector: PCI Express 4.0 x16 Male
• Target Connector: PCIe 4.0 x16 Female with 90-degree orientation
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 256 Gbps (x16 lanes)
• Cable Type: Shielded twisted pair with reinforced angled construction
• Angle Configuration: 90-degree turn
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• Compact System Builds: Ideal for small form factor cases where perpendicular GPU mounting maximizes internal space utilization
• Custom Case Modding: Essential for modified computer cases requiring non-traditional component orientation and creative layout solutions
• Aesthetic PC Builds: Perfect for showcase systems where clean cable management and optimized component placement enhance visual appeal
• Vertical Mount Setups: Supports vertical GPU mounting configurations in cases with limited horizontal clearance
• Server Applications: Useful in rack-mounted systems where specific component orientation improves airflow and serviceability
• Test and Development: Valuable for hardware validation environments requiring flexible component positioning for testing and measurement
• Workstation Integration: Suitable for professional workstations where both performance and internal layout efficiency are critical
• Display Systems: Excellent for kiosk and digital signage computers where unique form factors require specialized component orientation
