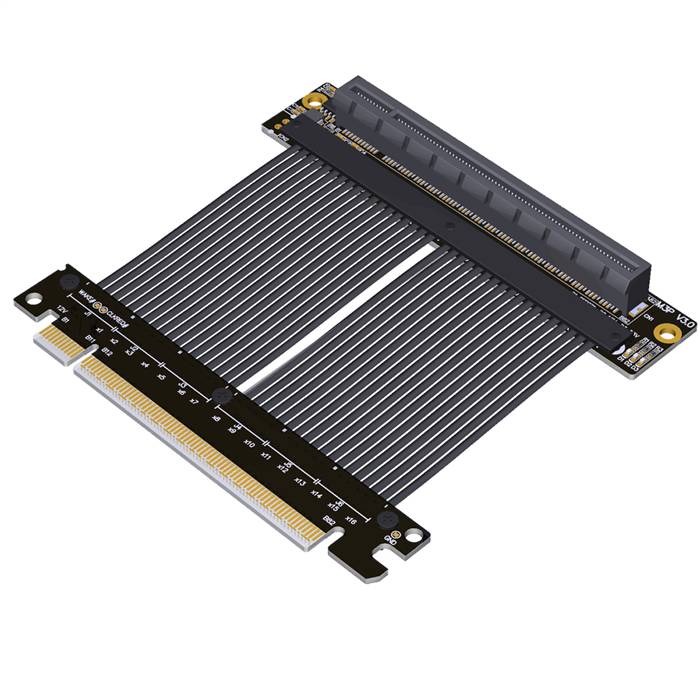

PCIe 4.0 x16 Male to x16 Female Down R/A Extension Cable

The PCIe 4.0 x16 Male to x16 Female Down R/A Extension Cable is a high-performance interconnect solution engineered for space-constrained computing systems . This cable features a Down Right-Angle (Down R/A) female connector that directs the extension downward relative to the motherboard plane, optimizing space utilization in dense server racks and compact chassis . Supporting the complete PCIe 4.0 specification with full x16 lane preservation, it delivers a maximum theoretical bandwidth of up to 16 GT/s per lane while maintaining superior signal integrity through precision impedance control . The robust construction ensures reliable performance in demanding environments, making it ideal for high-density configurations where both form factor and data integrity are critical .

Features

• Full x16 lane support: Maintains complete 16-lane connectivity supporting PCIe 4.0 bandwidth for high-performance devices like GPUs and accelerators
• Down right-angle connector: Down R/A female connector facilitates downward cable routing, reducing vertical clearance requirements in 1U/2U servers
• High-speed performance: Supports 16.0 GT/s per lane data transfer rate, effectively doubling the bandwidth of previous PCIe 3.0 generation
• Enhanced signal integrity: Utilizes low-loss materials and multi-layer EMI shielding to preserve signal quality at high frequencies
• Precision engineering: Features 85-ohm impedance-controlled pathways for consistent signal quality and timing accuracy
• Robust construction: Reinforced connector housings with gold-plated contacts ensure durability and reliable connectivity
• Backward compatibility: Fully supports PCIe 3.0/2.0/1.0 devices, providing broad system compatibility
• Flexible routing: Thin ribbon cable structure with tight bend radius allows easy routing in confined spaces

Specifications

• Product Model: PCIe 4.0 x16 Male to x16 Female Down R/A Extension Cable
• Host Connector: PCIe 4.0 x16, Male, Edge Connector
• Device Connector: PCIe 4.0 x16, Female, Down Right-Angle
• Cable Type: Passive Copper Extension Assembly
• Pinout Configuration: PCIe-compliant 1:1 lane mapping
• Data Rate Support: Up to 16.0 GT/s (PCIe 4.0)
• Supported Protocols: PCI Express 4.0/3.0/2.0/1.0
• Impedance: 85 ohms differential (precision controlled)
• Cable Length: 250mm, 300mm, 500mm standard options
• Wire Gauge: 30-34 AWG for high-speed data transmission
• Shielding: Multi-layer foil and braid EMI protection
• Operating Temperature: -20°C to +80°C (commercial grade)
• Durability: Minimum 500 insertion cycles
• Safety Standards: RoHS compliant

Applications

• High-density servers: Downward-facing cable routing optimizes space in rack-mounted systems where vertical clearance is limited
• Data center infrastructure: Flexible card placement in rack-mounted servers and storage systems requiring full bandwidth utilization
• Compact workstations: Enables innovative solutions in small cases where downward cable routing maximizes limited internal space
• Test and development: Useful for laboratory environments requiring specific card orientation for hardware validation
• Enterprise storage systems: Suitable for large-scale deployments requiring reliable PCIe connectivity in confined spaces
• OEM server solutions: Designed for server manufacturers needing optimized cable routing in dense configurations
