PCIe 4.0 x16 Male to x16 Female Up R/A Extension Cable, 85-ohm Low Impedance

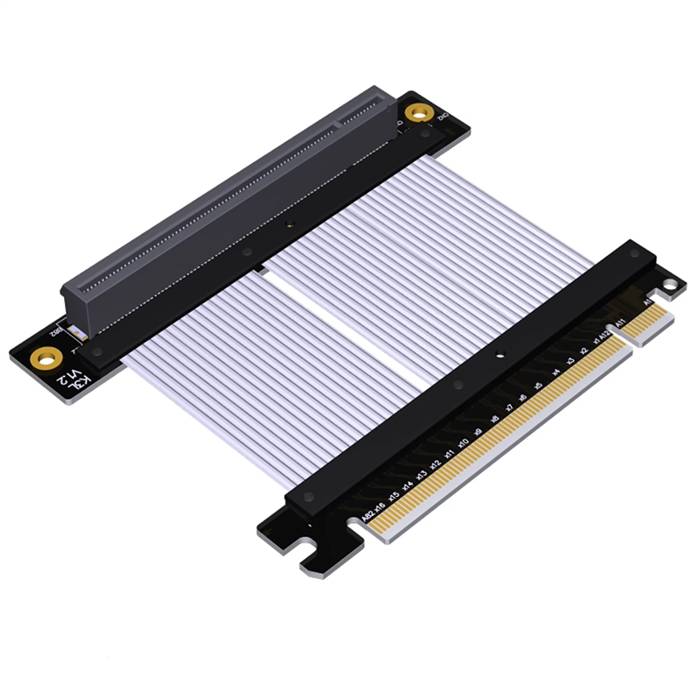

The PCIe 4.0 x16 Male to x16 Female Up R/A Extension Cable is a high-performance passive interconnect solution engineered for full-bandwidth PCIe 4.0 extension applications requiring upward cable routing . This cable maintains all 16 PCIe lanes while supporting a data transfer rate of 16.0 GT/s per lane, delivering a total theoretical bandwidth of approximately 31.5 GB/s without lane reduction . Featuring an Up Right-Angle (Up R/A) female connector that directs the extension upward relative to the motherboard plane, this design optimizes space utilization in specialized chassis configurations and modified cases . Precision-engineered with 85-ohm impedance-controlled pathways, it ensures optimal signal integrity and minimal signal degradation for high-speed data transmission . The cable utilizes low-loss twin-axial construction with multi-layer EMI shielding to preserve signal quality in electrically noisy environments . Its thin ribbon cable structure with extremely tight bend radius facilitates easy routing in space-constrained configurations, making it ideal for dense server racks and custom computing systems .

Features

• Full x16 lane support: Maintains complete 16-lane connectivity supporting maximum PCIe 4.0 bandwidth of 16.0 GT/s per lane for high-performance graphics cards and accelerators
• Up right-angle connector: Up R/A female connector facilitates upward cable routing for optimized clearance in modified cases and specialized mounting configurations
• 85-ohm impedance control: Precision-engineered differential impedance pathways optimized for PCIe 4.0 applications ensure signal integrity and timing accuracy
• Enhanced signal integrity: Utilizes low-loss dielectric materials and multi-layer EMI shielding to minimize insertion loss, crosstalk, and electromagnetic interference at high frequencies
• Flexible routing design: Thin ribbon cable structure with extremely tight bend radius allows easy installation in confined spaces and dense server configurations
• Robust construction: Reinforced connector housings with gold-plated contacts and strain relief mechanisms ensure durability and reliable connectivity through multiple insertion cycles
• Backward compatibility: Fully supports previous PCIe generations including 3.0, 2.0, and 1.0 devices, providing broad system compatibility
• High-speed performance: Supports PCIe 4.0 specifications with 16.0 GT/s per lane data transfer rate, effectively doubling the bandwidth of previous PCIe 3.0 generation

Specifications

• Product Model: PCIe 4.0 x16 Male to x16 Female Up R/A Extension Cable
• Host Connector: PCIe 4.0 x16, Male, Edge Connector
• Device Connector: PCIe 4.0 x16, Female, Up Right-Angle
• Cable Type: Passive Copper Twin Axial Extension Assembly
• Pinout Configuration: PCIe-compliant 1:1 lane mapping
• Data Rate Support: Up to 16.0 GT/s (PCIe 4.0)
• Supported Protocols: PCI Express 4.0/3.0/2.0/1.0
• Impedance: 85 ohms differential (precision controlled for PCIe 4.0 requirements)
• Cable Length: 250mm, 300mm, 500mm standard options
• Wire Gauge: 30-31 AWG for high-speed data transmission
• Shielding: Multi-layer foil and braid with comprehensive EMI protection
• Operating Temperature: -20°C to +80°C (commercial grade)
• Durability: Minimum 500 insertion cycles
• Safety Standards: RoHS compliant

Applications

• Custom water-cooling systems: Upward-facing cable routing provides optimal clearance for radiator installations and tubing management in modified PC builds
• Vertical GPU mounting: Enables creative GPU orientation in modified cases where upward cable direction improves aesthetics and airflow dynamics
• High-density server racks: Space-optimized configurations where upward routing prevents component interference in dense server environments
• Test and measurement: Flexible connectivity for hardware validation setups requiring specific card orientation for probe access and debugging
• Gaming and workstation rigs: High-performance systems requiring maximum PCIe 4.0 bandwidth and customized component placement
• Compact form factor builds: Innovative solutions in small cases where upward cable routing maximizes limited internal space
• Data center infrastructure: Flexible card placement in rack-mounted servers and storage systems requiring full bandwidth utilization
