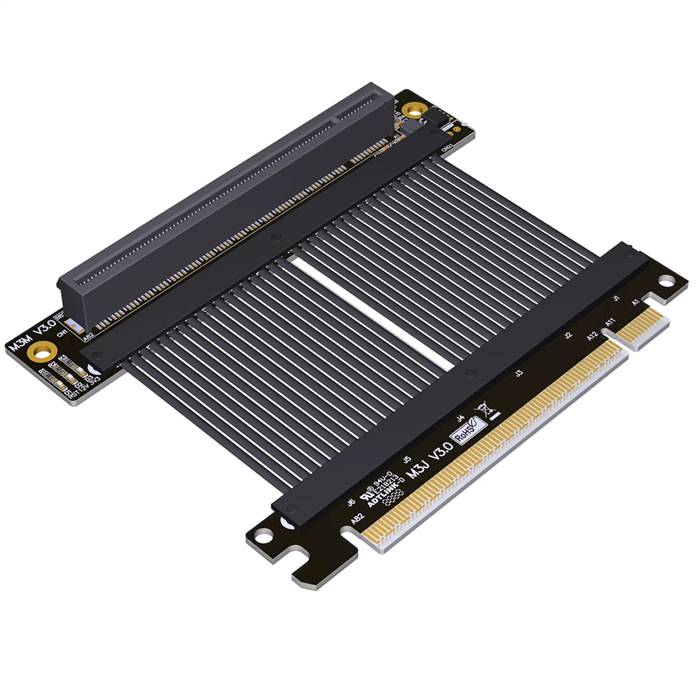

PCIe 4.0 x16 Male to x16 Female Up R/A Extension Cable

The PCIe 4.0 x16 Male to x16 Female Up R/A Extension Cable is a high-performance interconnect solution engineered for modern computing systems requiring flexible component placement. This cable features an Up Right-Angle female connector that directs the extension upward from the motherboard plane, optimizing space utilization in specialized chassis configurations. Supporting the complete PCIe 4.0 specification with full x16 lane preservation, it delivers maximum theoretical bandwidth while maintaining superior signal integrity through precision impedance control. The robust construction ensures reliable performance in demanding environments, making it ideal for custom builds, vertical GPU mounting, and space-constrained applications where both form factor and data integrity are critical.

Features

• Full x16 lane support: Maintains complete 16-lane connectivity supporting PCIe 4.0 bandwidth up to 31.5 GB/s
• Up right-angle connector: Up R/A female connector facilitates upward cable routing for optimized clearance
• High-speed performance: Supports 16.0 GT/s per lane data transfer rate with 128b/130b encoding
• Enhanced signal integrity: Utilizes low-loss materials and multi-layer EMI shielding
• Precision engineering: Features 85-ohm impedance-controlled pathways for consistent signal quality
• Robust construction: Reinforced connector housings with gold-plated contacts and strain relief
• Backward compatibility: Fully supports PCIe 3.0/2.0/1.0 devices
• Flexible routing: Durable yet flexible cable jacket allows easy installation in tight spaces

Specifications

• Product Model: PCIe 4.0 x16 Male to x16 Female Up R/A Extension Cable
• Host Connector: PCIe 4.0 x16, Male, Edge Connector
• Device Connector: PCIe 4.0 x16, Female, Up Right-Angle
• Cable Type: Passive Copper Extension Assembly
• Pinout Configuration: PCIe-compliant 1:1 lane mapping
• Data Rate Support: Up to 16.0 GT/s (PCIe 4.0)
• Supported Protocols: PCI Express 4.0/3.0/2.0/1.0
• Impedance: 85 ohms differential
• Cable Length: 0.3m, 0.5m, 0.7m
• Wire Gauge: 30-34 AWG
• Shielding: Multi-layer foil and braid EMI protection
• Operating Temperature: -20°C to +80°C
• Durability: 500 insertion cycles minimum
• Safety Standards: RoHS compliant

Applications

• Custom water-cooling systems: Upward-facing cable routing provides optimal clearance for radiator installations
• Vertical GPU mounting: Enables creative GPU orientation in modified cases for improved aesthetics and airflow
• High-density server racks: Space-optimized configurations where upward routing prevents component interference
• Test and measurement: Flexible connectivity for hardware validation requiring specific card orientation
• Gaming and workstation rigs: High-performance systems requiring maximum bandwidth and customized component placement
• Compact form factor builds: Innovative solutions in small cases where upward routing maximizes internal space
• Data center infrastructure: Flexible card placement in rack-mounted servers requiring full bandwidth utilization
