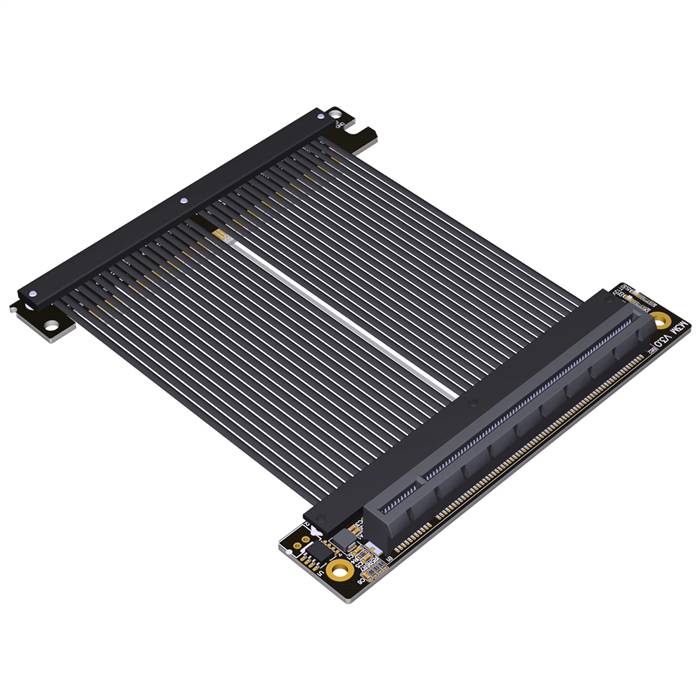

PCIe 4.0 x16 Male Turn 180 Degree to x16 Female Turn 90 Degree Extension Cable

The PCIe 4.0 x16 Male Turn 180 Degree to x16 Female Turn 90 Degree Extension Cable is an advanced multi-angle interconnect solution designed for complex computing systems requiring sophisticated component positioning and maximum installation flexibility. This specialized cable combines a 180-degree male connector with a 90-degree female connector, enabling unique multi-angle GPU mounting configurations while maintaining full PCIe 4.0 performance. Engineered for the most challenging custom builds, specialized workstations, and space-constrained environments, this hybrid angle solution addresses complex spatial requirements where multiple orientation adjustments are necessary for optimal system layout and component placement.

Features

• Dual-Angle Configuration: Combines 180-degree male connector with 90-degree female connector for maximum installation versatility in complex spatial scenarios
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 256 Gbps through both angled segments
• Advanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission through multiple angle transitions
• Hybrid Orientation Capability: Enables both complete direction reversal and perpendicular mounting in a single cable solution
• Reinforced Multi-Angle Construction: High-quality materials and robust strain relief at both angle points provide durability in permanent installations
• Comprehensive EMI Protection: Multi-layer shielding throughout both angled sections maintains signal quality in electrically challenging environments
• Universal Compatibility: Supports all PCIe 4.0 compatible devices while maintaining backward compatibility with previous generations

Specifications

• Host Connector: PCI Express 4.0 x16 Male with 180-degree turn
• Target Connector: PCIe 4.0 x16 Female with 90-degree turn
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 256 Gbps (x16 lanes)
• Cable Configuration: Combined 180-degree and 90-degree angled design
• Cable Type: Shielded twisted pair with reinforced multi-angle construction
• Cable Length: 250mm, 300mm, 350mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• Advanced Case Modding: Essential for highly modified computer cases requiring multiple angle adjustments for optimal GPU placement
• Complex System Integration: Ideal for specialized workstations and servers where spatial constraints demand both reversal and perpendicular orientation
• Extreme Space Optimization: Perfect for installations with multiple spatial challenges requiring compound angle solutions
• Professional Content Creation Rigs: Suitable for high-end workstations where both performance and precise component positioning are critical
• Custom Water Cooling Systems: Supports elaborate liquid cooling configurations requiring multiple angle adjustments for optimal tubing routing
• Prototype and Development Platforms: Valuable for engineering development requiring flexible multi-angle component orientation for testing and validation
• Industrial Computing Solutions: Excellent for industrial PCs and embedded systems with complex internal layout requirements
• Showcase and Competition Builds: Enables unprecedented layout creativity in showcase PCs and modding competitions where unique component orientation demonstrates technical innovation
