PCIe 4.0 x1 Male to x16 Female Extension Cable

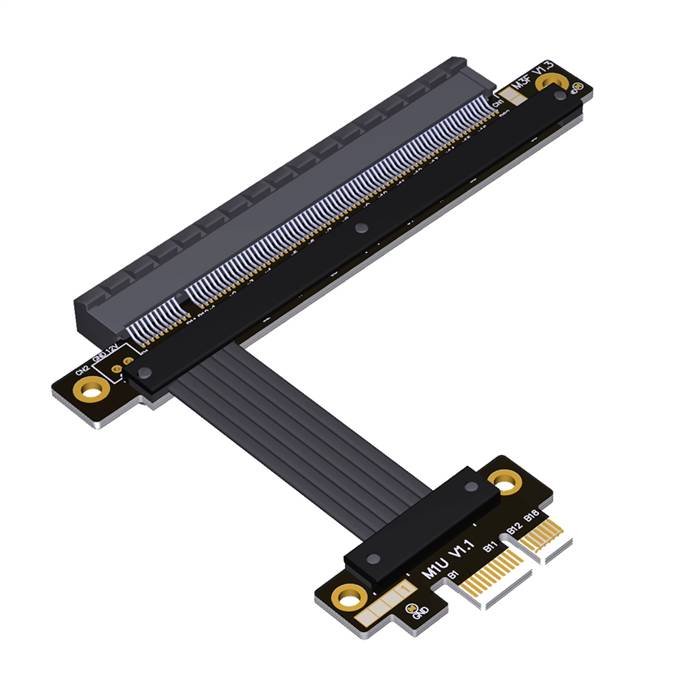

The PCIe 4.0 x1 Male to x16 Female Extension Cable is a high-performance interface extension solution designed to connect PCIe 4.0 x1 host interfaces to PCIe x16 devices. This cable features a PCIe 4.0 x1 male connector on one end and a PCIe x16 female connector on the other end, enabling seamless integration of x16 devices (e.g., GPUs, expansion cards) into systems with limited PCIe slot availability or space constraints. Engineered for reliability and signal integrity, this cable utilizes 85? low-impedance twin-axial cable technology (e.g., 31 AWG signal wires) to minimize signal degradation and ensure high-speed data transfer. It is ideal for gaming rigs, compact workstations, server upgrades, and applications requiring flexible PCIe expansion with optimal airflow management and cable routing.

Features

• Interface Extension: Converts PCIe 4.0 x1 male interface to PCIe x16 female interface.
• High-Speed Performance: Supports PCIe 4.0 specifications with data transfer rates up to 16 GT/s (2 GB/s per lane for x1).
• Low Impedance: Optimized 85? impedance matching (per PCIe 4.0 standards) ensures minimal signal degradation and superior signal integrity.
• Enhanced Compatibility: Compatible with PCIe 4.0/3.0/2.0 protocols and x16 devices (e.g., GPUs, NICs, RAID cards).
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation (2,500+ mating cycles).
• Durable Construction: High-quality materials (e.g., gold-plated contacts, braided shielding) ensure longevity and repeated use.
• Plug-and-Play Operation: Requires no additional drivers or software for installation.
• Flexible Design: Thin ribbon cable structure allows easy routing in dense server configurations.

Specifications

• Host Connector: PCIe 4.0 x1 Male
• Device Connector: PCIe x16 Female
• Data Rate Support: Up to 16 GT/s (PCIe 4.0 x1), compatible with PCIe 3.0/2.0.
• Supported Protocols: PCIe 4.0/3.0/2.0.
• Impedance: 85? ±5% (differential).
• Cable Construction: Twin-axial cable with 31 AWG signal wires (e.g., 3M™ Low Loss Twin Axial Cable).
• Cable Length: Typically 0.25m, 0.3m, 0.5m (standard options).
• Operating Temperature: -20°C to +85°C.
• Durability Rating: 2,500+ mating cycles (connectors).
• Shielding: Individual pair shielding with overall braid protection to minimize EMI.
• Contact Plating: Gold-plated contacts (15?" minimum) for enhanced conductivity.
• Dielectric Withstanding Voltage: 300V AC.

Applications

• Gaming Rigs: Enabling GPU installation in compact cases with optimized airflow.
• Compact Workstations: Adding x16 expansion cards (e.g., GPUs, capture cards) to small form factor systems.
• Server Upgrades: Integrating x16 devices into servers with limited PCIe slot availability.
• Test Benches: Temporary connectivity for testing and validating PCIe x16 devices.
• Data Recovery: Facilitating access to x16-based storage or accelerator cards.
• Embedded Systems: Industrial applications requiring x16 connectivity in space-constrained environments.
• Research and Development: Prototyping and development involving PCIe x16 technology.
• High-Density Data Centers: Ideal for server and storage configurations where space optimization is critical.

Compatibility Notes

This cable is designed for connecting PCIe x16 devices to PCIe 4.0 x1 host interfaces. Ensure the host system’s PCIe slot supports PCIe 4.0 or earlier versions (3.0/2.0) for backward compatibility. Note that while the cable provides mechanical x16 compatibility, the electrical bandwidth is limited to PCIe x1 (e.g., PCIe 4.0 x1 theoretical bandwidth is ~2 GB/s, while a native x16 slot can reach ~32 GB/s). Verify device power requirements, as some x16 devices (e.g., high-end GPUs) may require additional power connectors not provided by the cable. This solution is not suitable for devices requiring full x16 electrical bandwidth for optimal performance.

Note: All specifications adhere to PCI-SIG PCIe 4.0 standards and low-impedance design principles (85?), ensuring interoperability with PCIe-based systems. For optimal performance, use high-quality cables with proper shielding to minimize signal degradation. The cable is compatible with Card Electromechanical (CEM) connectors and can be used to relocate PCIe card slots or bridge slots on different PCBs.
