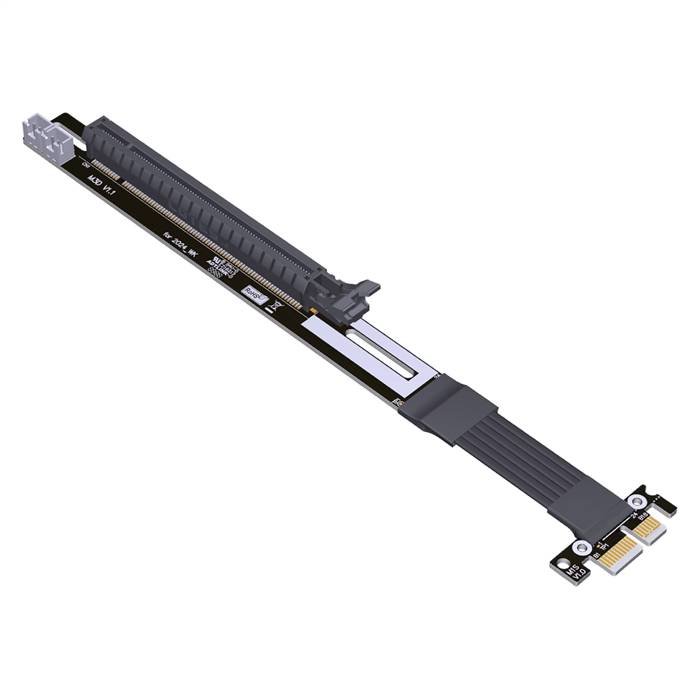

PCIe 4.0 x1 Male to x16 Female Up R/A Extension Cable with Lock and SATA 15P Power Cable

The PCIe 4.0 x1 Male to x16 Female Up R/A Extension Cable with Lock and SATA 15P Power Cable is a high-performance interface extension solution designed to connect PCIe 4.0 x1 host interfaces to PCIe x16 devices while providing dedicated power delivery via an integrated SATA 15-pin power connector. This cable features a PCIe 4.0 x1 male connector on one end, an upward right-angle (Up R/A) PCIe x16 female connector with a locking mechanism on the other end, and an integrated SATA 15-pin power cable. Engineered for reliability and signal integrity, this cable utilizes 85? low-impedance twin-axial cable technology (e.g., 31 AWG signal wires) to minimize signal degradation and ensure high-speed data transfer. It is ideal for gaming rigs, compact workstations, server upgrades, and applications requiring flexible PCIe expansion with secure connections and auxiliary power delivery.

Features

• Interface Extension: Converts PCIe 4.0 x1 male interface to PCIe x16 female interface with upward right-angle orientation and locking mechanism.
• Integrated Power Delivery: Includes a SATA 15-pin power cable to provide auxiliary power (12V/5V/3.3V) to PCIe x16 devices.
• High-Speed Performance: Supports PCIe 4.0 specifications with data transfer rates up to 16 GT/s (2 GB/s per lane for x1).
• Upward Right-Angle Design: Space-saving upward right-angle x16 connector facilitates efficient cable routing and improves airflow in compact systems.
• Locking Mechanism: Secure locking feature ensures stable connections and prevents accidental disconnection.
• Low Impedance: Optimized 85? impedance matching (per PCIe 4.0 standards) ensures minimal signal degradation and superior signal integrity.
• Enhanced Compatibility: Compatible with PCIe 4.0/3.0/2.0 protocols and x16 devices (e.g., GPUs, NICs, RAID cards).
• Durable Construction: High-quality materials (e.g., gold-plated contacts, braided shielding) ensure longevity and repeated use.

Specifications

• Host Connector: PCIe 4.0 x1 Male
• Device Connector: PCIe x16 Female (Upward Right-Angle with Lock)
• Power Connector: SATA 15-pin Male (for auxiliary power delivery)
• Data Rate Support: Up to 16 GT/s (PCIe 4.0 x1), compatible with PCIe 3.0/2.0.
• Supported Protocols: PCIe 4.0/3.0/2.0.
• Power Delivery: 12V/5V/3.3V via SATA 15-pin connector (supports up to 4.5A per voltage rail).
• Impedance: 85? ±5% (differential).
• Cable Construction: Twin-axial cable with 31 AWG signal wires (e.g., 3M™ Low Loss Twin Axial Cable).
• Cable Length: Typically 0.25m, 0.3m, 0.5m (standard options).
• Operating Temperature: -20°C to +85°C.
• Durability Rating: 2,500+ mating cycles (connectors).
• Shielding: Individual pair shielding with overall braid protection to minimize EMI.
• Contact Plating: Gold-plated contacts (15?" minimum) for enhanced conductivity.
• Dielectric Withstanding Voltage: 300V AC.

Applications

• Gaming Rigs: Enabling GPU installation in compact cases with vertical mounting, optimized airflow, and auxiliary power support.
• Compact Workstations: Adding x16 expansion cards (e.g., GPUs, capture cards) to small form factor systems with secure connections.
• Server Upgrades: Integrating x16 devices into servers with limited PCIe slot availability and additional power requirements.
• Test Benches: Temporary connectivity for testing and validating PCIe x16 devices with power delivery needs.
• Data Recovery: Facilitating access to x16-based storage or accelerator cards requiring auxiliary power.
• Embedded Systems: Industrial applications requiring x16 connectivity and power in space-constrained environments.
• High-Density Data Centers: Ideal for server and storage configurations where space optimization and power stability are critical.

Compatibility Notes

This cable is designed for connecting PCIe x16 devices to PCIe 4.0 x1 host interfaces. The upward right-angle x16 connector with locking mechanism is ideal for environments where vertical space is limited and cable routing must avoid obstruction (e.g., above PCB trays). The integrated SATA 15-pin power cable provides auxiliary power to devices requiring additional power beyond the PCIe slot (e.g., high-end GPUs or expansion cards). Ensure the host system’s PCIe slot supports PCIe 4.0 or earlier versions (3.0/2.0) for backward compatibility. Note that while the cable provides mechanical x16 compatibility, the electrical bandwidth is limited to PCIe x1 (e.g., PCIe 4.0 x1 theoretical bandwidth is ~2 GB/s, while a native x16 slot can reach ~32 GB/s). Verify device power requirements, as some x16 devices may still need additional power connectors beyond the SATA 15-pin provision. This solution is not suitable for devices requiring full x16 electrical bandwidth for optimal performance.

Note: All specifications adhere to PCI-SIG PCIe 4.0 standards and low-impedance design principles (85?), ensuring interoperability with PCIe-based systems. The upward right-angle configuration enhances cable management in vertically constrained environments. For optimal performance, use high-quality cables with proper shielding to minimize signal degradation. The SATA power connector complies with SATA power specifications for safe and reliable power delivery.
