PCIe 4.0 x1 Male to x8 Female Extension Cable

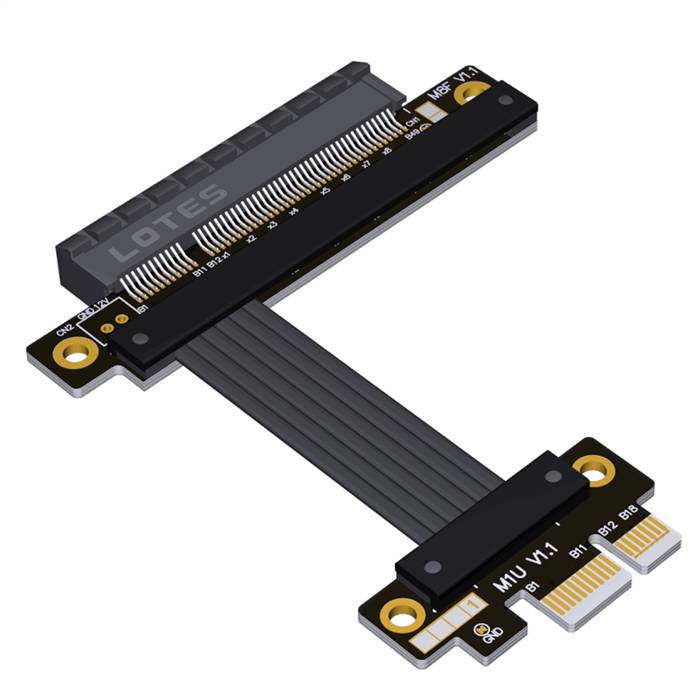

The PCIe 4.0 x1 Male to x8 Female Extension Cable is a high-performance interface extension solution designed to connect PCIe 4.0 x1 host interfaces to PCIe x8 devices. This cable features a PCIe 4.0 x1 male connector on one end and a PCIe x8 female connector on the other end, enabling seamless integration of x8 devices (e.g., NICs, RAID cards, other expansion cards) into systems with limited PCIe slot availability or space constraints. Engineered for reliability and signal integrity, this cable utilizes 85? low-impedance twin-axial cable technology (e.g., 31 AWG signal wires, as seen in premium designs like 3M™ Twin Axial Cable) to minimize signal degradation and ensure high-speed data transfer. It is ideal for server upgrades, compact workstations, high-density data centers, and applications requiring flexible PCIe expansion with optimal airflow management and cable routing.

Features

• Interface Extension: Converts PCIe 4.0 x1 male interface to PCIe x8 female interface, providing mechanical x8 compatibility.
• High-Speed Performance: Supports PCIe 4.0 specifications with data transfer rates up to 16 GT/s (16 Gbps, 2 GB/s per lane for x1), ensuring PCIe 4.0 bandwidth for expansion cards.
• Low Impedance: Optimized 85? impedance matching (per PCIe 4.0 standards) ensures minimal signal degradation and superior signal integrity.
• Enhanced Compatibility: Compatible with PCIe 4.0/3.0/2.0 protocols and x8 devices (e.g., NICs, RAID cards), and works with both Intel and AMD motherboards. Compatible with Card Electromechanical (CEM) connectors.
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation.
• Durable Construction: High-quality materials (e.g., gold-plated contacts: min. 0.76µm gold thickness per premium specs, braided shielding) ensure longevity and repeated use. Features EMI shielding to reduce electromagnetic interference.
• Flexible & Foldable Design: Utilizes thin, flat twin-axial cable (e.g., 3M™ Low Loss Twin Axial Cable with 31 AWG wires) that can be folded or bent (with an extremely small bend radius) without significantly affecting electrical performance, saving space and enabling unique packaging in dense servers.

Specifications

• Host Connector: PCIe 4.0 x1 Male
• Device Connector: PCIe x8 Female
• Data Rate Support: Up to 16 GT/s (PCIe 4.0 x1), compatible with PCIe 3.0/2.0.
• Supported Protocols: PCIe 4.0/3.0/2.0.
• Impedance: 85? ±5% (differential).
• Cable Construction: Twin-axial cable (e.g., 3M™ Low Loss Twin Axial Cable) with fine signal wires (e.g., 31 AWG), offering flexibility and good bend radius.
• Cable Length: Common lengths include 250mm (0.25m), 300mm (0.3m), 500mm (0.5m). (Specify your preferred length when ordering.)
• Operating Temperature: -20°C to +85°C (aligns with common PCIe cable specs).
• Durability Rating: 2,500+ mating cycles (connectors).
• Shielding: Individual pair shielding with overall braid protection to minimize EMI.
• Contact Plating: Gold-plated contacts (0.76µm minimum gold thickness, per premium specs).
• Dielectric Withstanding Voltage: 300V AC.

Applications

• Server Upgrades: Integrating x8 devices (e.g., NICs, RAID controllers) into servers with limited PCIe slot availability.
• High-Density Data Centers: Ideal for server and storage configurations where space optimization is critical.
• Enterprise Equipment: Used in enterprise-level hardware for reliable expansion.
• Compact Workstations: Adding x8 expansion cards to small form factor systems.
• Test Benches: Temporary connectivity for testing and validating PCIe x8 devices.
• Data Recovery: Facilitating access to x8-based storage or accelerator cards.
• Embedded Systems: Industrial applications requiring x8 connectivity in space-constrained environments.

Compatibility Notes

This cable is designed for connecting PCIe x8 devices to PCIe 4.0 x1 host interfaces. Ensure the host system’s PCIe slot supports PCIe 4.0 or earlier versions (3.0/2.0) for backward compatibility. For best performance, connect the cable to the motherboard's primary PCIe x16 slot (usually closest to the CPU).
