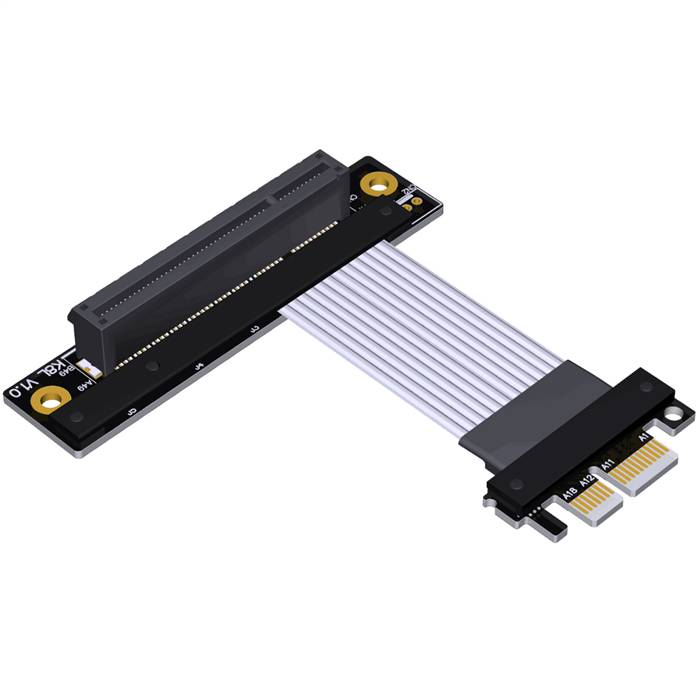

PCIe 4.0 x1 Male to x8 Female Up R/A Extension Cable, 85-ohm Low Impedance

The PCIe 4.0 x1 Male to x8 Female Up R/A Extension Cable is a high-performance interface extension solution designed to connect PCIe 4.0 x1 host interfaces to PCIe x8 devices using an upward right-angle (Up R/A) female connector. This cable features a PCIe 4.0 x1 male connector on one end and an upward right-angle PCIe x8 female connector on the other end, enabling seamless integration of x8 devices (e.g., expansion cards, NICs) into systems with limited PCIe slot availability or space constraints. Engineered for reliability and signal integrity, this cable utilizes 85? low-impedance twin-axial cable technology (e.g., 31 AWG signal wires, as seen in premium designs like 3M™ Twin Axial Cable) to minimize signal degradation and ensure high-speed data transfer. It is ideal for gaming rigs, compact workstations, server upgrades, and applications requiring flexible PCIe expansion with optimal airflow management and cable routing in dense configurations.

Features

• Interface Extension: Converts PCIe 4.0 x1 male interface to PCIe x8 female interface with upward right-angle orientation for space-efficient routing and vertical card mounting in compatible cases.
• High-Speed Performance: Supports PCIe 4.0 specifications with data transfer rates up to 16 GT/s (2 GB/s per lane for x1, providing bandwidth up to 16 Gbps+), ensuring PCIe 4.0 bandwidth for expansion cards.
• Upward Right-Angle Design: Space-saving upward right-angle (90°) x8 connector facilitates efficient cable routing, reduces cable stress, and improves airflow in compact systems.
• Low Impedance: Optimized 85? impedance matching (per PCIe 4.0 standards) ensures minimal signal degradation and superior signal integrity.
• Enhanced Compatibility: Compatible with PCIe 4.0/3.0/2.0 protocols and x8 devices (e.g., NICs, RAID cards), and works with both Intel and AMD motherboards.
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation.
• Durable Construction: High-quality materials (e.g., gold-plated contacts, braided shielding) ensure longevity and repeated use. Some premium designs feature EMI shielding (e.g., conductive tape) to reduce electromagnetic interference.
• Flexible & Foldable Design: Utilizes thin, flat twin-axial cable (e.g., 3M™ Low Loss Twin Axial Cable) that can be folded or bent without significantly affecting electrical performance, saving space and enabling unique packaging designs in dense servers.

Specifications

• Host Connector: PCIe 4.0 x1 Male
• Device Connector: PCIe x8 Female (Upward Right-Angle, 90°)
• Data Rate Support: Up to 16 GT/s (PCIe 4.0 x1), compatible with PCIe 3.0/2.0.
• Supported Protocols: PCIe 4.0/3.0/2.0.
• Impedance: 85? ±5% (differential).
• Cable Construction: Twin-axial cable (e.g., 3M™ Low Loss Twin Axial Cable) with fine signal wires (e.g., 31 AWG), offering flexibility and good bend radius.
• Cable Length: Common lengths include 250mm, 300mm, 500mm (0.25m, 0.3m, 0.5m). (Specify your preferred length when ordering.)
• Operating Temperature: -20°C to +85°C (or -20°C to +80°C, aligns with common PCIe cable specs).
• Durability Rating: 2,500+ mating cycles (connectors).
• Shielding: Individual pair shielding with overall braid protection (and possibly conductive tape) to minimize EMI.
• Contact Plating: Gold-plated contacts (0.76µm minimum gold thickness, per premium specs).
• Dielectric Withstanding Voltage: 300V AC.

Applications

• Gaming Rigs: Enabling expansion card installation in compact cases with vertical mounting and optimized airflow.
• Compact Workstations: Adding x8 expansion cards (e.g., NICs, capture cards) to small form factor systems.
• Server Upgrades: Integrating x8 devices into servers with limited PCIe slot availability.
• Test Benches: Temporary connectivity for testing and validating PCIe x8 devices.
• Data Recovery: Facilitating access to x8-based storage or accelerator cards.
• Embedded Systems: Industrial applications requiring x8 connectivity in space-constrained environments.
• High-Density Data Centers: Ideal for server and storage configurations where space optimization is critical.
• Enterprise Equipment: Used in enterprise-level hardware for reliable expansion.

Compatibility Notes

This cable is designed for connecting PCIe x8 devices to PCIe 4.0 x1 host interfaces. The upward right-angle x8 connector is ideal for environments where vertical space is limited and cable routing must avoid obstruction (e.g., above PCB trays). Ensure the host system’s PCIe slot supports PCIe 4.0 or earlier versions (3.0/2.0) for backward compatibility. For best performance, connect the cable to the motherboard's primary PCIe x16 slot (usually closest to the CPU).
