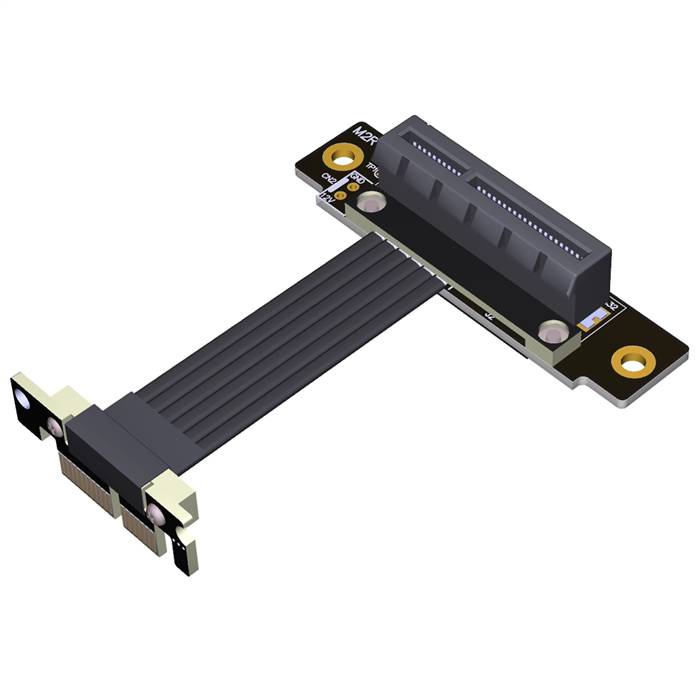

PCIe 4.0 x1 Male Up R/A to x4 Female Down R/A Extension Cable

The PCIe 4.0 x1 Male Up R/A to x4 Female Down R/A Extension Cable is a high-performance, dual-orientation interface extension solution designed to connect PCIe 4.0 x1 host interfaces to PCIe x4 devices. This cable features an upward right-angle (Up R/A) PCIe 4.0 x1 male connector on one end and a downward right-angle (Down R/A) PCIe x4 female connector on the other end. Engineered for complex routing scenarios in space-constrained environments, it utilizes 85? low-impedance twin-axial cable technology (e.g., 31 AWG signal wires, as utilized in premium 3M™ designs) to minimize signal degradation and ensure high-speed data transfer. It is ideal for server upgrades, compact workstations, high-density data centers, and applications requiring flexible PCIe expansion with optimized airflow management and intricate cable routing.

Features

• Dual-Orientation Interface Extension: Converts a PCIe 4.0 x1 male interface with an upward right-angle to a PCIe x4 female interface with a downward right-angle, facilitating complex routing above and below PCBs or components in cramped chassis.
• High-Speed Performance: Supports PCIe 4.0 specifications with data transfer rates up to 16 GT/s (16 Gbps, 2 GB/s per lane for x1), ensuring PCIe 4.0 bandwidth for various expansion cards.
• Low Impedance: Optimized 85? impedance matching (per PCIe 4.0 standards) ensures minimal signal degradation and superior signal integrity.
• Enhanced Compatibility: Compatible with PCIe 4.0/3.0/2.0 protocols and x4 devices (e.g., NVMe SSD adapters, NICs, RAID cards), and works with both Intel and AMD motherboards. Compatible with Card Electromechanical (CEM) connectors.
• Space-Optimized Design: The combination of upward and downward right-angle connectors allows for efficient cable routing in virtually any direction, maximizing space utilization in dense systems.
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation.
• Durable Construction: High-quality materials (e.g., gold-plated contacts per premium specs (min. 0.76µm gold thickness), braided shielding) ensure longevity and repeated use. Features EMI shielding (e.g., conductive tape) to reduce electromagnetic interference.
• Flexible Cable: Utilizes thin, flat twin-axial cable (e.g., 3M™ Low Loss Twin Axial Cable with 31 AWG wires) that supports tight bending radii for installation flexibility and can be folded without significantly affecting performance.

Specifications

• Host Connector: PCIe 4.0 x1 Male (Upward Right-Angle)
• Device Connector: PCIe x4 Female (Downward Right-Angle)
• Data Rate Support: Up to 16 GT/s (PCIe 4.0 x1), compatible with PCIe 3.0/2.0.
• Supported Protocols: PCIe 4.0/3.0/2.0.
• Impedance: 85? ±5% (differential).
• Cable Construction: Twin-axial cable (e.g., 3M™ Low Loss Twin Axial Cable) with fine signal wires (e.g., 31 AWG), offering flexibility and good bend radius.
• Cable Length: Common lengths include 250mm (0.25m), 300mm (0.3m), 500mm (0.5m). (Specify your preferred length when ordering.)
• Operating Temperature: -20°C to +85°C (aligns with common PCIe cable specs).
• Durability Rating: 2,500+ mating cycles (connectors).
• Shielding: Individual pair shielding with overall braid protection to minimize EMI.
• Contact Plating: Gold-plated contacts (0.76µm minimum gold thickness, per premium specs).
• Dielectric Withstanding Voltage: 300V AC.

Applications

• Server Upgrades: Integrating x4 devices (e.g., NVMe adapters, NICs) into servers with limited PCIe slot availability and complex spatial constraints.
• High-Density Data Centers: Ideal for server and storage configurations where extreme space optimization and specific cable routing paths (above and below boards) are critical.
• Enterprise Equipment: Used in enterprise-level hardware for reliable expansion where unique connector orientations are required.
• Compact Workstations & Gaming Rigs: Adding x4 expansion cards to small form factor systems where specific cable exit directions are needed for optimal airflow and aesthetics.
• Test Benches: Temporary connectivity for testing and validating PCIe x4 devices with specific orientation requirements.
• Embedded Systems: Industrial applications requiring x4 connectivity in space-constrained environments with unique mounting and routing challenges.

Compatibility Notes

This cable is designed for connecting PCIe x4 devices to PCIe 4.0 x1 host interfaces. The upward right-angle x1 male connector is typically inserted into the motherboard slot, while the downward right-angle x4 female connector receives the expansion card. Ensure the host system’s PCIe slot supports PCIe 4.0 or earlier versions (3.0/2.0) for backward compatibility. For best performance, connect the cable to the motherboard's primary PCIe x16 slot (usually closest to the CPU).
