PCIe 4.0 x4 Male to M.2 NVMe Key M 22110 SSD Extension Cable, 85-ohm Low Impedance

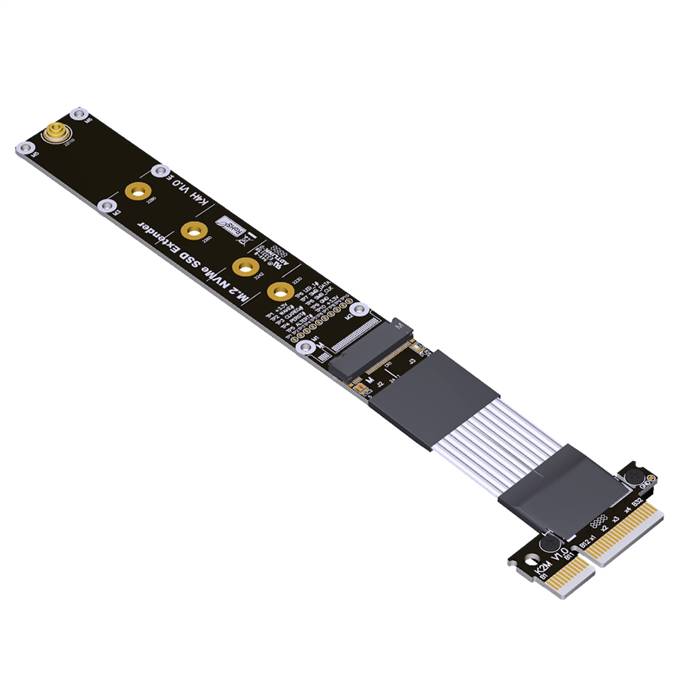

The PCIe 4.0 x4 Male to M.2 NVMe Key M 22110 SSD Extension Cable is a high-performance interconnect solution engineered for demanding enterprise storage, data center applications, and high-performance workstations . This cable provides a direct, high-fidelity electrical extension from a PCIe 4.0 x4 host slot to a remote M.2 NVMe SSD, specifically supporting the full-length 22110 (110mm) form factor commonly used in enterprise-grade SSDs . It is meticulously designed to preserve signal integrity at high data rates, enabling flexible placement of high-speed NVMe solid-state drives for optimal thermal management or space utilization without sacrificing performance .

Features

• Precision Impedance Control: Engineered with a consistent 85-ohm low impedance profile to minimize signal reflections and ensure data integrity at PCIe 4.0 speeds .
• Extended SSD Support: Uniquely accommodates M.2 NVMe SSDs in the 22110 length, in addition to standard 2280, 2260, 2242, and 2230 sizes, catering to high-capacity enterprise drives .
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering a total bandwidth of up to 64 Gbps for maximum NVMe SSD performance .
• Robust Construction: Utilizes high-quality shielded cabling with effective EMI/RFI protection to ensure stable operation in electrically noisy environments .
• Secure Connection System: Features durable, latching connectors to guarantee a reliable mating cycle and prevent accidental disconnection .
• Thermal Management Enabler: Allows for strategic relocation of M.2 SSDs to areas with better airflow, aiding in preventing thermal throttling during sustained workloads .

Specifications

• Host Connector: PCI Express 4.0 x4 Male (x16 mechanical form factor, open-ended)
• Device Connector: M.2 Key M (M-Key) Female, supporting 22110 length
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: Up to 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 64 Gbps (x4 Lanes)
• Impedance: 85? ±5%
• Cable Type: Shielded Twisted Pair (STP) with overall braid
• Supported SSD Lengths: 2230, 2242, 2260, 2280, 22110
• Cable Length: Common options include 0.5m, 0.8m, and 1.0m
• Operating Temperature: -20°C to +70°C
• Durability Rating: Minimum 5,000 mating cycles

Applications

• Enterprise Server and Data Center Infrastructure: Ideal for integrating high-capacity 22110 NVMe SSDs into rack servers and storage arrays where direct motherboard mounting is not feasible .
• High-Performance Computing (HPC) and AI: Provides essential flexibility for data-intensive applications like machine learning and data mining, requiring both high speed and large storage capacity .
• Storage Expansion and Testing: Used in development labs and testing environments for validating performance of various M.2 SSDs, including the full-length 22110 format .
• Workstation Storage Solutions: Allows professional workstations to utilize enterprise-grade, high-capacity M.2 NVMe SSDs with optimal cooling .
• Legacy System Upgrades: Facilitates the addition of modern, high-speed PCIe 4.0 NVMe storage to systems with available PCIe slots .
