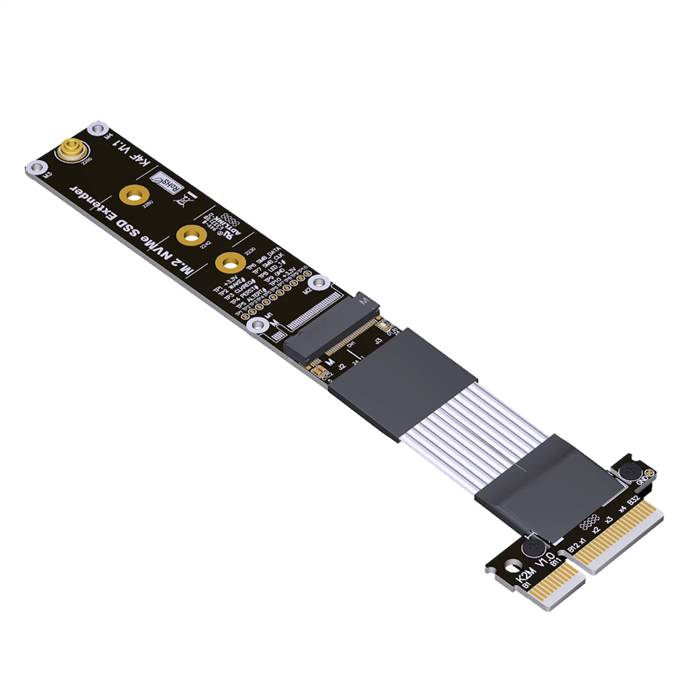

PCIe 4.0 x4 Male to M.2 NVMe Key M 2280 SSD Extension Cable, 85-ohm Low Impedance

The PCIe 4.0 x4 Male to M.2 NVMe Key M 2280 SSD Extension Cable is a high-performance interconnect solution designed for enterprise storage, data centers, and high-performance computing environments . This cable provides a direct electrical extension from a PCIe 4.0 x4 host slot to a remote M.2 NVMe SSD, specifically supporting the common 2280 form factor . It is engineered to deliver the full bandwidth of PCIe 4.0, supporting high-speed data transmission for NVMe SSDs while enabling flexible drive placement for improved thermal management or space-constrained configurations .

Features

• Precision 85-ohm Impedance: Engineered with controlled low impedance to minimize signal reflections and ensure data integrity at PCIe 4.0 speeds .
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering a total bandwidth of up to 64 Gbps for maximum NVMe SSD performance .
• Dedicated 2280 SSD Support: Designed for the widely used M.2 2280 form factor, with compatibility for other lengths such as 2230, 2242, and 2260 through adjustable mounting .
• Robust Construction: Utilizes quality shielded cabling, such as FPC (Flexible Printed Circuit) or PVC-insulated cables, with effective EMI/RFI protection for stable operation .
• Secure Connection System: Features durable, latching connectors to ensure reliable mating and prevent accidental disconnection .
• Flexible Cable Design: The cable is lightweight, flexible, and shock-resistant, facilitating easier routing within computer cases .
• Protocol Specific: Functions as an extender, supporting NVMe to NVMe or SATA to SATA extension from the host to the target device, but does not perform protocol conversion between NVMe and SATA .

Specifications

• Host Connector: PCI Express 4.0 x4 Male (often with an x16 mechanical form factor for broad compatibility)
• Device Connector: M.2 Key M (M-Key) Female, supporting 2280 SSD length
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification, with backward compatibility to PCIe 3.0
• Data Rate: Up to 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 64 Gbps (x4 Lanes)
• Impedance: 85? ±5%
• Cable Type: Shielded flexible cable (e.g., FPC)
• Supported SSD Lengths: 2280 (primary), often also compatible with 2230, 2242, and 2260
• Cable Length: Common options include 15cm, 30cm, and 40cm
• Operating Temperature: Typically 0°C to +40°C or similar range depending on the product variant
• Durability Rating: Minimum of 5,000 mating cycles

Applications

• High-Density Server Deployment: Ideal for rack servers and storage arrays where direct motherboard mounting of M.2 SSDs is not feasible, allowing for better airflow and cooling .
• Data Center and Enterprise Storage: Facilitates the integration of high-speed NVMe storage into existing server infrastructure for hyperscale environments .
• High-Performance Workstations: Allows professional workstations to utilize enterprise-grade M.2 NVMe SSDs with optimal placement for thermal management .
• Test and Development Labs: Useful for validating performance of M.2 NVMe SSDs, providing a flexible connection for frequent drive swapping .
• System Upgrades: Enables the addition of modern PCIe 4.0 NVMe storage to systems with available PCIe slots but lacking native M.2 connectors .
• Space-Constrained Environments: Suitable for compact systems and thin clients where internal space is limited, allowing the SSD to be positioned remotely .
