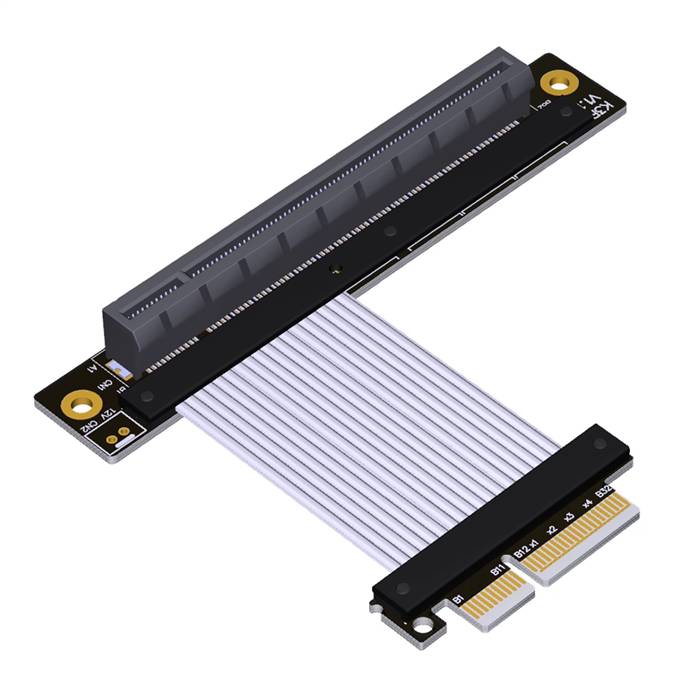

PCIe 4.0 x4 Male to x16 Female Down R/A Extension Cable, 85-ohm Low Impedance

The PCIe 4.0 x4 Male to x16 Female Down R/A Extension Cable is a high-performance interconnect solution designed for professional computing environments requiring reliable PCIe signal extension with specific mechanical orientation. This cable features a standard x4 male connector that interfaces with the motherboard slot, extending to an x16 female connector in a Down Right-Angle configuration. The down-angled design facilitates optimal cable routing in space-constrained chassis and server racks where clearance above the connector is limited. Engineered with precise 85-ohm low impedance characteristics, this cable maintains superior signal integrity at PCIe 4.0 data rates, making it ideal for extending graphics cards, storage controllers, and other PCIe 4.0 adapters in demanding applications.

Features

• Optimized Mechanical Design: Down Right-Angle female connector enables efficient cable management in low-clearance environments and improves chassis airflow
• Electrical x4 Mechanical x16 Compatibility: The x16 female connector accommodates full-size expansion cards while operating electrically as an x4 link
• Precision Impedance Control: 85-ohm low impedance design ensures minimal signal reflection and maximum signal integrity at high data rates
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 64 Gbps
• Enhanced Signal Integrity: Advanced shielding technology with multiple layers of protection against EMI/RFI interference
• Secure Connection: Robust connector design with secure mating interface ensures reliable operation in vibration-prone environments
• High-Quality Materials: Durable construction with gold-plated contacts for optimal conductivity and corrosion resistance

Specifications

• Host Connector: PCI Express 4.0 x4 Male
• Target Connector: PCIe x16 Female, Down Right-Angle orientation, electrically x4
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 64 Gbps (x4 lanes)
• Characteristic Impedance: 85? ±5%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 250mm, 300mm, 500mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Rating: 0.5A per pin

Applications

• High-Density Server Racks: Ideal for 1U/2U servers where vertical space is limited and down-angled connectors are necessary
• Data Center Infrastructure: Perfect for hyperscale computing environments requiring specific connector orientations for optimal cable management
• GPU Mining Rigs: Enables efficient graphics card arrangement in cryptocurrency mining operations with space constraints
• Industrial Computing Systems: Suitable for industrial PCs and embedded systems where reliable connections in vibration-prone environments are critical
• Test and Measurement Equipment: Essential for laboratory environments requiring flexible PCIe card positioning for validation testing
• Broadcast and Video Production: Supports high-performance video capture and processing cards in professional media production setups
• Network Appliance Expansion: Facilitates addition of network interface cards and security processors in networking equipment
• Custom Workstation Builds: Allows creative card placement solutions in professional workstations and high-performance computing systems
