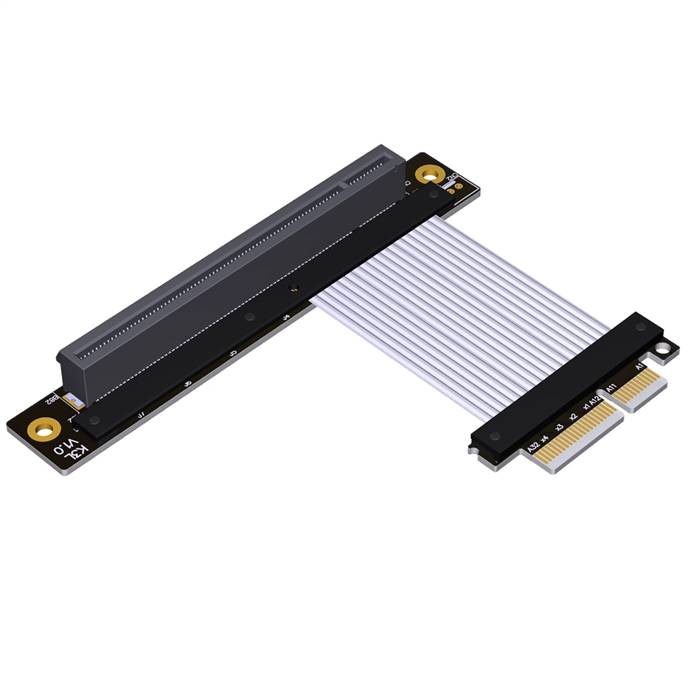

PCIe 4.0 x4 Male to x16 Female Up R/A Extension Cable, 85-ohm Low Impedance

The PCIe 4.0 x4 Male to x16 Female Up R/A Extension Cable is a high-performance interconnect solution designed for professional computing environments requiring reliable PCIe 4.0 signal extension with optimized connector orientation. This cable features a standard x4 male connector that interfaces with motherboard slots, extending to an x16 female connector in an Up Right-Angle configuration that enables superior cable management and space efficiency. Engineered with precise 85-ohm low impedance characteristics, this extension cable maintains signal integrity at PCIe 4.0 data rates while providing flexible expansion capabilities for graphics cards, storage controllers, and various high-speed adapters in demanding applications.

Features

• Optimized Connector Orientation: Up Right-Angle female connector design facilitates efficient cable routing and improves chassis airflow management
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 64 Gbps for high-speed devices
• Precision Impedance Control: 85-ohm low impedance design ensures minimal signal reflection and maximum signal integrity at high data rates
• Mechanical Compatibility: x16 female connector accommodates full-size expansion cards while operating electrically as x4 lanes
• Enhanced Shielding: Multi-layer shielding construction provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI)
• Secure Connection Interface: Robust connector design with gold-plated contacts ensures reliable mating and stable electrical performance
• High-Quality Construction: Durable materials and precision manufacturing ensure long-term reliability in continuous operation environments

Specifications

• Host Connector: PCI Express 4.0 x4 Male
• Target Connector: PCIe x16 Female, Up Right-Angle orientation, electrically x4
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 64 Gbps (x4 lanes)
• Characteristic Impedance: 85? ±5%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 250mm, 300mm, 500mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Rating: 0.5A per pin, 30V AC/DC

Applications

• High-Density Server Configurations: Ideal for rack servers and data center equipment where space optimization and cable management are critical
• GPU Expansion Solutions: Perfect for workstations, mining operations, and AI computing systems requiring flexible graphics card placement
• Storage System Expansion: Enables connection of storage controllers and RAID cards in enterprise storage environments
• Test and Development Laboratories: Essential for validation environments requiring flexible PCIe card positioning and frequent device swapping
• Industrial Computing Systems: Suitable for industrial automation and control systems where reliable connections and specific orientations are required
• Broadcast and Media Production: Supports high-performance video processing and capture cards in professional media environments
• Network Appliance Expansion: Facilitates addition of network interface cards and security processors in networking equipment
• Custom PC Builds: Enables creative system configurations and upgrades for enthusiasts and professional users requiring specific connector orientations
