PCIe 4.0 x4 Male to x4 Female Up R/A Extension Cable, 85-ohm Low Impedance

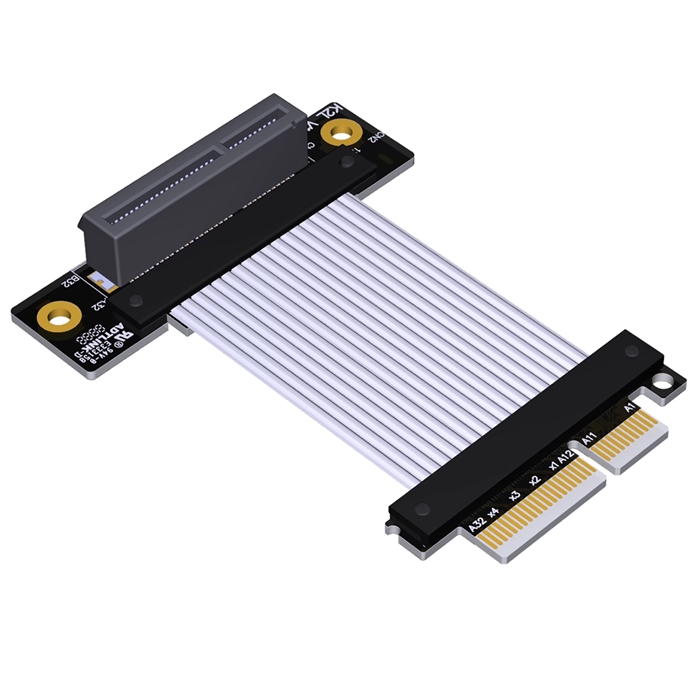

The PCIe 4.0 x4 Male to x4 Female Down R/A Extension Cable is a high-performance interconnect solution designed for space-constrained computing environments requiring reliable PCIe 4.0 signal extension with specific connector orientation. This cable features a standard male connector that interfaces with motherboard slots, extending to a Down Right-Angle female connector that enables optimal cable routing in compact configurations. Engineered with precise 85-ohm low impedance characteristics, this extension cable maintains signal integrity at PCIe 4.0 data rates while providing flexible expansion capabilities for various high-speed devices in demanding applications where spatial efficiency is critical.

Features

• Optimized Connector Orientation: Down Right-Angle female connector design facilitates efficient cable management in low-clearance environments and improves chassis space utilization
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 64 Gbps for high-speed devices
• Precision Impedance Control: 85-ohm low impedance design ensures minimal signal reflection and maximum signal integrity at high data rates
• Enhanced Shielding: Multi-layer shielding construction provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI)
• Secure Connection Interface: Robust connector design with gold-plated contacts ensures reliable mating and stable electrical performance
• Standard x4 Compatibility: Maintains consistent x4 electrical configuration suitable for various PCIe 4.0 devices
• High-Quality Construction: Durable materials and precision manufacturing ensure long-term reliability in continuous operation environments

Specifications

• Host Connector: PCI Express 4.0 x4 Male, standard orientation
• Target Connector: PCIe x4 Female, Down Right-Angle orientation
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 64 Gbps (x4 lanes)
• Characteristic Impedance: 85? ±5%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Rating: 0.5A per pin, 30V AC/DC

Applications

• High-Density Server Configurations: Ideal for rack servers and data center equipment where space optimization and downward-angled cable management are critical
• Storage System Expansion: Perfect for connecting storage controllers and RAID cards in enterprise storage environments with space constraints
• Test and Development Laboratories: Essential for validation environments requiring flexible PCIe card positioning with specific downward orientation
• Industrial Computing Systems: Suitable for industrial automation and control systems where reliable connections and specific orientations are required
• Embedded Solutions: Provides expansion capabilities for compact embedded systems and single-board computers with space limitations
• Telecommunications Equipment: Facilitates expansion card integration in telecom infrastructure requiring specific connector orientations
• Network Appliance Integration: Supports network interface cards and security processors in networking equipment with spatial constraints
• Custom Computing Projects: Enables unique system configurations for specialized applications requiring downward-angled connector orientation
