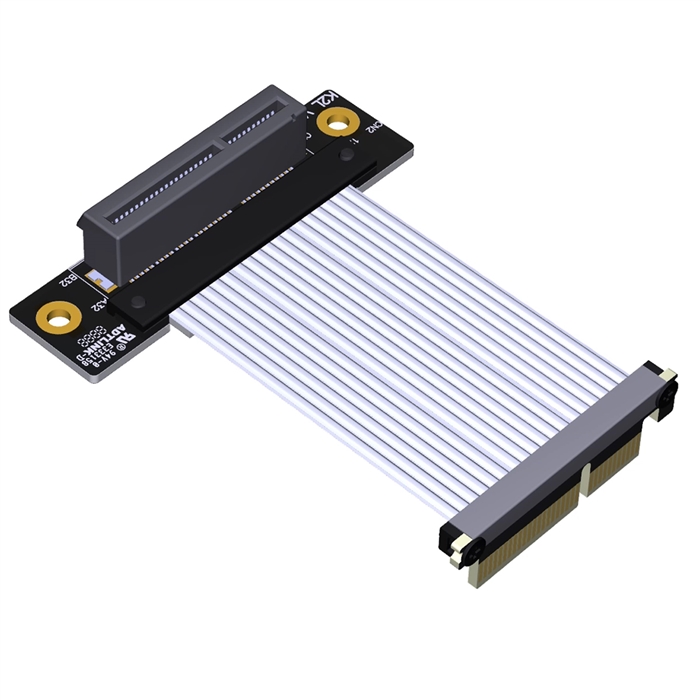

PCIe 4.0 x4 Male Down R/A to x4 Female Up R/A Extension Cable, 85-ohm Low Impedance

The PCIe 4.0 x4 Male Down R/A to x4 Female Up R/A Extension Cable is a specialized high-performance interconnect solution designed for complex computing environments requiring specific dual-orientation connector configurations. This cable features a Down Right-Angle male connector combined with an Up Right-Angle female connector, providing optimal cable routing capabilities in space-constrained configurations. Engineered with 85-ohm low impedance characteristics, this extension cable maintains PCIe 4.0 signal integrity while addressing challenging spatial requirements in high-density server racks, test environments, and specialized computing applications where precise connector orientation is critical for system integration.

Features

• Dual Orientation Design: Down Right-Angle male connector and Up Right-Angle female connector enable optimal cable routing in complex spatial configurations
• Precision 85-ohm Impedance: Low impedance design ensures minimal signal reflection and maximum signal integrity at PCIe 4.0 speeds
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 64 Gbps
• Enhanced Shielding: Multi-layer shielding construction provides excellent protection against electromagnetic interference
• Matched x4 Interface: Maintains consistent x4 electrical configuration throughout the extension path
• Secure Connection System: Robust connectors with reliable mating mechanisms ensure stable connections in various orientations
• Space-Optimized Solution: Dual right-angle design addresses clearance challenges in high-density installations

Specifications

• Host Connector: PCIe 4.0 x4 Male, Down Right-Angle orientation
• Target Connector: PCIe x4 Female, Up Right-Angle orientation
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 64 Gbps (x4 lanes)
• Characteristic Impedance: 85? ±5%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• High-Density Server Racks: Ideal for 1U/2U server configurations requiring specific down and up angle orientations for optimal space utilization
• Data Center Infrastructure: Perfect for hyperscale environments where precise connector orientations are critical for cable management
• Test and Development Laboratories: Essential for validation environments requiring flexible connector orientations for device testing and prototyping
• Storage Array Configurations: Enables complex storage system setups with specific spatial and orientation requirements
• Industrial Automation Systems: Suitable for industrial control equipment requiring reliable connections in confined spaces with orientation constraints
• Telecommunications Equipment: Supports network infrastructure installations with challenging spatial constraints and specific routing needs
• Embedded Computing Solutions: Ideal for compact embedded systems requiring specific connector angles for system integration
• Custom Computing Applications: Enables unique configurations for system integrators dealing with complex spatial and orientation requirements
