PCIe 4.0 x8 Male to x16 Female Up R/A Extension Cable

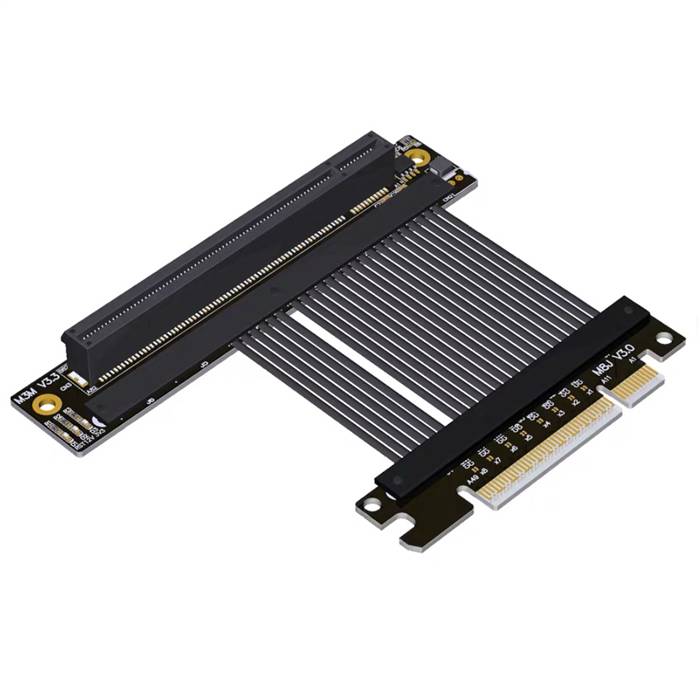

The PCIe 4.0 x8 Male to x16 Female Up R/A Extension Cable is a high-performance interconnect solution designed for professional computing environments requiring reliable PCIe 4.0 signal extension with upward-oriented connector configuration. This cable features a standard x8 male connector that interfaces with motherboard slots, extending to an x16 female connector in an Up Right-Angle orientation that enables superior cable management and space efficiency. Engineered to maintain signal integrity at PCIe 4.0 data rates, this extension cable provides flexible expansion capabilities for graphics cards, storage controllers, and various high-speed adapters in demanding applications where upward-angled connections optimize chassis airflow and cable routing.

Features

• Space-Optimized Connector Design: Up Right-Angle female connector facilitates efficient cable routing and improves chassis airflow management in high-density configurations
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 128 Gbps for connected high-speed devices
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission without signal degradation at maximum speeds
• Mechanical x16 Electrical x8 Compatibility: x16 female connector accommodates full-size expansion cards while operating electrically as x8 lanes
• Robust Shielding Construction: Multi-layer shielding provides comprehensive protection against electromagnetic and radio frequency interference
• Secure Connection Interface: High-quality connectors with reliable mating mechanisms ensure stable operation in various orientations
• Universal Application Support: Compatible with various PCIe 4.0 devices including GPUs, RAID controllers, and network adapters

Specifications

• Host Connector: PCI Express 4.0 x8 Male
• Target Connector: PCIe x16 Female, Up Right-Angle orientation, electrically x8
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 128 Gbps (x8 lanes)
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 250mm, 300mm, 500mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• High-Density Server Configurations: Ideal for rack-mounted servers requiring upward-angled connectors for optimal space utilization and cable management
• Data Center Infrastructure: Perfect for hyperscale environments where specific connector orientations are critical for efficient equipment layout
• GPU Expansion Setups: Suitable for graphics card extension in workstations, mining operations, and AI computing systems with upward routing requirements
• Storage System Expansion: Enables flexible connection of storage controllers and RAID cards in enterprise storage environments
• Test and Development Laboratories: Essential for validation environments requiring upward-oriented connections for device testing and prototyping
• Industrial Computing Systems: Provides reliable expansion for PCIe devices in industrial automation equipment with specific spatial requirements
• Broadcast and Media Production: Supports professional video and audio processing cards in broadcast environments requiring optimized cable routing
• Custom Computing Solutions: Enables unique system configurations for enthusiasts and system integrators dealing with specific upward connector orientation needs
