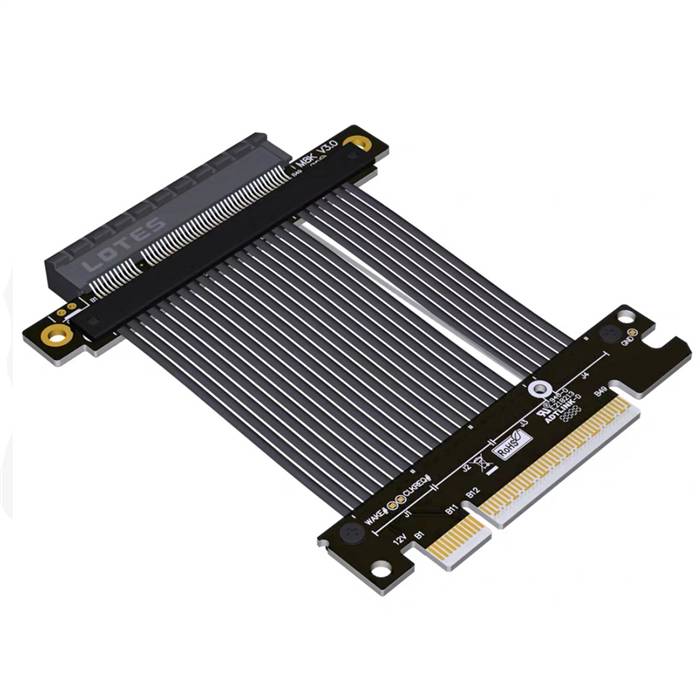

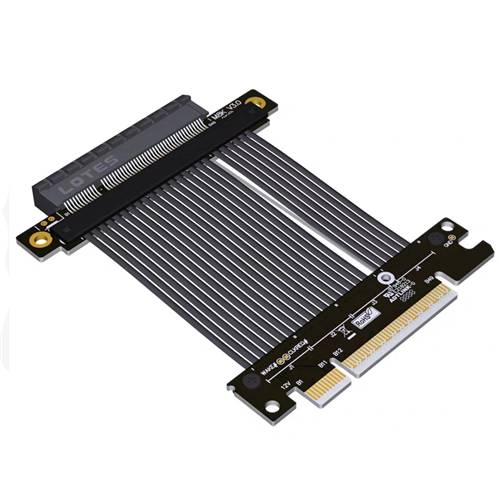

PCIe 4.0 x8 Male to x8 Female Extension Cable, Slim Version

The PCIe 4.0 x8 Male to x8 Female Extension Cable, Slim Version is a high-performance interconnect solution engineered for modern data centers, enterprise servers, and high-performance computing environments where space optimization is critical. This cable provides a reliable electrical pathway from a host system's PCIe 4.0 x8 slot to a peripheral device, maintaining signal integrity while enabling flexible component placement. The slim form factor with thin ribbon cable construction ensures minimal space consumption and easy routing even in densely packed server racks and chassis configurations.

Features

• Slim Form Factor: Thin ribbon cable construction enables easy routing in high-density server and rack configurations
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 128 Gbps
• Space-Optimized Design: Flexible cable with tight bend radius facilitates unique packaging designs in confined spaces
• Enhanced Signal Integrity: Precision engineering with 85? impedance matching ensures stable data transmission without degradation
• Robust Construction: Shielded cable design with gold-plated contacts provides excellent protection against EMI/RFI interference
• Secure Connection System: Reliable latching mechanism ensures stable mating and prevents accidental disconnection
• Broad Compatibility: Compatible with PCIe 4.0 standards while maintaining backward compatibility with previous generations

Specifications

• Host Connector: PCI Express 4.0 x8 Male
• Target Connector: PCIe x8 Female
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 128 Gbps (x8 lanes)
• Characteristic Impedance: 85?
• Cable Type: Shielded twin axial ribbon cable
• Cable Construction: Low-loss, slim ribbon design
• Cable Length: 250mm, 300mm, 500mm standard options
• Operating Temperature: -20°C to 80°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated contacts

Applications

• High-Density Data Centers: Ideal for hyperscale computing environments requiring flexible component placement in space-constrained racks
• Enterprise Server Configurations: Perfect for rack-mounted servers where cable management and airflow optimization are critical
• Storage Area Networks: Enables flexible connection of storage controllers and expansion cards in enterprise storage systems
• High-Performance Computing: Supports computational workloads requiring maximum PCIe 4.0 bandwidth with optimized space utilization
• Test and Development Laboratories: Essential for validation environments requiring frequent hardware reconfiguration
• Telecommunications Equipment: Provides reliable expansion for network infrastructure components with space limitations
• Industrial Computing Systems: Suitable for industrial automation equipment requiring robust connections in confined spaces
• Custom Computing Solutions: Enables unique system configurations for enthusiasts and system integrators dealing with spatial constraints
