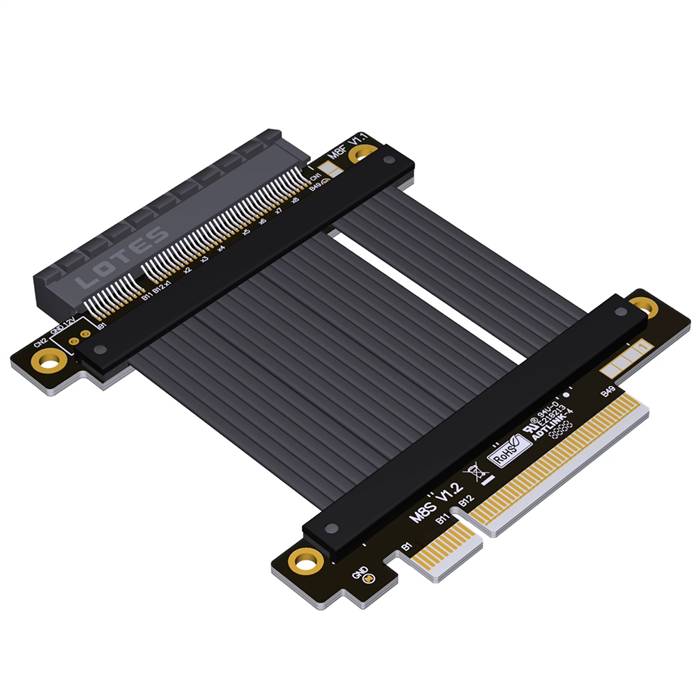

PCIe 4.0 x8 Male to x8 Female Extension Cable

The PCIe 4.0 x8 Male to x8 Female Extension Cable is a high-performance interconnect solution designed for expanding PCI Express connectivity in modern computing systems. This cable provides a reliable electrical pathway from a motherboard's PCIe 4.0 x8 slot to a peripheral device, maintaining signal integrity while offering flexible installation options. Engineered to deliver stable performance at PCIe 4.0 speeds, this extension solution is ideal for storage controllers, network adapters, and various high-speed devices requiring reliable signal extension in enterprise, data center, and high-performance computing environments.

Features

• Full PCIe 4.0 Compliance: Supports data transfer rates up to 16 GT/s per lane, delivering total bandwidth of 128 Gbps while maintaining backward compatibility with PCIe 3.0 devices
• Enhanced Signal Integrity: Multi-layer shielding with individual pair protection and overall braid shielding minimizes EMI/RFI interference
• Secure Connection Design: High-quality connectors with gold-plated contacts and secure mating mechanisms ensure reliable connections
• Universal Compatibility: Matched x8 interface maintains consistent electrical configuration suitable for various PCIe 4.0 devices
• Flexible Application Support: Suitable for storage controllers, network adapters, and specialized computing cards in diverse environments
• Robust Construction: Durable cable jacket and strain relief features provide long-term reliability in continuous operation
• Easy Installation: Simple plug-and-play setup requires no additional drivers or software configuration

Specifications

• Host Connector: PCI Express 4.0 x8 Male
• Target Connector: PCIe x8 Female
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane
• Total Bandwidth: 128 Gbps (x8 lanes)
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 250mm, 300mm, 500mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Current Rating: 0.5A per pin

Applications

• Enterprise Server Systems: Ideal for rack servers requiring extended PCIe connectivity between system components
• Data Center Infrastructure: Perfect for hyperscale environments needing high-speed extension between servers and peripheral devices
• Storage Array Expansion: Enables flexible connection of storage controllers and RAID cards in enterprise storage environments
• High-Performance Computing: Supports computational workloads requiring maximum PCIe 4.0 bandwidth with reliable extension
• Test and Development Environments: Essential for hardware validation labs requiring flexible device positioning and signal integrity testing
• Industrial Computing Systems: Suitable for industrial automation equipment requiring reliable PCIe extension in controlled environments
• Telecommunications Equipment: Supports network infrastructure requiring high-speed connectivity between system components
• Custom Computing Solutions: Provides flexibility for unique system configurations and specialized computing applications
