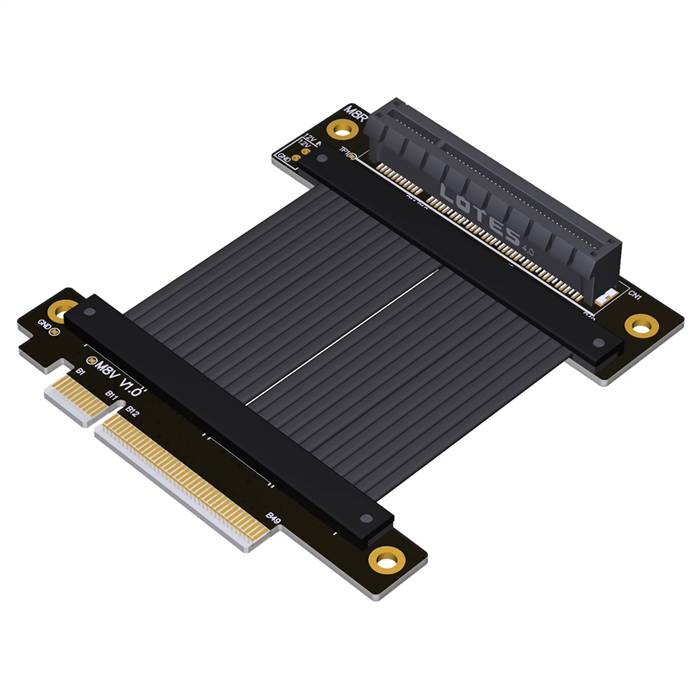

PCIe 4.0 x8 Male to x8 Female Down R/A Extension Cable

The PCIe 4.0 x8 Male to x8 Female Down R/A Extension Cable is a specialized high-performance interconnect solution designed for space-constrained computing environments requiring reliable PCIe 4.0 signal extension with downward-oriented connector configuration. This cable features a standard x8 male connector that interfaces with motherboard slots, extending to an x8 female connector in a Down Right-Angle orientation that enables optimal space utilization in compact chassis and server rack configurations. Engineered to maintain signal integrity at PCIe 4.0 data rates, this extension cable provides flexible expansion capabilities for various high-speed devices in demanding applications where downward-angled connections are essential for clearance and cable management.

Features

• Space-Optimized Connector Design: Down Right-Angle female connector facilitates installation in low-clearance environments and improves chassis space utilization
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 128 Gbps for connected high-speed devices
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission without signal degradation at maximum speeds
• Secure Connection Interface: Robust connector design with reliable mating mechanisms ensures stable electrical performance in various orientations
• Matched x8 Interface: Maintains consistent x8 electrical configuration suitable for various PCIe 4.0 devices
• Enhanced Shielding: Multi-layer construction provides excellent protection against electromagnetic interference and signal crosstalk
• High-Quality Construction: Durable materials and precision manufacturing ensure long-term reliability in continuous operation

Specifications

• Host Connector: PCI Express 4.0 x8 Male
• Target Connector: PCIe x8 Female, Down Right-Angle orientation
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 128 Gbps (x8 lanes)
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 250mm, 300mm, 500mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• High-Density Server Racks: Ideal for 1U/2U servers where downward-angled connectors are necessary for optimal space utilization and clearance
• Data Center Infrastructure: Perfect for hyperscale computing environments requiring specific connector orientations for efficient cable management
• Storage System Expansion: Enables connection of storage controllers and RAID cards in enterprise environments with space constraints
• Industrial Computing Systems: Provides reliable expansion for PCIe devices in industrial control systems with confined spaces
• Test and Development Environments: Essential for validation setups requiring downward-angled connections for device testing and prototyping
• Embedded Solutions: Supports compact embedded systems with specific spatial and orientation requirements
• Network Appliance Integration: Suitable for network interface cards and security processors in networking equipment with space limitations
• Custom System Integration: Enables unique configuration solutions for system integrators dealing with space constraints and specific downward orientation needs
