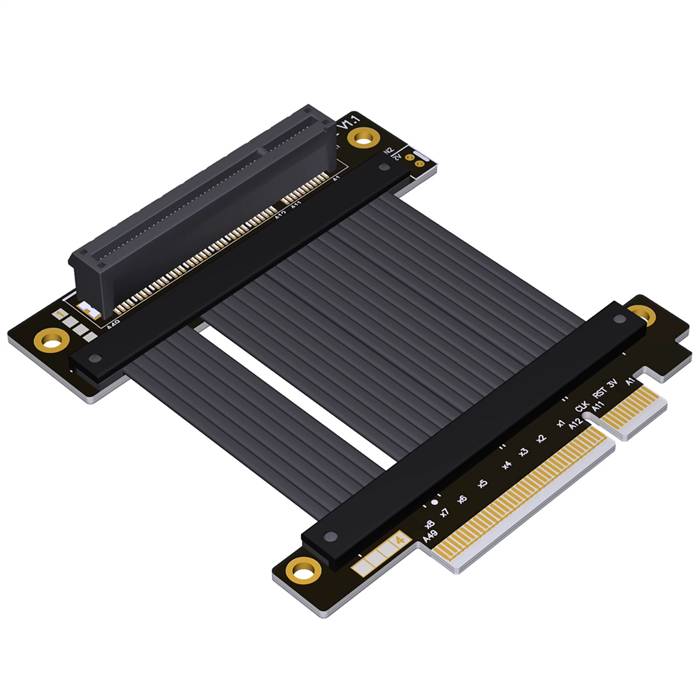

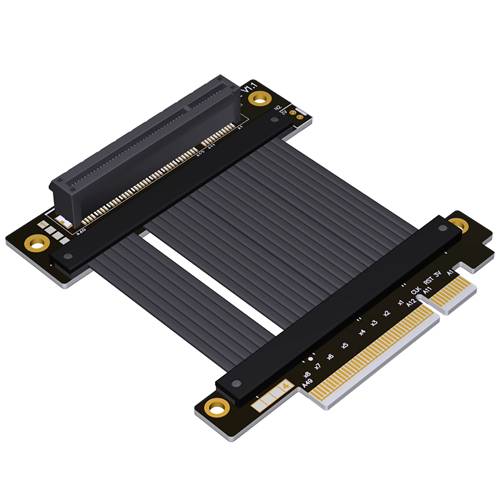

PCIe 4.0 x8 Male to x8 Female Up R/A Extension Cable

The PCIe 4.0 x8 Male to x8 Female Up R/A Extension Cable is a high-performance interconnect solution designed for professional computing environments requiring reliable PCIe 4.0 signal extension with upward-oriented connector configuration. This cable features a standard x8 male connector that interfaces with motherboard slots, extending to an x8 female connector in an Up Right-Angle orientation that enables superior cable management and space efficiency. Engineered to maintain signal integrity at PCIe 4.0 data rates, this extension cable provides flexible expansion capabilities for various high-speed devices in demanding applications where upward-angled connections optimize chassis airflow and cable routing.

Features

• Optimized Connector Orientation: Up Right-Angle female connector design facilitates efficient cable routing and improves chassis airflow management
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 128 Gbps for high-speed devices
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission without signal degradation
• Secure Connection Interface: Robust connector design with reliable mating mechanisms ensures stable operation in various orientations
• Matched x8 Interface: Maintains consistent x8 electrical configuration suitable for various PCIe 4.0 devices
• Enhanced Shielding: Multi-layer shielding construction provides excellent protection against electromagnetic interference
• High-Quality Construction: Durable materials and precision manufacturing ensure long-term reliability in continuous operation

Specifications

• Host Connector: PCI Express 4.0 x8 Male
• Target Connector: PCIe x8 Female, Up Right-Angle orientation
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 128 Gbps (x8 lanes)
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 250mm, 300mm, 500mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• High-Density Server Configurations: Ideal for rack servers and data center equipment where upward-angled connectors optimize space utilization
• Storage System Expansion: Perfect for connecting storage controllers and RAID cards in enterprise storage environments
• Test and Development Laboratories: Essential for validation environments requiring flexible PCIe card positioning with upward orientation
• Industrial Computing Systems: Suitable for industrial automation and control systems where reliable connections and specific orientations are required
• Network Appliance Integration: Supports network interface cards and security processors in networking equipment
• Embedded Solutions: Provides expansion capabilities for compact embedded systems and single-board computers
• Telecommunications Equipment: Facilitates expansion card integration in telecom infrastructure requiring specific connector orientations
• Custom Computing Projects: Enables unique system configurations for specialized applications requiring upward-angled connector orientation
