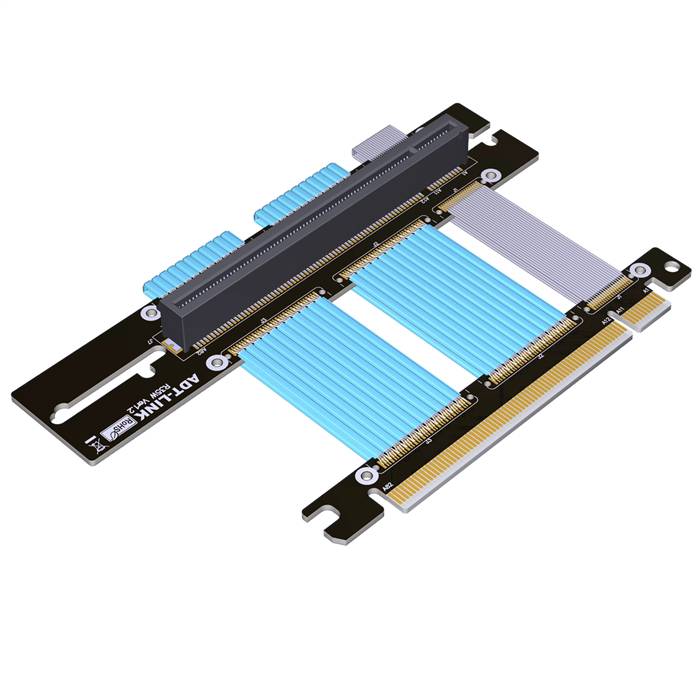

PCIe 4.0 x16 Male to x16 Female R/A Blue Extension Cable

The PCIe 4.0 x16 Male to x16 Female R/A Blue Extension Cable is a high-performance interconnect solution designed for professional computing environments requiring reliable PCIe 4.0 signal extension with right-angle connector orientation and visual customization. This cable features a standard x16 male connector that interfaces with motherboard slots, extending to an x16 female connector in a Right-Angle configuration with a distinctive blue cable jacket. Engineered to maintain signal integrity at PCIe 4.0 data rates, this extension cable provides flexible expansion capabilities for graphics cards and other high-speed devices while offering improved cable management and aesthetic customization for themed builds and professional installations.

Features

• Right-Angle Connector Orientation: R/A female connector design facilitates efficient cable routing and improves chassis space utilization in constrained environments
• Distinctive Blue Aesthetic: Blue cable jacket provides visual differentiation and complements themed system builds
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 256 Gbps for high-speed devices
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission without signal degradation
• Secure Connection Interface: Robust connectors with reliable mating mechanisms ensure stable operation in various orientations
• Matched x16 Interface: Maintains full x16 electrical configuration suitable for graphics cards and other bandwidth-intensive devices
• High-Quality Construction: Durable blue PVC jacket with strain relief features ensures long-term reliability

Specifications

• Host Connector: PCI Express 4.0 x16 Male
• Target Connector: PCIe x16 Female, Right-Angle orientation
• Cable Color: Blue
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 256 Gbps (x16 lanes)
• Cable Type: Shielded twisted pair with blue PVC jacket
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles

Applications

• Themed PC Builds: Ideal for custom computer builds where color coordination and aesthetic presentation are important
• High-Density Server Configurations: Perfect for rack servers requiring right-angle connectors for optimal space utilization and cable management
• Gaming Systems: Suitable for gaming PCs where visual customization and performance are equally valued
• Workstation Expansion: Enables flexible graphics card placement in professional workstations with specific spatial requirements
• Test and Development Environments: Essential for validation setups requiring right-angle connections for device testing
• Mining Rig Configurations: Supports efficient GPU arrangement in cryptocurrency mining operations with space constraints
• Showroom and Display Systems: Perfect for demonstration systems where visual appeal and clean cable management are prioritized
• Custom System Integration: Enables unique configurations for system integrators dealing with specific orientation and color requirements
