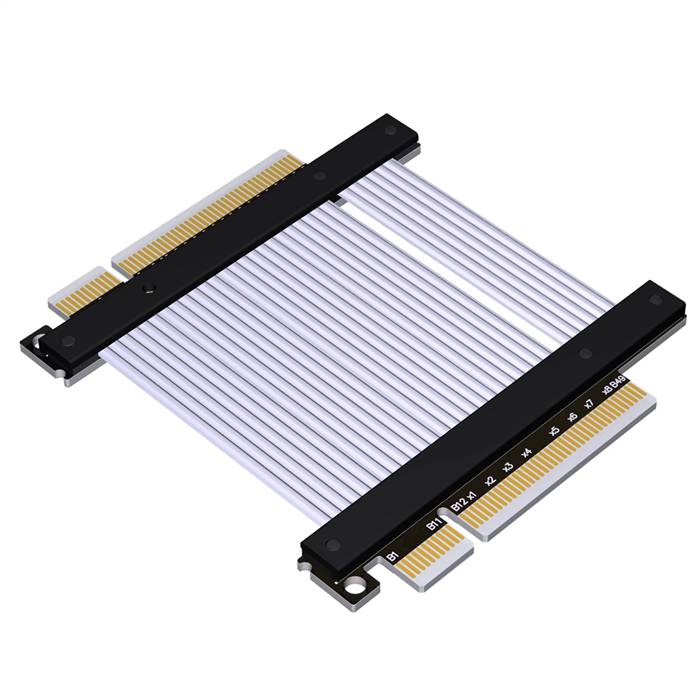

PCIe 4.0 x8 Tx to Tx Straight Through Jumper Cable, Male to Male, 85-ohm Low Impedance

The PCIe 4.0 x8 Tx to Tx Straight Through Jumper Cable, Male to Male is a high-performance interconnect solution designed for reliable signal transmission in advanced computing and testing environments. This cable features a standard straight-through wiring configuration that maintains the native transmitter-to-transmitter (Tx to Tx) and receiver-to-receiver (Rx to Rx) channel alignment between two male connectors. Engineered with precise 85-ohm low impedance characteristics, this jumper cable ensures direct signal path continuity while providing dependable point-to-point connections for system integration, validation, and development applications requiring male-to-male interface compatibility at PCIe 4.0 speeds.

Features

• Standard Straight Through Configuration: Maintains native Tx-Tx and Rx-Rx channel alignment for direct signal path continuity without signal crossing
• Precision 85-ohm Impedance: Low impedance design ensures minimal signal reflection and maximum signal integrity at PCIe 4.0 data rates
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering total bandwidth of 128 Gbps for high-speed applications
• Enhanced Signal Protection: Multi-layer shielding construction provides excellent protection against electromagnetic interference and signal degradation
• Secure Connection Interface: High-quality male connectors with robust mating mechanisms ensure reliable connections in various environments
• Universal Compatibility: Suitable for connecting compatible PCIe 4.0 devices, test equipment, and development systems
• Durable Construction: Designed for repeated use in laboratory, development, and production environments

Specifications

• Connector Type: PCI Express 4.0 x8 Male to Male
• Wiring Configuration: Tx to Tx Straight Through (Standard Pinout)
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 128 Gbps (x8 lanes)
• Characteristic Impedance: 85? ±5%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 200mm, 300mm, 500mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• System Integration Testing: Essential for verifying PCIe 4.0 system compatibility and performance in integrated environments
• Hardware Validation Laboratories: Ideal for device testing, signal integrity verification, and compliance testing
• Development and Prototyping: Supports PCIe-based product development and prototyping requiring standard signal paths
• Manufacturing Test Systems: Used in production environments for functional testing and quality assurance
• Research and Development: Suitable for academic and industrial research projects involving high-speed serial communications
• Data Center Equipment: Supports testing and configuration of PCIe 4.0 based server and storage components
• Embedded Systems: Facilitates connections in embedded computing applications requiring standard PCIe interfaces
• Technical Support and Debugging: Provides reference connections for system troubleshooting and performance analysis
