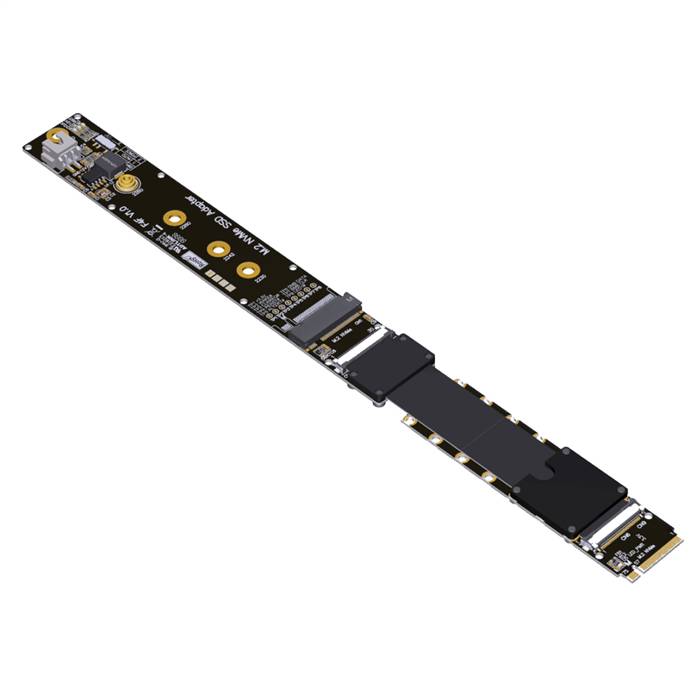

PCIe 5.0 M.2 NVMe Key-M Male to M.2 NVMe Key-M Female FFC Extension Cable

The PCIe 5.0 M.2 NVMe Key-M Male to M.2 NVMe Key-M Female FFC Extension Cable is a cutting-edge connectivity solution utilizing Flat Flexible Cable technology for superior performance in space-constrained environments. This advanced cable delivers full PCIe 5.0 bandwidth while maintaining an ultra-thin profile that enables installation in systems where traditional round cables cannot fit. Engineered with precision impedance control and optimized for high-frequency operation, this FFC solution provides reliable high-speed storage extension for next-generation computing platforms, including ultra-thin laptops, compact embedded systems, and high-density server applications requiring maximum performance in minimal space.

Features

• Advanced FFC Technology: Ultra-thin flat flexible cable design for extreme space constraints
• PCIe 5.0 Ready: Supports data rates up to 32 GT/s per lane for maximum storage bandwidth
• Minimal Profile: Exceptionally thin construction enables installation in tight spaces
• Superior Flexibility: Excellent bending characteristics for complex routing scenarios
• Precision Impedance Control: Maintains 85-ohm characteristic impedance for optimal signal integrity
• High-Frequency Optimization: Engineered for PCIe 5.0 signal requirements
• Space-Efficient Solution: Ideal for applications where conventional cables are too bulky

Specifications

• Product Model: PCIe 5.0 M.2 NVMe Key-M Male to Female FFC Extension Cable
• Host Connector: M.2 Key-M Male
• Device Connector: M.2 Key-M Female
• Cable Technology: Flat Flexible Cable (FFC)
• Interface Support: PCIe 5.0 x4 lanes
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 128 Gbps total bandwidth)
• Supported Protocols: NVMe 2.0, Enterprise NVMe
• Characteristic Impedance: 85 ohms ±5%
• Cable Thickness: 0.25mm maximum
• Cable Length: 8cm, 12cm, 18cm
• Operating Temperature: 0°C to +70°C
• Insertion Loss: Optimized for PCIe 5.0 signal integrity requirements
• Durability Rating: 15,000 bending cycles
• Minimum Bend Radius: 3mm

Applications

• Ultra-Slim Mobile Devices: Storage expansion in modern laptops, tablets, and convertible devices
• High-Density Computing: Storage connectivity in blade servers and 1U rack systems
• Embedded Systems: Industrial computers, kiosks, and IoT devices with space limitations
• Medical Electronics: Diagnostic equipment and medical imaging systems requiring compact storage solutions
• Aerospace and Defense: Avionics systems and military computing platforms with weight and space constraints
• OEM Manufacturing: Custom integration for system manufacturers requiring thin form factors
• Test and Development: High-frequency signal testing and prototyping applications
• Consumer Electronics: Gaming consoles and entertainment devices with internal space constraints
