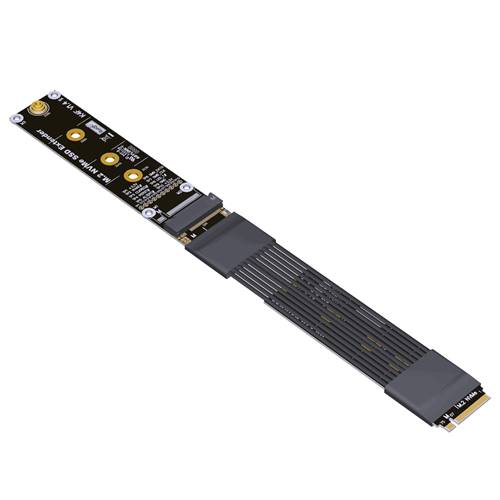

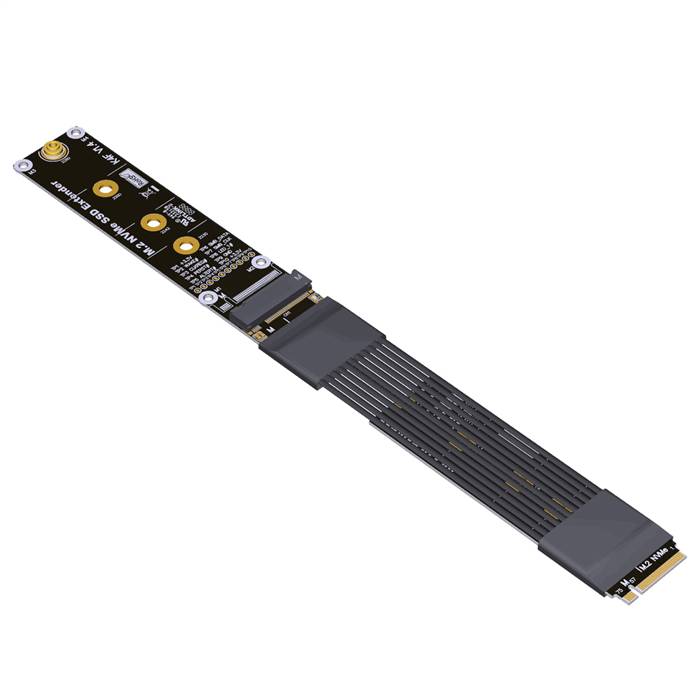

PCIe 5.0 M.2 NVMe Key-M Male to Female SSD Extension Cable, 85-ohm Low Impedance

The PCIe 5.0 M.2 NVMe Key-M Male to Female SSD Extension Cable is a premium high-speed interconnect solution designed for extending the reach of PCIe 5.0 NVMe storage devices. This cable enables flexible physical placement of M.2 SSDs within a system chassis, allowing for improved thermal management and optimal mechanical layout. Engineered with precise 85-ohm impedance matching, it maintains exceptional signal integrity at the demanding data rates of PCIe 5.0 technology. This solution is ideal for high-performance computing, enterprise servers, and advanced workstations where maximum storage bandwidth and configuration flexibility are required.

Features

• PCIe 5.0 Performance: Supports data rates up to 32 GT/s per lane for maximum storage bandwidth
• Precision Impedance Control: 85-ohm characteristic impedance ensures minimal signal degradation
• Universal M.2 Support: Compatible with 2230, 2242, 2260, 2280, and 22110 form factor SSDs
• Enhanced Thermal Management: Allows SSD relocation for improved airflow and cooling efficiency
• Superior Signal Integrity: Advanced cable construction minimizes insertion loss and signal reflection
• Robust Connector Design: High-quality connectors rated for numerous mating cycles
• Backward Compatibility: Fully supports PCIe 4.0 and 3.0 devices

Specifications

• Product Model: PCIe 5.0 M.2 NVMe Key-M Male to Female Extension Cable
• Host Connector: M.2 Key-M Male
• Device Connector: M.2 Key-M Female
• Interface Support: PCIe 5.0 x4 lanes
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 128 Gbps total bandwidth)
• Supported Protocols: NVMe 2.0, Enterprise NVMe
• Impedance: 85 ohms ±5%
• Cable Type: Low-loss coaxial cable assembly
• Cable Length: 10cm, 20cm, 30cm
• Operating Temperature: 0°C to +70°C
• Insertion Loss: Less than -3.0dB at 16GHz
• Return Loss: Better than -20dB at 16GHz
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

Applications

• High-Performance Computing: Extending storage connectivity in HPC and AI training systems
• Enterprise Server Configuration: Flexible SSD placement in rack servers and storage arrays
• Workstation Storage Expansion: Adding high-speed NVMe storage to creative and engineering workstations
• Thermal Optimization: Relocating SSDs away from heat sources to prevent thermal throttling
• Test and Development: Prototyping and validation of PCIe 5.0 storage devices
• OEM Solutions: Custom storage configurations for server manufacturers
• Data Center Infrastructure: High-density storage deployment in hyperscale environments
• System Integration: Custom PC builds requiring specific component placement for optimal performance
