PCIe 5.0 M.2 NVMe Key-M Male to Female 22110 SSD Extension Cable, 85-ohm Low Impedance

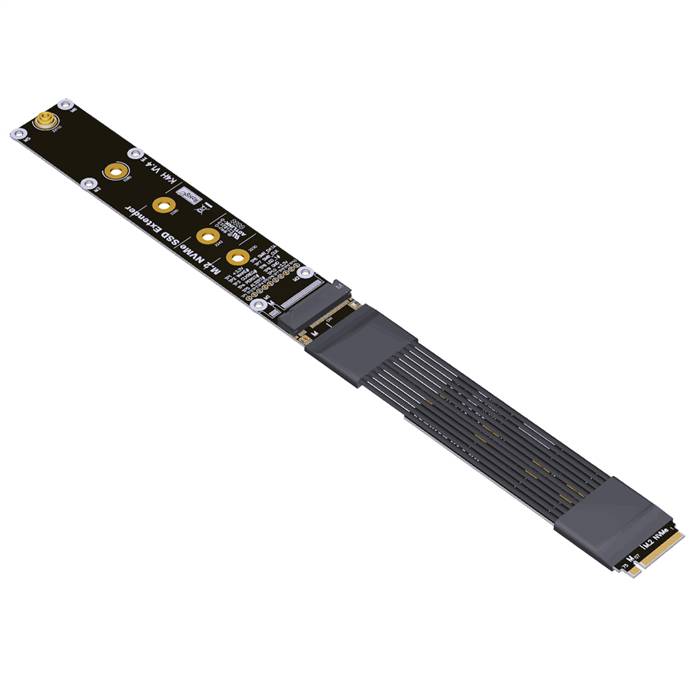

The PCIe 5.0 M.2 NVMe Key-M Male to Female 22110 SSD Extension Cable is a high-performance connectivity solution engineered for next-generation storage systems requiring maximum bandwidth and compatibility with large-form-factor SSDs. This extension cable seamlessly extends the reach of a host motherboard's M.2 Key-M slot to a remotely mounted 22110-length SSD, facilitating optimal positioning for thermal management and mechanical integration. Precision-engineered with 85-ohm low impedance characteristics, it ensures superior signal integrity at PCIe 5.0 data rates, making it ideal for high-density servers, advanced workstations, and storage expansion applications where performance and physical layout flexibility are critical.

Features

• Extended SSD Compatibility: Specifically supports 22110 form factor SSDs in addition to common shorter lengths.
• PCIe 5.0 Ready: Fully supports data rates up to 32 GT/s for maximum storage bandwidth.
• Precision Impedance Matching: 85-ohm differential impedance design minimizes signal reflection and ensures data integrity.
• Robust Connector System: High-durability Male and Female M.2 Key-M connectors withstand repeated mating cycles.
• Thermal Management Support: The extension design allows for strategic SSD placement to improve airflow and cooling.
• High-Speed Optimized Cable: Low-loss dielectric and superior shielding preserve signal quality over the cable length.
• Backward Compatibility: Fully functional with previous PCIe 4.0 and 3.0 generations.

Specifications

• Product Model: PCIe 5.0 M.2 NVMe Key-M Male to Female 22110 Extension Cable
• Host Connector: M.2 Key-M Male
• Target Connector: M.2 Key-M Female, supporting 22110/2280/2260/2242/2230 SSDs
• Interface: PCIe 5.0 x4 Lanes
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 128 Gbps total bandwidth)
• Supported Protocols: NVMe 2.0
• Characteristic Impedance: 85 ohms ±5%
• Cable Type: Low-loss shielded twisted pair
• Cable Length: 15cm, 25cm, 30cm
• Operating Temperature: 0°C to +70°C
• Insertion Loss: Optimized for PCIe 5.0 signal integrity requirements
• Durability Rating: 5,000 mating cycles per connector

Applications

• High-Density Server Deployment: Enables flexible placement of high-capacity 22110 SSDs for optimal space utilization in rack servers.
• Workstation Storage Expansion: Adds extensive, high-speed storage to creative and engineering workstations.
• Storage Array JBOFs: Useful in Just a Bunch of Flash (JBOF) configurations for AI and data center use.
• Thermal-Critical Environments: Allows relocation of SSDs away from hot components like CPUs and GPUs to prevent thermal throttling.
• Prototyping and Development: Facilitates testing and validation of 22110 SSDs in various physical configurations.
• OEM Server Solutions: Custom integration for server manufacturers requiring specific storage module layout.
• High-Performance Computing: Essential for HPC clusters demanding both peak storage performance and large capacity drives.
