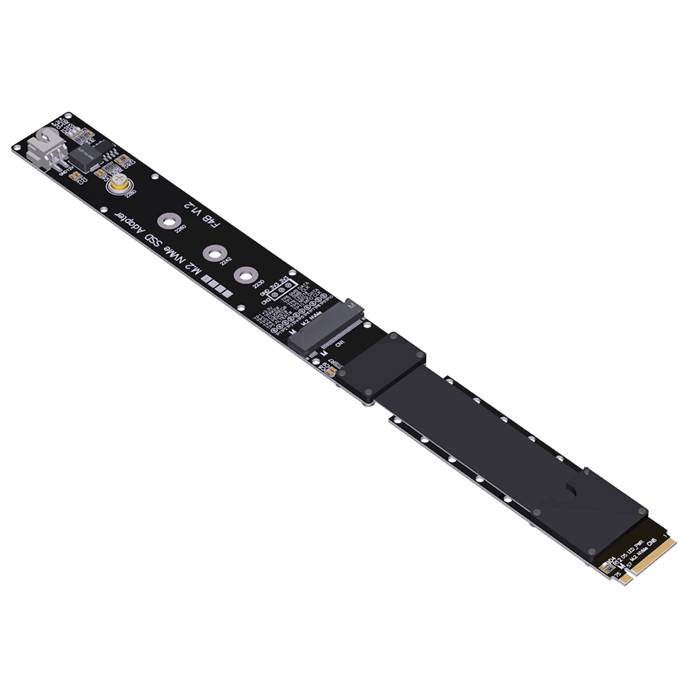

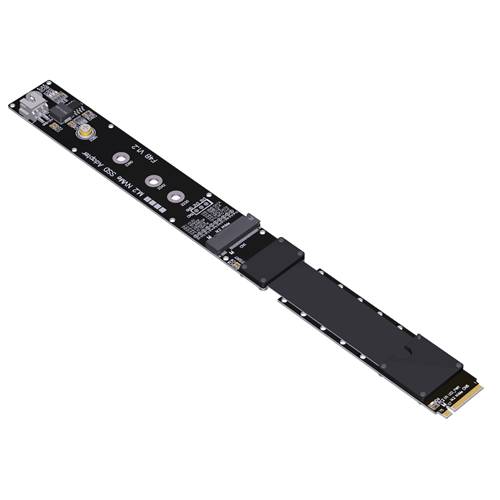

PCIe 5.0 M.2 NVMe Key-M Male to M.2 NVMe Key-M Female FFC Extension Cable

The PCIe 5.0 M.2 NVMe Key-M Male to M.2 NVMe Key-M Female FFC Extension Cable is an advanced flat flexible cable solution designed for high-speed storage extension in space-constrained environments. Utilizing Flat Flexible Cable technology, this extension provides superior flexibility and minimal thickness while maintaining PCIe 5.0 signal integrity requirements. The ultra-thin profile enables installation in extremely tight spaces where traditional round cables cannot fit, making it ideal for slim laptops, compact embedded systems, and high-density server applications. This FFC solution delivers full PCIe 5.0 bandwidth while offering unprecedented layout flexibility for next-generation storage systems.

Features

• Flat Flexible Cable Design: Ultra-thin FFC technology for space-constrained applications
• PCIe 5.0 Performance: Supports data rates up to 32 GT/s per lane
• Low Profile Construction: Minimal thickness enables installation in tight spaces
• Enhanced Flexibility: Superior bending capability for complex routing scenarios
• Optimized Signal Integrity: Precision engineering maintains PCIe 5.0 signal quality
• Space-Efficient: Ideal for applications where traditional round cables are too bulky
• High-Frequency Performance: Designed for PCIe 5.0 frequency requirements

Specifications

• Product Model: PCIe 5.0 M.2 NVMe Key-M Male to Female FFC Extension Cable
• Host Connector: M.2 Key-M Male
• Device Connector: M.2 Key-M Female
• Cable Type: Flat Flexible Cable (FFC)
• Interface Support: PCIe 5.0 x4 lanes
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 128 Gbps total bandwidth)
• Supported Protocols: NVMe 2.0
• Cable Thickness: 0.3mm maximum
• Cable Length: 10cm, 15cm, 20cm
• Operating Temperature: 0°C to +70°C
• Impedance: 85 ohms ±5%
• Durability Rating: 10,000 bending cycles
• Minimum Bend Radius: 5mm

Applications

• Ultra-Thin Laptops: Storage expansion in slim notebook and tablet designs
• Compact Embedded Systems: Space-constrained industrial and commercial applications
• High-Density Servers: Storage connectivity in 1U and blade server configurations
• Wearable Technology: Storage solutions for compact wearable devices
• Medical Equipment: Storage expansion in medical imaging and diagnostic systems
• Aerospace and Defense: Lightweight storage solutions for avionics and military systems
• OEM Integration: Custom solutions for manufacturers requiring thin form factors
• Test and Measurement: High-frequency testing applications requiring flexible connectivity
