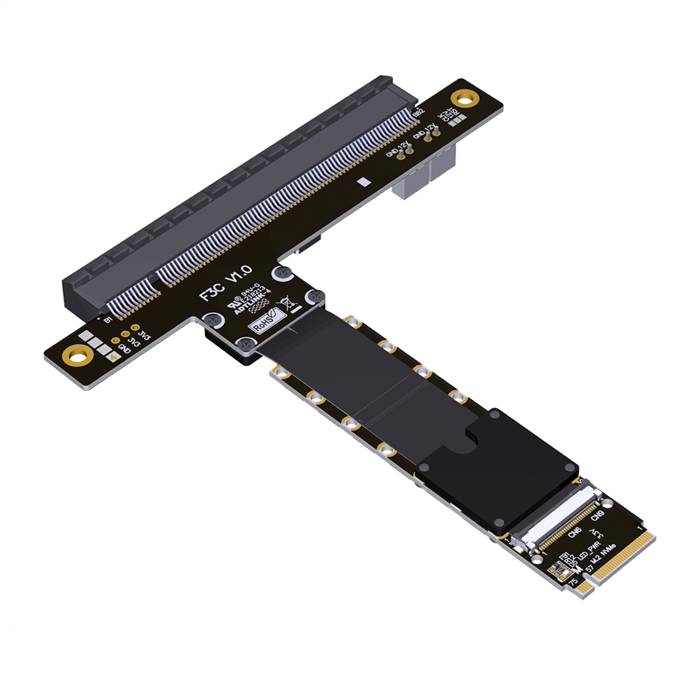

M.2 NVMe Male to PCIe 5.0 x16 Female FFC Extension Riser Cable

The M.2 NVMe Male to PCIe 5.0 x16 Female FFC Extension Riser Cable is a high-performance adapter solution designed to convert an M.2 NVMe interface into a full-bandwidth PCIe 5.0 x16 expansion slot. Utilizing advanced Flat Flexible Cable technology, this riser provides exceptional flexibility and space efficiency while maintaining the complete PCIe 5.0 bandwidth required for high-end graphics cards and other expansion devices. This solution enables versatile system configurations by allowing graphics card installation through M.2 interfaces, making it ideal for compact systems, multi-GPU setups, and custom computing applications where traditional PCIe slots are unavailable or insufficient.

Features

• Interface Conversion: Transforms M.2 NVMe slot into a fully functional PCIe 5.0 x16 interface
• PCIe 5.0 Performance: Supports full x16 lane bandwidth at 32 GT/s data rates
• FFC Technology: Ultra-thin flat flexible cable for maximum routing flexibility and space savings
• High-Speed Signal Integrity: Precision engineering maintains PCIe 5.0 signal quality
• Space-Efficient Design: Enables GPU installation in compact and space-constrained systems
• Universal Compatibility: Supports various graphics cards and standard M.2 NVMe interfaces
• Flexible Configuration: Allows creative system layouts and multi-GPU configurations

Specifications

• Product Model: M.2 NVMe Male to PCIe 5.0 x16 Female FFC Riser Cable
• Host Connector: M.2 Key-M Male
• Device Connector: PCIe 5.0 x16 Female
• Cable Type: Flat Flexible Cable (FFC)
• Interface Support: PCIe 5.0 x16
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 512 Gbps total bandwidth)
• Supported Protocols: PCI Express 5.0, NVMe
• Cable Length: 20cm, 30cm, 40cm
• Cable Thickness: 0.4mm maximum
• Operating Temperature: 0°C to +70°C
• Characteristic Impedance: 85 ohms ±5%
• Durability Rating: 10,000 bending cycles
• Minimum Bend Radius: 8mm

Applications

• Compact Gaming Systems: Adding high-performance graphics to small form factor computers
• Multi-GPU Workstations: Expanding graphics capabilities for rendering and computation
• Cryptocurrency Mining: Space-optimized multi-GPU configurations for mining operations
• Test and Development: Graphics card validation and compatibility testing
• Custom PC Builds: Unique system layouts requiring flexible GPU placement
• Server Applications: GPU acceleration in server environments with limited PCIe slots
• OEM Solutions: Custom computing systems requiring specific expansion configurations
• Prototype Systems: Experimental computing configurations with flexible expansion needs
