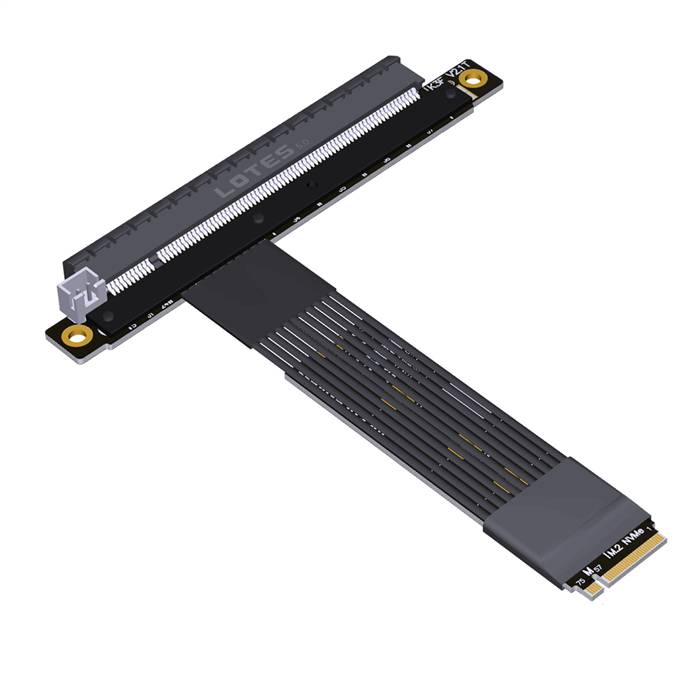

M.2 NVMe Male to PCIe 5.0 x16 Female Extension Riser Cable

The M.2 NVMe Male to PCIe 5.0 x16 Female Extension Riser Cable is a high-performance adapter solution designed to convert an M.2 NVMe interface into a full-bandwidth PCIe 5.0 x16 expansion slot. This innovative riser enables the connection of graphics cards and other high-speed expansion devices to systems with available M.2 slots but limited traditional PCIe expansion capabilities. Engineered to maintain signal integrity at PCIe 5.0 data rates, this solution provides maximum flexibility for system builders, enthusiasts, and professionals seeking to maximize their system's expansion potential while leveraging the latest interface technology.

Features

• Interface Conversion: Transforms M.2 NVMe slot into a fully functional PCIe 5.0 x16 interface
• PCIe 5.0 Performance: Supports full x16 lane bandwidth at 32 GT/s data rates
• High-Speed Signal Integrity: Precision engineering maintains signal quality at PCIe 5.0 specifications
• Flexible Configuration: Enables creative system layouts and multi-GPU setups
• Universal Compatibility: Supports various graphics cards and standard M.2 NVMe interfaces
• Space-Efficient Design: Provides expansion capabilities in compact and space-constrained systems
• Reliable Construction: Quality materials ensure stable performance under full load conditions

Specifications

• Product Model: M.2 NVMe Male to PCIe 5.0 x16 Female Extension Riser Cable
• Host Connector: M.2 Key-M Male
• Device Connector: PCIe 5.0 x16 Female
• Interface Support: PCIe 5.0 x16
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 512 Gbps total bandwidth)
• Supported Protocols: PCI Express 5.0, NVMe
• Cable Type: Shielded flexible riser cable
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Characteristic Impedance: 85 ohms ±5%
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• Compact Gaming Systems: Adding high-performance graphics to small form factor computers
• Multi-GPU Workstations: Expanding graphics capabilities for rendering and computation
• Cryptocurrency Mining: Space-optimized multi-GPU configurations for mining operations
• Test and Development: Graphics card validation and compatibility testing
• Custom PC Builds: Unique system layouts requiring flexible expansion options
• Server Applications: GPU acceleration in server environments with limited PCIe slots
• OEM Solutions: Custom computing systems requiring specific expansion configurations
• Prototype Systems: Experimental computing configurations with flexible expansion needs
