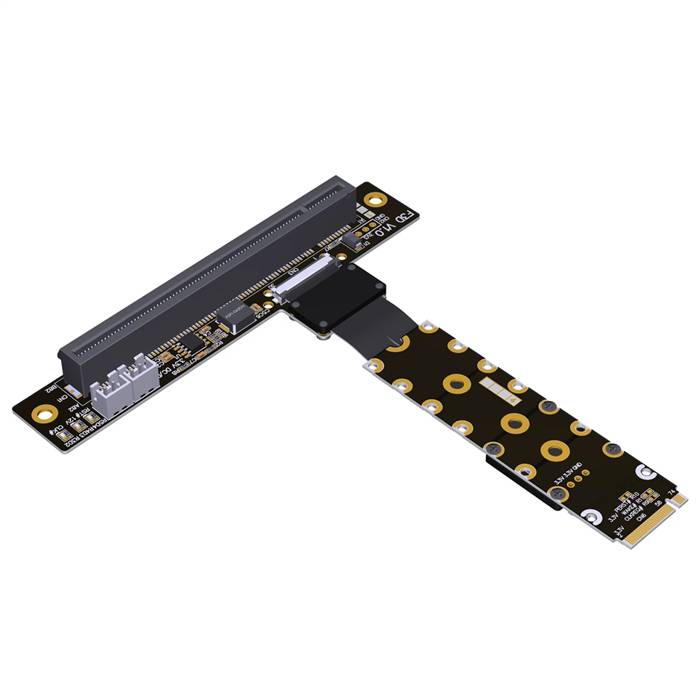

M.2 NVMe Male to PCIe 5.0 x16 Female Up R/A FFC Extension Riser Cable

The M.2 NVMe Male to PCIe 5.0 x16 Female Up R/A FFC Extension Riser Cable is a high-performance adapter solution that converts an M.2 NVMe interface into a full-bandwidth PCIe 5.0 x16 slot. This innovative riser cable features an up right-angle PCIe connector and utilizes advanced Flat Flexible Cable technology to provide exceptional flexibility and space efficiency. Designed for modern computing applications, this solution enables graphics card installation in systems with limited expansion capabilities or unusual form factors while maintaining the complete PCIe 5.0 bandwidth essential for high-performance GPUs and other expansion cards.

Features

• Interface Conversion: Transforms M.2 NVMe slot into fully functional PCIe 5.0 x16 interface
• Up Right-Angle Design: 90-degree upward-facing PCIe slot for optimal card orientation
• PCIe 5.0 Performance: Supports full x16 lane bandwidth at 32 GT/s data rates
• FFC Technology: Ultra-thin flat flexible cable for maximum routing flexibility
• High-Speed Optimization: Precision engineering maintains signal integrity at PCIe 5.0 frequencies
• Space-Efficient Solution: Enables GPU installation in space-constrained environments
• Universal Compatibility: Supports various graphics cards and M.2 NVMe interfaces

Specifications

• Product Model: M.2 NVMe Male to PCIe 5.0 x16 Female Up R/A FFC Riser Cable
• Host Connector: M.2 Key-M Male
• Device Connector: PCIe 5.0 x16 Female Up Right-Angle
• Cable Type: Flat Flexible Cable (FFC)
• Interface Support: PCIe 5.0 x16
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 512 Gbps total bandwidth)
• Supported Protocols: PCI Express 5.0, NVMe
• Cable Length: 15cm, 25cm, 30cm
• Cable Thickness: 0.35mm maximum
• Operating Temperature: 0°C to +70°C
• Characteristic Impedance: 85 ohms ±5%
• Durability Rating: 10,000 bending cycles
• Minimum Bend Radius: 6mm

Applications

• Small Form Factor Builds: Adding high-performance graphics to compact computer systems
• Custom PC Configurations: Unique system layouts requiring flexible GPU placement
• Mining Rigs: Multi-GPU configurations utilizing M.2 interfaces for expansion
• Test and Development: Graphics card validation and compatibility testing
• Workstation Expansion: Adding professional graphics capabilities to systems with limited PCIe slots
• OEM Solutions: Custom computing systems requiring specific GPU orientation
• Gaming Setups: Alternative GPU mounting for improved cooling and aesthetics
• Prototype Systems: Experimental computing configurations with unique layout requirements
