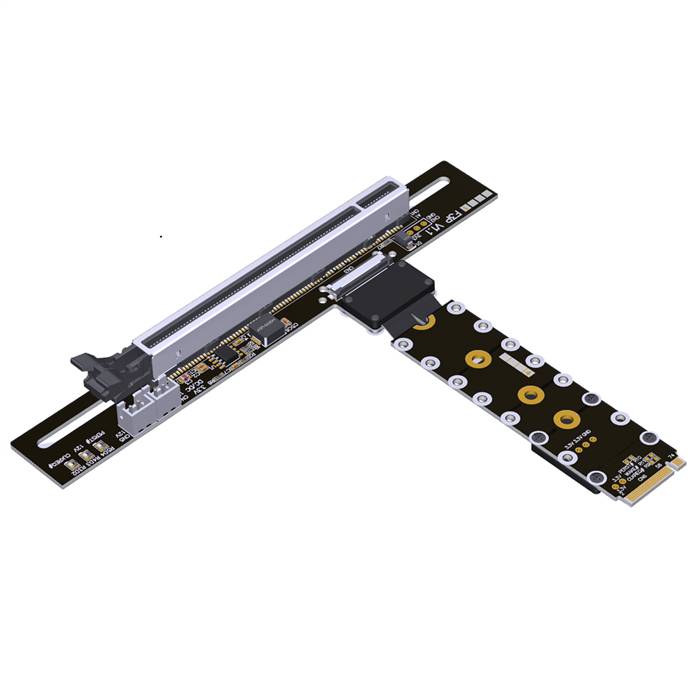

M.2 NVMe Male to PCIe 5.0 x16 Female Up R/A FFC Extension Riser Cable with Lock

The M.2 NVMe Male to PCIe 5.0 x16 Female Up R/A FFC Extension Riser Cable with Lock is a premium secure connectivity solution designed for high-reliability system integration. This advanced adapter converts a standard M.2 NVMe slot into a fully functional PCIe 5.0 x16 interface with an up right-angle orientation and integrated locking mechanism. The innovative locking feature ensures absolute connector security, preventing accidental disconnection in mission-critical applications and high-vibration environments. Utilizing Flat Flexible Cable technology, this riser delivers full PCIe 5.0 bandwidth while providing exceptional mechanical stability and reliable performance for demanding computing applications where both maximum graphics performance and connection integrity are essential.

Features

• Secure Locking System: Integrated positive lock mechanism prevents accidental disconnection
• Up Right-Angle PCIe Slot: 90-degree upward-facing PCIe x16 connector with locking feature
• PCIe 5.0 x16 Performance: Full x16 lane bandwidth support at 32 GT/s data rates
• Standard M.2 Interface: Compatible with regular M.2 NVMe Key-M slots
• Advanced FFC Technology: Ultra-thin flat flexible cable for optimal space utilization and routing flexibility
• Vibration-Resistant Design: Locking mechanism ensures stability in demanding environments
• High-Speed Signal Integrity: Precision engineering maintains PCIe 5.0 signal quality with secure connections

Specifications

• Product Model: M.2 NVMe Male to PCIe 5.0 x16 Female Up R/A FFC Riser Cable with Lock
• Host Connector: M.2 Key-M Male with Lock
• Device Connector: PCIe 5.0 x16 Female Up Right-Angle with Lock
• Cable Type: Flat Flexible Cable (FFC)
• Interface Support: PCIe 5.0 x16
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 512 Gbps total bandwidth)
• Supported Protocols: PCI Express 5.0, NVMe
• Cable Length: 15cm, 25cm, 30cm
• Cable Thickness: 0.35mm maximum
• Operating Temperature: 0°C to +70°C
• Characteristic Impedance: 85 ohms ±5%
• Lock Mechanism: Positive engagement locking system
• Durability Rating: 15,000 locking cycles
• Minimum Bend Radius: 6mm

Applications

• Mission-Critical Computing: Applications requiring absolute connection security and reliability
• Industrial Systems: Manufacturing environments where vibration resistance is essential
• Server Infrastructure: Enterprise data center systems demanding secure GPU connections
• Transportation Applications: Automotive and aerospace systems requiring vibration-proof expansion solutions
• Medical Imaging Equipment: Critical healthcare systems where connection integrity is vital
• OEM Manufacturing: Custom systems requiring secure, reliable expansion solutions
• Test and Measurement: Laboratory environments demanding secure connections for accurate validation
• High-Reliability Workstations: Professional systems where connection security cannot be compromised in any operating condition
