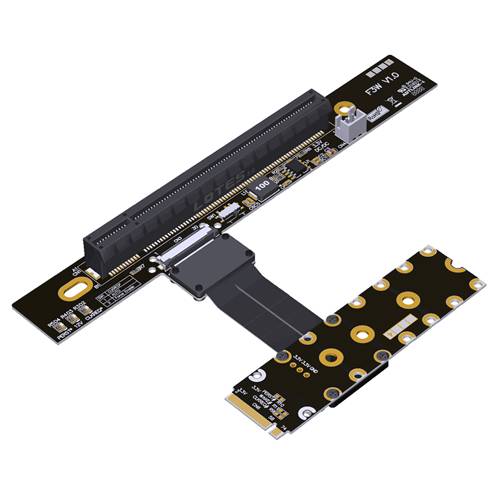

M.2 NVMe Male Left Bend to PCIe 5.0 x16 Female Down R/A FFC Extension Riser Cable

The M.2 NVMe Male Left Bend to PCIe 5.0 x16 Female Down R/A FFC Extension Riser Cable is a highly specialized adapter designed for complex system integration requiring both left-oriented connectivity and downward-facing GPU installation. This advanced solution combines a left-bend M.2 NVMe connector with a PCIe 5.0 x16 female down right-angle slot, utilizing Flat Flexible Cable technology to navigate extremely challenging spatial constraints. The unique left-oriented M.2 connector and downward-facing PCIe slot enable sophisticated GPU mounting in systems where standard riser configurations are impossible, delivering full PCIe 5.0 bandwidth for high-performance graphics applications in space-constrained environments.

Features

• Left-Bend M.2 Connector: 90-degree left-oriented M.2 male connector for specific spatial requirements
• Down Right-Angle PCIe Slot: 90-degree downward-facing PCIe x16 slot for unique GPU orientation
• PCIe 5.0 x16 Performance: Full x16 lane bandwidth support at 32 GT/s data rates
• Advanced FFC Technology: Ultra-thin flat flexible cable for maximum routing flexibility
• High-Frequency Optimization: Precision engineering for PCIe 5.0 signal integrity
• Direction-Specific Design: Solves unique layout challenges in custom system builds
• Space-Efficient Configuration: Enables GPU installation in traditionally incompatible cases

Specifications

• Product Model: M.2 NVMe Male Left Bend to PCIe 5.0 x16 Female Down R/A FFC Riser Cable
• Host Connector: M.2 Key-M Male with 90-degree Left Bend
• Device Connector: PCIe 5.0 x16 Female Down Right-Angle
• Cable Type: Flat Flexible Cable (FFC)
• Interface Support: PCIe 5.0 x16
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 512 Gbps total bandwidth)
• Supported Protocols: PCI Express 5.0, NVMe
• Cable Length: 18cm, 25cm, 35cm
• Cable Thickness: 0.35mm maximum
• Operating Temperature: 0°C to +70°C
• Characteristic Impedance: 85 ohms ±5%
• Durability Rating: 10,000 bending cycles
• Minimum Bend Radius: 6mm

Applications

• Custom Loop Liquid Cooling: Complex GPU positioning for advanced cooling systems with downward orientation
• Server Chassis Modifications: Specialized server configurations requiring left-bend and downward GPU mounting
• Mini-ITX Extreme Builds: Maximum graphics performance in minimal space with specific directional requirements
• Test and Validation Environments: Flexible GPU testing in laboratory settings with unique orientation needs
• OEM Manufacturing Solutions: Custom system integration for specific client requirements
• Mining Rigs: Space-optimized multi-GPU setups requiring left-side routing and downward facing cards
• Prototype Development: Experimental computing configurations with complex spatial constraints
• Industrial Computing Systems: Embedded applications with specific mechanical and thermal management requirements
