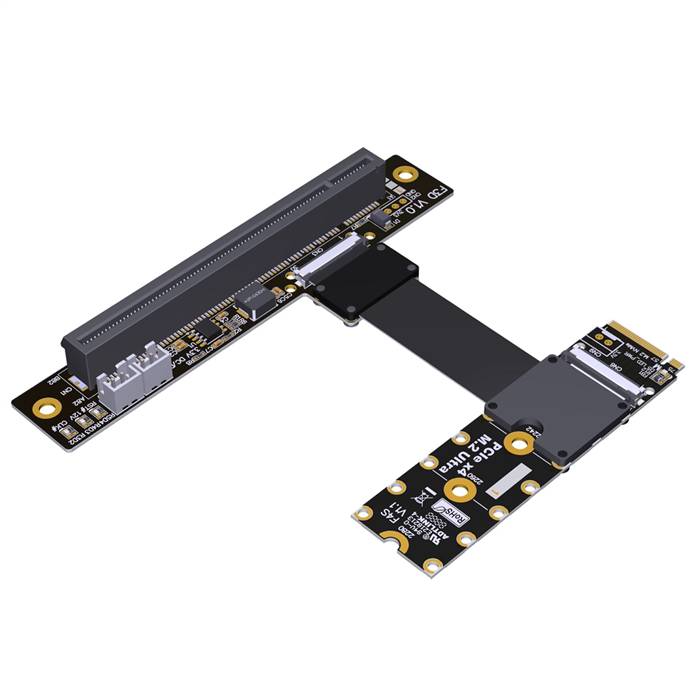

M.2 NVMe Male Left Bend to PCIe 5.0 x16 Female Up R/A FFC Extension Riser Cable

The M.2 NVMe Male Left Bend to PCIe 5.0 x16 Female Up R/A FFC Extension Riser Cable is a highly specialized adapter designed for complex system integration scenarios requiring specific directional routing. This advanced solution combines a left-bend M.2 NVMe connector with a PCIe 5.0 x16 female up right-angle slot, utilizing Flat Flexible Cable technology to navigate challenging spatial constraints. The unique left-oriented M.2 connector and upward-facing PCIe slot enable sophisticated GPU and expansion card installations in systems where standard riser cables cannot fit. This cable delivers full PCIe 5.0 bandwidth while providing unprecedented flexibility for custom computer builds and space-optimized configurations.

Features

• Left-Bend M.2 Connector: 90-degree left-oriented M.2 male connector for specific routing needs
• PCIe 5.0 x16 Bandwidth: Supports full x16 lane connectivity at 32 GT/s data rates
• Up Right-Angle PCIe Slot: 90-degree upward-facing PCIe x16 slot for optimal card orientation
• Advanced FFC Technology: Ultra-thin flat flexible cable for tight spaces and complex routing
• High-Frequency Optimization: Engineered for PCIe 5.0 signal integrity requirements
• Direction-Specific Design: Solves unique layout challenges in custom system builds
• Space-Efficient Configuration: Enables GPU installation in traditionally incompatible cases

Specifications

• Product Model: M.2 NVMe Male Left Bend to PCIe 5.0 x16 Female Up R/A FFC Riser Cable
• Host Connector: M.2 Key-M Male with 90-degree Left Bend
• Device Connector: PCIe 5.0 x16 Female Up Right-Angle
• Cable Technology: Flat Flexible Cable (FFC)
• Interface Support: PCIe 5.0 x16
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 512 Gbps total bandwidth)
• Supported Protocols: PCI Express 5.0, NVMe
• Cable Length: 20cm, 30cm, 40cm
• Cable Thickness: 0.35mm maximum
• Operating Temperature: 0°C to +70°C
• Characteristic Impedance: 85 ohms ±5%
• Durability Rating: 10,000 bending cycles
• Minimum Bend Radius: 6mm

Applications

• Custom Loop Water Cooling: Complex GPU positioning for advanced cooling systems
• Mini-ITX Extreme Builds: Maximum graphics power in minimal space with specific layout requirements
• Prototype Computing Systems: Experimental configurations with unique spatial constraints
• OEM Server Solutions: High-density computing with specific component orientation needs
• Test and Validation: Flexible GPU testing in laboratory and development environments
• Mining Configurations: Space-optimized multi-GPU setups requiring left-side routing
• Workstation Expansion: Professional computing systems with specific expansion requirements
• Aesthetic PC Builds: Showcase systems requiring precise cable management and component placement
