M.2 NVMe Male Right Bend to PCIe 5.0 x16 Female Down R/A FFC Extension Riser Cable

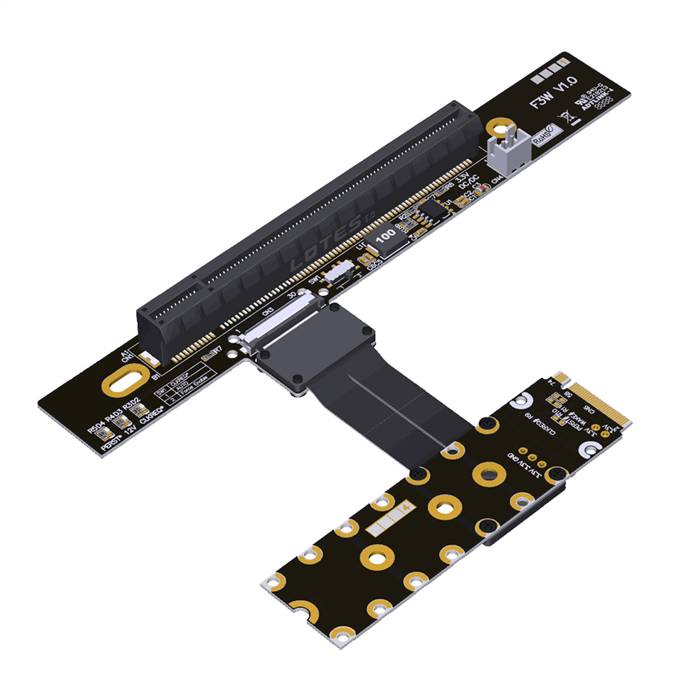

The M.2 NVMe Male Right Bend to PCIe 5.0 x16 Female Down R/A FFC Extension Riser Cable is a specialized high-performance adapter designed for advanced system configurations requiring right-oriented connectivity with downward-facing GPU installation. This sophisticated solution combines a right-bend M.2 NVMe male connector with a PCIe 5.0 x16 female down right-angle slot, utilizing advanced Flat Flexible Cable technology to navigate complex spatial constraints. The right-angle M.2 connector and downward-facing PCIe slot work in concert to enable unique GPU mounting scenarios in systems where traditional riser configurations cannot be implemented, while maintaining full PCIe 5.0 bandwidth for demanding graphics applications.

Features

• Right-Bend M.2 Connector: 90-degree right-oriented M.2 male connector for specific spatial requirements
• Down Right-Angle PCIe Slot: 90-degree downward-facing PCIe x16 slot for unique GPU orientation
• PCIe 5.0 x16 Bandwidth: Full x16 lane support at 32 GT/s data rates
• Advanced FFC Construction: Ultra-thin flat flexible cable for maximum routing flexibility in tight spaces
• High-Speed Signal Integrity: Precision engineering maintains PCIe 5.0 signal quality
• Direction-Optimized Design: Solves complex layout challenges in custom system builds
• Space-Efficient Configuration: Enables GPU installation in traditionally incompatible chassis designs

Specifications

• Product Model: M.2 NVMe Male Right Bend to PCIe 5.0 x16 Female Down R/A FFC Riser Cable
• Host Connector: M.2 Key-M Male with 90-degree Right Bend
• Device Connector: PCIe 5.0 x16 Female Down Right-Angle
• Cable Technology: Flat Flexible Cable (FFC)
• Interface Support: PCIe 5.0 x16
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 512 Gbps total bandwidth)
• Supported Protocols: PCI Express 5.0, NVMe
• Cable Length: 20cm, 30cm, 40cm
• Cable Thickness: 0.3mm maximum
• Operating Temperature: 0°C to +70°C
• Characteristic Impedance: 85 ohms ±5%
• Durability Rating: 12,000 bending cycles
• Minimum Bend Radius: 5mm

Applications

• Custom Water-Cooling Rigs: Complex GPU positioning for advanced liquid cooling systems with downward orientation
• Server Infrastructure: Specialized server configurations requiring right-bend connectivity and downward GPU mounting
• Compact Gaming Systems: High-performance graphics in small form factor cases with specific spatial constraints
• Test and Development: Flexible GPU validation in laboratory environments with unique orientation requirements
• OEM Solutions: Custom manufacturing for specific client integration needs
• Mining Operations: Space-optimized multi-GPU setups requiring right-side routing and downward facing cards
• Prototype Systems: Experimental computing configurations with complex mechanical requirements
• Industrial Applications: Embedded systems with specific thermal management and spatial constraints
