M.2 NVMe Male Reverse to PCIe 5.0 x16 Female Up R/A FFC Extension Riser Cable

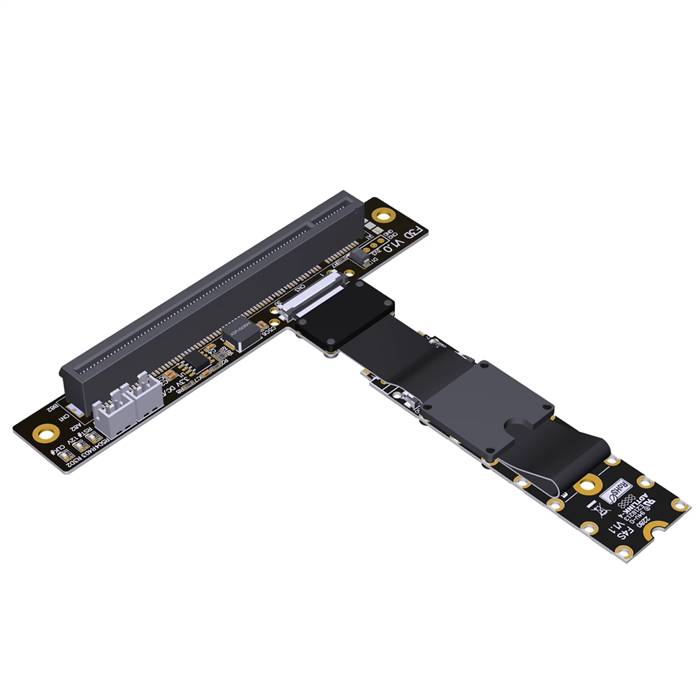

The M.2 NVMe Male Reverse to PCIe 5.0 x16 Female Up R/A FFC Extension Riser Cable is a specialized high-performance adapter designed for advanced system configurations requiring flexible GPU connectivity. This innovative solution converts a reverse-oriented M.2 NVMe interface into a fully functional PCIe 5.0 x16 slot with an up right-angle orientation, utilizing Flat Flexible Cable technology for optimal space efficiency. The unique reverse connector design and right-angle PCIe slot enable complex GPU mounting scenarios in space-constrained environments while delivering full PCIe 5.0 bandwidth for graphics cards and other expansion devices.

Features

• Reverse M.2 Connector: Specialized design for reverse-oriented M.2 slots
• PCIe 5.0 x16 Performance: Supports full x16 lane bandwidth at 32 GT/s
• Up Right-Angle PCIe Slot: 90-degree upward orientation for optimized GPU installation
• FFC Technology: Ultra-thin flat flexible cable for maximum flexibility and minimal space
• High-Speed Signal Integrity: Precision engineering maintains PCIe 5.0 signal quality
• Space-Optimized Design: Enables GPU installation in extremely confined spaces
• Advanced Cooling Compatibility: Right-angle design improves airflow around GPU

Specifications

• Product Model: M.2 NVMe Male Reverse to PCIe 5.0 x16 Female Up R/A FFC Riser Cable
• Host Connector: M.2 Key-M Male Reverse Orientation
• Device Connector: PCIe 5.0 x16 Female Up Right-Angle
• Cable Type: Flat Flexible Cable (FFC)
• Interface Support: PCIe 5.0 x16
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 512 Gbps total bandwidth)
• Supported Protocols: PCI Express 5.0, NVMe
• Cable Length: 15cm, 25cm, 35cm
• Cable Thickness: 0.4mm maximum
• Operating Temperature: 0°C to +70°C
• Impedance: 85 ohms ±5%
• Durability Rating: 8,000 bending cycles
• Minimum Bend Radius: 8mm

Applications

• Compact Gaming Systems: GPU integration in small form factor cases with unique layouts
• Custom Water-Cooling Rigs: Flexible GPU positioning for complex cooling configurations
• Mini-ITX Builds: Maximum graphics performance in extremely compact systems
• Test and Measurement: Flexible GPU connectivity for testing and validation
• OEM Solutions: Custom system integration requiring specific GPU orientation
• Mining Rigs: Space-optimized multi-GPU configurations
• Workstation Systems: High-performance computing with flexible expansion options
• Prototype Development: Experimental system configurations with unique layout requirements
