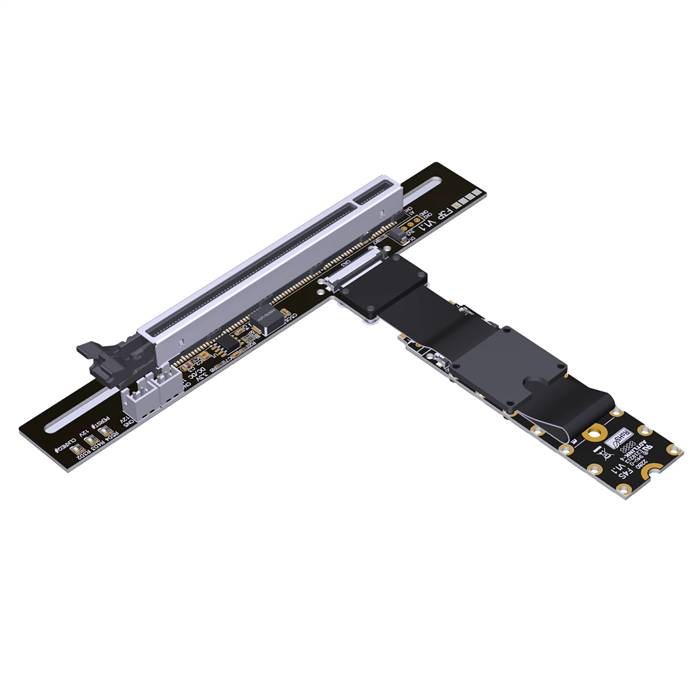

M.2 NVMe Male Reverse to PCIe 5.0 x16 Female Up R/A FFC Extension Riser Cable with Lock

The M.2 NVMe Male Reverse to PCIe 5.0 x16 Female Up R/A FFC Extension Riser Cable with Lock is a premium adapter solution designed for secure high-performance system integration. This advanced riser cable converts a reverse-oriented M.2 NVMe slot into a fully functional PCIe 5.0 x16 interface with an up right-angle orientation and integrated locking mechanism. The innovative locking feature ensures absolute connector security, preventing accidental disconnection in mission-critical applications. Utilizing Flat Flexible Cable technology, this solution delivers full PCIe 5.0 bandwidth while providing exceptional mechanical stability for demanding computing environments where both performance and reliability are paramount.

Features

• Secure Locking Mechanism: Integrated connector lock prevents accidental disconnection
• Reverse M.2 Interface: Specialized design for reverse-oriented M.2 slots
• Up Right-Angle PCIe Slot: 90-degree upward-facing PCIe x16 connector with locking feature
• PCIe 5.0 x16 Performance: Full x16 lane bandwidth support at 32 GT/s data rates
• Advanced FFC Technology: Ultra-thin flat flexible cable for optimal space utilization
• Enhanced Connection Security: Positive locking ensures reliable operation in vibration-prone environments
• High-Speed Signal Integrity: Precision engineering maintains PCIe 5.0 signal quality with secure connections

Specifications

• Product Model: M.2 NVMe Male Reverse to PCIe 5.0 x16 Female Up R/A FFC Riser Cable with Lock
• Host Connector: M.2 Key-M Male Reverse Orientation with Lock
• Device Connector: PCIe 5.0 x16 Female Up Right-Angle with Lock
• Cable Technology: Flat Flexible Cable (FFC)
• Interface Support: PCIe 5.0 x16
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 512 Gbps total bandwidth)
• Supported Protocols: PCI Express 5.0, NVMe
• Cable Length: 18cm, 25cm, 35cm
• Cable Thickness: 0.4mm maximum
• Operating Temperature: 0°C to +70°C
• Characteristic Impedance: 85 ohms ±5%
• Lock Mechanism: Positive engagement locking system
• Durability Rating: 15,000 locking cycles
• Minimum Bend Radius: 8mm

Applications

• Mission-Critical Systems: Applications requiring absolute connection security and reliability
• Industrial Computing: Harsh environments where vibration resistance is essential
• Server Infrastructure: Enterprise systems demanding secure GPU connections
• Transportation Systems: Automotive and aerospace applications requiring vibration-proof connections
• Medical Equipment: Critical healthcare systems where connection integrity is vital
• OEM Manufacturing: Custom systems requiring secure, reliable expansion solutions
• Test and Measurement: Laboratory environments demanding secure connections for accurate testing
• High-Vibration Environments: Applications where traditional connectors may become dislodged
