PCIe 5.0 x16 Male to x16 Female Up R/A Extension Cable

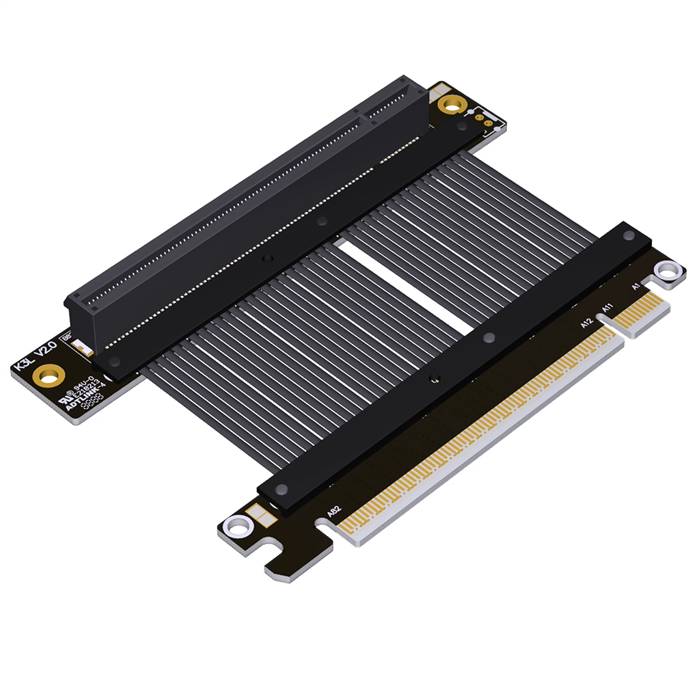

The PCIe 5.0 x16 Male to x16 Female Up R/A Extension Cable is a premium high-performance interconnect solution designed for next-generation computing systems requiring upward-oriented connector configuration and optimal space utilization. This cable features a standard male connector that interfaces with motherboard slots, extending to an Up Right-Angle female connector that enables superior cable management and airflow optimization. Engineered to maintain signal integrity at PCIe 5.0 data rates, this extension cable provides flexible expansion capabilities for graphics cards and computational accelerators while enhancing thermal management in high-performance systems and showcase builds.

Features

• Upward-Oriented Connector Design: Up Right-Angle female connector facilitates efficient cable routing and improves chassis airflow management in high-density configurations
• Full PCIe 5.0 Performance: Supports data rates up to 32 GT/s per lane, delivering total bandwidth of 512 Gbps for next-generation graphics cards and AI accelerators
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission without signal degradation at maximum speeds
• Secure Connection Interface: Robust connectors with reliable mating mechanisms ensure stable operation in various orientations
• Space-Optimized Solution: Upward-angled connector enables clean cable routing and improved accessibility in confined spaces
• Advanced Thermal Management: Promotes better airflow around connected devices by keeping cables routed upward and away from primary heat sources
• Universal Compatibility: Supports all PCIe 5.0 compatible devices while maintaining backward compatibility with previous generations

Specifications

• Host Connector: PCI Express 5.0 x16 Male
• Target Connector: PCIe x16 Female, Up Right-Angle orientation
• Supported Standard: PCI-SIG PCIe 5.0 Base Specification
• Data Rate: 32.0 GT/s per lane (PCIe 5.0)
• Total Bandwidth: 512 Gbps (x16 lanes)
• Cable Type: Shielded twin-axial with overall braid protection
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• High-Performance Gaming Systems: Ideal for advanced gaming PCs where upward cable routing optimizes airflow and showcases component aesthetics
• Data Center Server Configurations: Perfect for rack-mounted servers requiring upward-angled connectors for optimal cable management and serviceability
• Professional Workstations: Suitable for content creation and engineering workstations where both maximum performance and optimal thermal management are critical
• Showcase Computer Builds: Excellent for exhibition systems and modding projects where upward cable routing enhances visual presentation and internal organization
• Vertical GPU Mounting: Supports modern vertical graphics card installations where upward cable exit provides clean aesthetics and efficient cable management
• Compact System Solutions: Appropriate for small form factor builds where upward routing maximizes internal space utilization and improves component clearance
• Test and Development Laboratories: Essential for validation environments requiring upward-angled connections for device testing and system prototyping
• Custom Integration Projects: Enables sophisticated configurations for system integrators dealing with specific upward orientation requirements and aesthetic considerations
