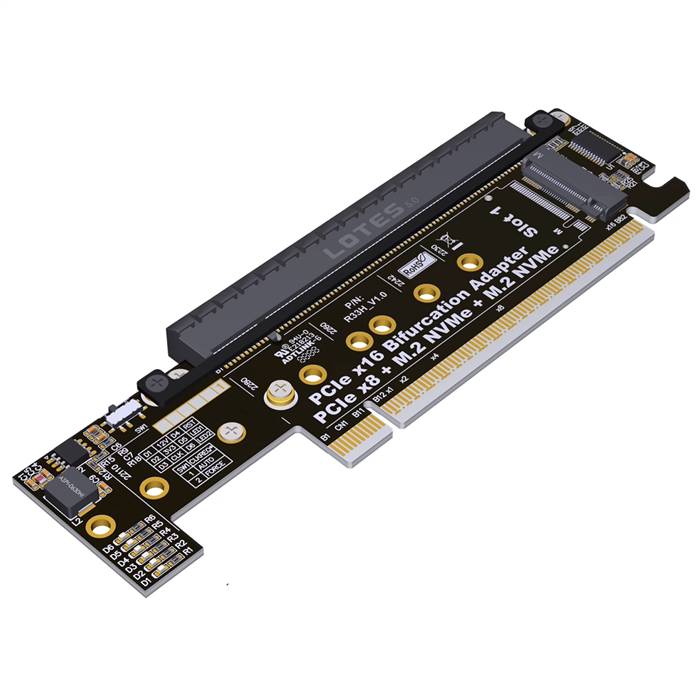

PCIe 5.0 x16 Male to PCIe 5.0 x8 Female & Two PCIe 5.0 x4 M.2 NVMe Slots Adapter Card

The PCIe 5.0 x16 Male to PCIe 5.0 x8 Female & Two PCIe 5.0 x4 M.2 NVMe Slots Adapter Card is a high-performance multi-function expansion solution designed for cutting-edge computing platforms requiring maximum storage performance and expansion flexibility. This advanced adapter card splits a single PCIe 5.0 x16 host interface into three distinct connectivity options: one PCIe 5.0 x8 female slot for standard expansion cards and two PCIe 5.0 x4 M.2 NVMe slots for high-speed solid-state drives. Engineered to deliver full PCIe 5.0 performance across all interfaces, this card is ideal for next-generation workstations, servers, and high-performance computing systems demanding maximum bandwidth and storage capabilities.

Features

• Triple Interface Configuration: Provides one PCIe 5.0 x8 female slot and two PCIe 5.0 x4 M.2 NVMe slots from a single x16 host interface
• Full PCIe 5.0 Performance: Supports data rates up to 32 GT/s per lane, delivering maximum bandwidth for all connected devices
• Advanced M.2 NVMe Support: Two M.2 slots compatible with PCIe 5.0 NVMe SSDs in 2280 form factor, supporting the latest high-speed storage devices
• Intelligent Lane Allocation: Efficiently distributes x16 host lanes to x8 slot and two x4 M.2 slots with optimized bandwidth allocation
• Enhanced Thermal Management: Integrated heatsink solution with thermal pads ensures proper cooling for PCIe 5.0 M.2 NVMe SSDs during sustained operations
• Premium Construction: High-quality PCB with optimized signal integrity design, gold-plated contacts, and robust components
• Universal Compatibility: Supports both standard expansion cards and high-speed NVMe storage devices on a single adapter

Specifications

• Host Interface: PCI Express 5.0 x16 Male
• Expansion Interfaces: 1x PCIe 5.0 x8 Female, 2x PCIe 5.0 x4 M.2 NVMe Slots (Key M)
• Supported Standards: PCI-SIG PCIe 5.0 Base Specification, NVMe 2.0
• Data Rate: 32.0 GT/s per lane (PCIe 5.0)
• Total Bandwidth: 512 Gbps (x16 lanes total allocation)
• M.2 Form Factors: 2280 (compatible with 2230, 2242, 2260 via included adapters)
• Heatsink Material: Aluminum with copper heat pipes
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Power Delivery: Supports up to 25W total power distribution

Applications

• High-Performance Workstations: Ideal for content creation, engineering, and scientific workstations requiring both expansion capability and ultra-fast storage
• Data Center Servers: Perfect for storage servers needing multiple high-speed NVMe devices alongside traditional expansion cards
• Gaming and Enthusiast Systems: Supports high-end gaming rigs requiring both powerful graphics cards and multiple PCIe 5.0 NVMe storage devices
• AI and Machine Learning Platforms: Essential for AI training systems demanding maximum storage bandwidth and expansion flexibility
• Video Production and Editing: Suitable for professional video workstations requiring fast storage and additional processing cards
• Financial Trading Systems: Supports low-latency trading platforms needing both high-speed storage and network/accelerator cards
• Research and Development: Ideal for laboratory environments testing PCIe 5.0 devices and storage configurations
• System Integration: Perfect for custom PC builders creating high-performance systems with optimized component configuration
