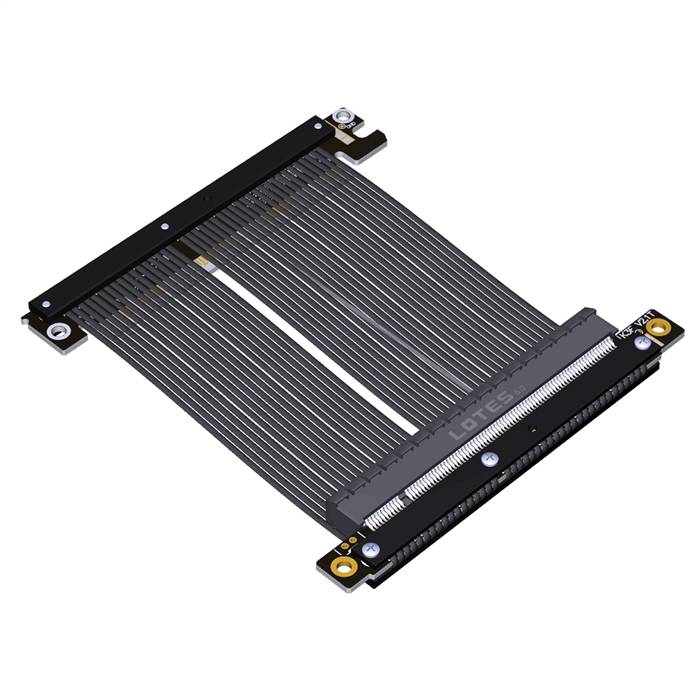

PCIe 5.0 x16 Male to x16 Female Extension Cable, Both Side Turn 180 Degree

The PCIe 5.0 x16 Male to x16 Female Extension Cable with 180-Degree Turn is a premium high-performance interconnect solution engineered for advanced computing systems requiring flexible GPU mounting and optimal signal integrity. This specialized cable features a complete 180-degree rotation design that enables unique graphics card installation configurations while maintaining full PCIe 5.0 performance. Ideal for custom PC builds, showcase systems, and space-constrained environments, this extension solution allows for creative component placement without compromising the exceptional bandwidth capabilities of the latest PCIe 5.0 specification.

Features

• Dual 180-Degree Rotation: Both connectors feature 180-degree turn capability for maximum installation flexibility and creative system configurations
• Full PCIe 5.0 Performance: Supports data rates up to 32 GT/s per lane, delivering total bandwidth of 128 GB/s (512 Gbps) for next-generation graphics cards and accelerators
• Premium Construction: Utilizes 6-layer PCB design with gold-plated contacts for enhanced signal integrity and corrosion resistance
• Advanced EMI Shielding: Multi-layer shielding technology significantly reduces electromagnetic interference and signal noise for stable operation
• Reinforced Cable Protection: Features TPE cable jacket and molded strain relief for durability and flexibility during installation
• Backward Compatibility: Fully compatible with PCIe 4.0 and PCIe 3.0 devices, ensuring broad system support
• Minimal Signal Degradation: Engineered for near-zero performance loss with bandwidth loss measuring approximately 0.19% in testing

Specifications

• Host Connector: PCI Express 5.0 x16 Male
• Target Connector: PCIe 5.0 x16 Female
• Connector Configuration: Dual 180-degree rotation capability
• Supported Standard: PCI-SIG PCIe 5.0 Base Specification
• Data Rate: 32.0 GT/s per lane (PCIe 5.0)
• Total Bandwidth: 128 GB/s (512 Gbps)
• PCB Construction: 6-layer board with reinforced design
• Contact Material: Gold-plated for optimal conductivity and oxidation resistance
• Cable Type: Shielded twin-axial with EMI protection
• Cable Length: 200mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Durability Rating: 10,000 mating cycles

Applications

• Custom Gaming Rigs: Perfect for showcase gaming PCs where unique GPU orientation enhances visual appeal and demonstrates build creativity
• Vertical GPU Mounting: Enables sophisticated vertical graphics card installations in modified cases and specialized enclosures
• Small Form Factor Builds: Provides flexible routing solutions for compact cases where traditional straight extensions are impractical
• Showcase Systems: Ideal for exhibition computers, demo stations, and competition builds requiring distinctive component presentation
• Professional Workstations: Supports high-end workstations where both performance and internal layout optimization are critical
• Modding Projects: Essential for PC modding enthusiasts creating custom case designs with non-traditional component placement
• Test and Development: Useful in laboratory environments requiring flexible configuration options for hardware validation and compatibility testing
• Aesthetic-Focused Builds: Enables clean cable management and streamlined internal layouts for visually-oriented system construction
