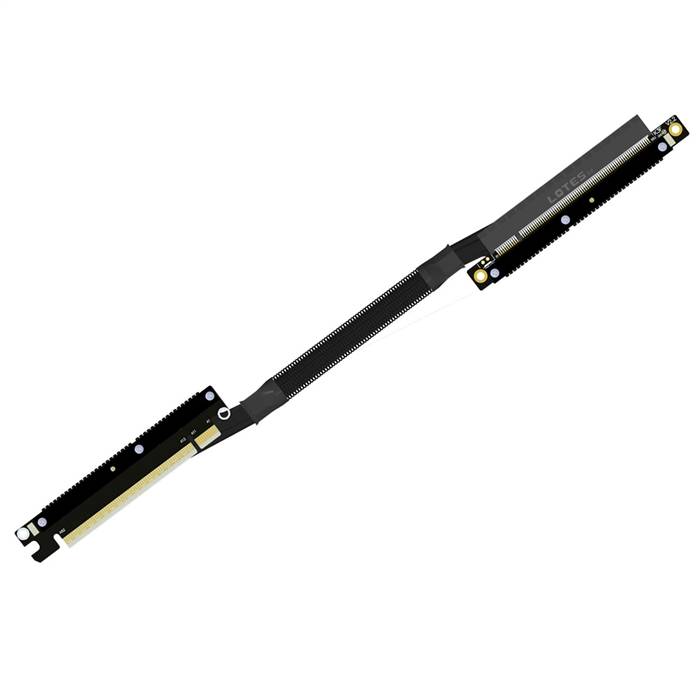

PCIe 5.0 x16 Male LSE(Left Side Exit) to x16 Female LSE(Left Side Exit) Extension Cable

The PCIe 5.0 x16 Male LSE (Left Side Exit) to x16 Female LSE (Left Side Exit) Extension Cable is a premium high-performance interconnect solution engineered for next-generation computing systems requiring consistent left-side cable routing and maximum PCIe 5.0 bandwidth. This specialized cable features dual left-side exit connectors that maintain organized cable orientation and management while delivering full PCIe 5.0 performance. Designed for modern computing architectures, server environments, and performance-critical systems, this extension solution ensures optimal signal integrity and efficient left-hand cable organization for demanding graphics cards, AI accelerators, and high-performance computing devices.

Features

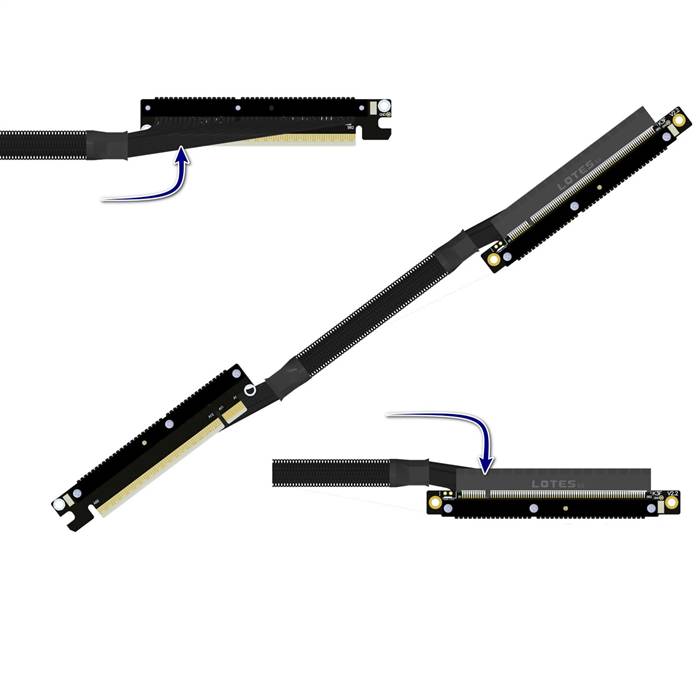

• Dual Left-Side Exit Design: Both male and female connectors feature left-side exit orientation for consistent and organized left-hand cable management
• Full PCIe 5.0 Performance: Supports data rates up to 32 GT/s per lane, delivering total bandwidth of 512 Gbps for next-generation computing devices and accelerators
• Optimized Left-Side Routing: Left-side exit configuration enables clean cable management and improves chassis airflow by maintaining consistent left-hand routing direction
• Enhanced Signal Integrity: Precision engineering with controlled impedance and advanced dielectric materials ensures stable data transmission at PCIe 5.0 speeds
• Space-Efficient Left-Side Design: Left-side exit orientation maximizes available space and facilitates superior component placement in various system configurations
• Reinforced Construction: High-quality materials with robust strain relief provide long-term reliability in continuous operation environments
• Advanced EMI/RFI Protection: Comprehensive shielding technology maintains signal integrity in high-frequency operating conditions

Specifications

• Host Connector: PCI Express 5.0 x16 Male, Left Side Exit
• Target Connector: PCIe 5.0 x16 Female, Left Side Exit
• Supported Standard: PCI-SIG PCIe 5.0 Base Specification
• Data Rate: 32.0 GT/s per lane (PCIe 5.0)
• Total Bandwidth: 512 Gbps (x16 lanes)
• Exit Configuration: Dual Left Side Exit (LSE)
• Cable Type: Shielded twin-axial with low-loss dielectric material
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated contacts for optimal signal transmission characteristics

Applications

• Advanced Gaming Systems: Ideal for high-performance gaming PCs where consistent left-side cable management enhances both thermal performance and internal aesthetics
• Data Center Infrastructure: Perfect for enterprise servers and data center applications requiring organized left-hand cable routing for optimal maintenance and airflow management
• Professional Content Creation Workstations: Suitable for video production, 3D rendering, and engineering workstations where maximum bandwidth and clean left-side cable management are critical
• Custom Computer Builds: Excellent for enthusiast and modder systems where left-side exit routing provides superior organization and visual presentation
• Vertical GPU Configurations: Supports modern vertical graphics card mounting in cases where left-side exit maintains clean cable presentation and management
• High-Performance Computing: Appropriate for AI training systems and computational clusters where organized left-side routing prevents cable interference and optimizes thermal performance
• System Integration Solutions: Valuable for integrated computing systems requiring predictable left-hand cable routing for consistent installation, serviceability, and reliability
• Showcase and Demonstration Computers: Perfect for exhibition systems and technology showcases where professional left-side cable management demonstrates exceptional build quality and attention to detail
