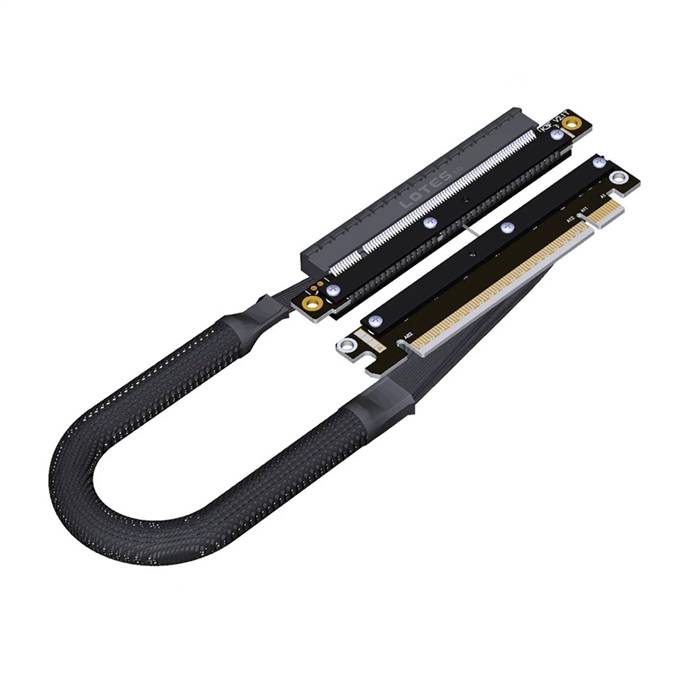

PCIe 5.0 x16 Male RSE(Right Side Exit) to x16 Female LSE(Left Side Exit) Extension Cable

The PCIe 5.0 x16 Male RSE (Right Side Exit) to x16 Female LSE (Left Side Exit) Extension Cable is a sophisticated high-performance interconnect solution designed for advanced computing systems requiring opposite-side cable routing configurations. This specialized cable features a Right Side Exit male connector combined with a Left Side Exit female connector, creating a unique cross-system routing path while maintaining full PCIe 5.0 performance. Engineered for complex PC builds, server applications, and specialized system integrations, this opposite-side exit solution enables innovative cable management approaches that address specific chassis layouts and optimize overall system organization.

Features

• Opposite-Side Exit Configuration: Combines Right Side Exit male connector with Left Side Exit female connector for innovative cross-system cable routing
• Full PCIe 5.0 Performance: Supports data rates up to 32 GT/s per lane, delivering total bandwidth of 512 Gbps for next-generation graphics cards and high-performance computing devices
• Optimized Cross-Routing Design: RSE to LSE configuration enables unique cable paths that can circumvent obstacles and optimize chassis space utilization
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission through the opposite-side exit cable path
• Space-Efficient Opposite Routing: Enables cable routing around components and through specific channels that traditional same-side cables cannot access
• Reinforced Construction: High-quality materials with robust strain relief provide long-term reliability in demanding installation environments
• Advanced EMI Protection: Comprehensive shielding technology maintains signal quality in high-frequency operating conditions

Specifications

• Host Connector: PCI Express 5.0 x16 Male, Right Side Exit
• Target Connector: PCIe 5.0 x16 Female, Left Side Exit
• Supported Standard: PCI-SIG PCIe 5.0 Base Specification
• Data Rate: 32.0 GT/s per lane (PCIe 5.0)
• Total Bandwidth: 512 Gbps (x16 lanes)

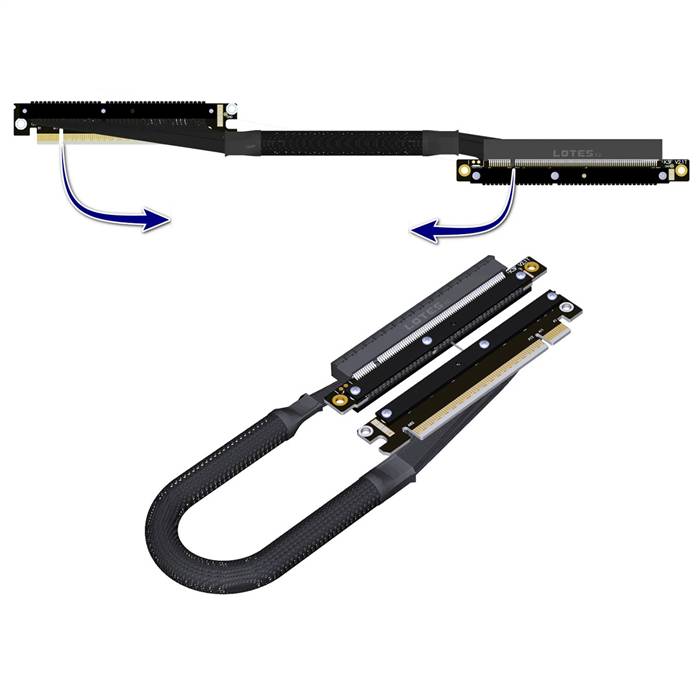

• Exit Configuration: RSE Male to LSE Female opposite-side design
• Cable Type: Shielded twin-axial with low-loss dielectric
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated contacts for optimal signal transmission

Applications

• Complex System Integration: Ideal for advanced computing systems requiring specific opposite-side cable routing to navigate around internal components and obstacles
• Custom Chassis Designs: Perfect for modified cases and custom enclosures where opposite-side exit configuration provides optimal cable pathing around unique internal structures
• Server and Data Center Applications: Suitable for rack-mounted servers requiring specific cable routing patterns that benefit from opposite-side exit capabilities
• Multi-GPU Configurations: Excellent for systems with multiple graphics cards where opposite-side routing helps prevent cable congestion and improves airflow between components
• Professional Workstation Builds: Appropriate for content creation and engineering workstations where specific cable routing requirements demand opposite-side exit solutions
• Vertical Mounting Systems: Supports vertical GPU installations in cases where opposite-side exit routing provides cleaner cable presentation and management
• Prototype and Development Platforms: Valuable for engineering environments requiring flexible cable routing options for testing different system configurations and layouts
• Aesthetic-Optimized Computers: Perfect for showcase builds where innovative opposite-side cable routing demonstrates sophisticated problem-solving and attention to detail in system organization
