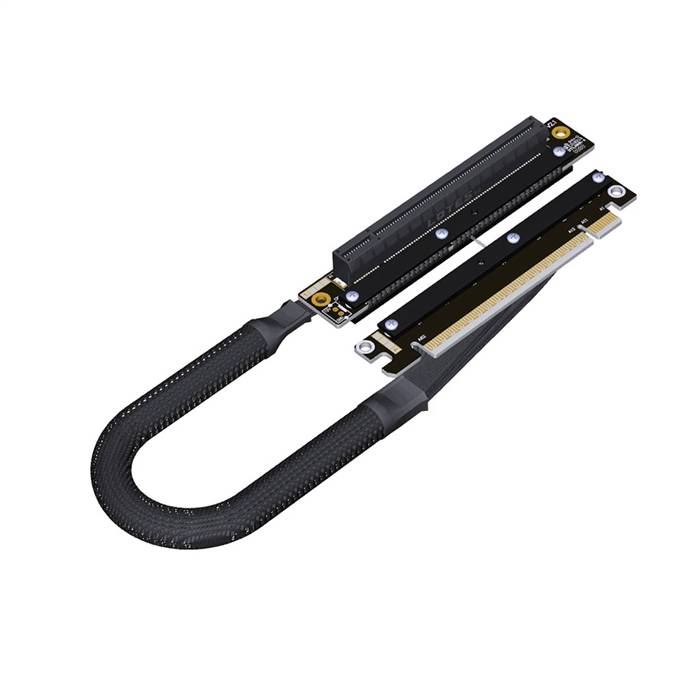

PCIe 5.0 x16 Male RSE(Right Side Exit) to x16 Female R/A Extension Cable

The PCIe 5.0 x16 Male RSE (Right Side Exit) to x16 Female R/A Extension Cable is an advanced high-performance interconnect solution designed for next-generation computing systems requiring hybrid cable management configurations. This specialized cable combines a Right Side Exit male connector with a Right-Angle female connector, providing unique installation flexibility while maintaining full PCIe 5.0 performance. Engineered for modern PC builds, server applications, and complex system integrations, this hybrid solution enables optimized cable routing with both straight and angled connection options, addressing challenging spatial constraints and enhancing overall system organization.

Features

• Hybrid Connector Configuration: Combines Right Side Exit male connector with Right-Angle female connector for versatile installation options and cable management
• Full PCIe 5.0 Performance: Supports data rates up to 32 GT/s per lane, delivering total bandwidth of 512 Gbps for next-generation graphics cards and high-performance computing devices
• Optimized Right-Side Routing: RSE male connector enables clean right-hand cable exit from the motherboard while R/A female connector provides space-efficient device connection
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission through both straight and angled cable paths
• Space-Efficient Design: Hybrid configuration maximizes available space and facilitates better component placement in various system layouts
• Reinforced Construction: High-quality materials with robust strain relief provide long-term reliability in continuous operation environments
• Advanced EMI Protection: Comprehensive shielding technology maintains signal quality in high-frequency operating conditions

Specifications

• Host Connector: PCI Express 5.0 x16 Male, Right Side Exit
• Target Connector: PCIe 5.0 x16 Female, Right-Angle orientation
• Supported Standard: PCI-SIG PCIe 5.0 Base Specification
• Data Rate: 32.0 GT/s per lane (PCIe 5.0)
• Total Bandwidth: 512 Gbps (x16 lanes)

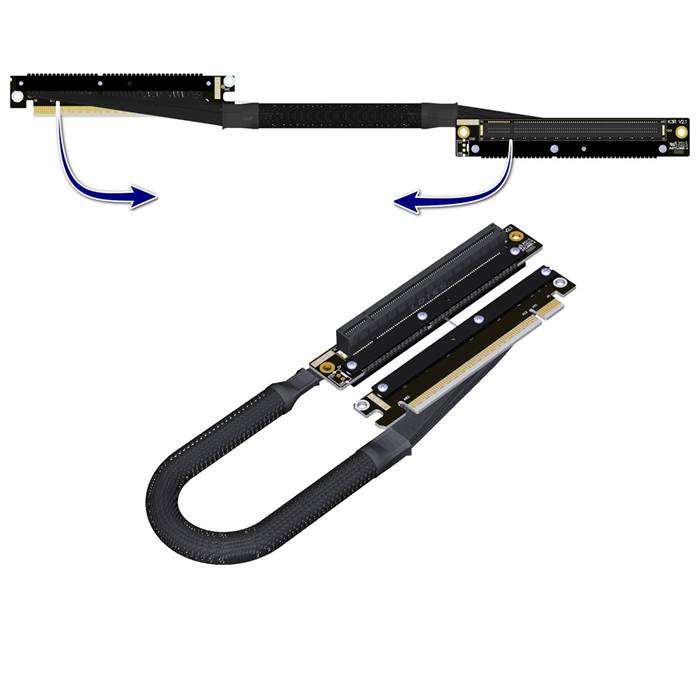

• Connector Configuration: RSE Male to R/A Female hybrid design
• Cable Type: Shielded twin-axial with low-loss dielectric
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated contacts for optimal signal transmission

Applications

• Advanced System Integration: Ideal for complex computing systems requiring both straight motherboard connection and angled device mounting for optimal space utilization
• Modern Gaming Rigs: Perfect for gaming PCs where right-side exit routing from the motherboard combines with right-angle GPU connection for clean cable management
• Server and Data Center Applications: Suitable for rack-mounted servers requiring specific cable routing configurations that benefit from hybrid connector types
• Custom PC Builds: Excellent for enthusiast systems where hybrid connector configuration provides superior flexibility in challenging installation scenarios
• Vertical Mounting Solutions: Supports vertical GPU configurations where right-side exit from motherboard and right-angle device connection optimize overall cable presentation
• Space-Constrained Workstations: Appropriate for compact professional workstations where hybrid connector types maximize available space and improve thermal management
• Prototype and Development Systems: Valuable for engineering and testing environments requiring flexible connection options for component validation and system development
• Aesthetic-Focused Computers: Perfect for showcase builds where hybrid cable management demonstrates innovative solutions for clean internal organization and visual appeal
