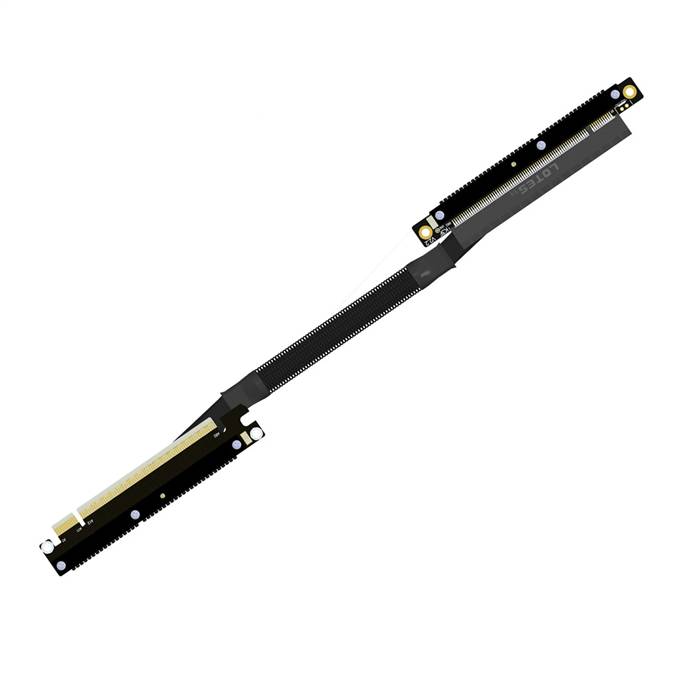

PCIe 5.0 x16 Male RSE(Right Side Exit) to x16 Female RSE(Right Side Exit) Extension Cable

The PCIe 5.0 x16 Male RSE (Right Side Exit) to x16 Female RSE (Right Side Exit) Extension Cable is a premium high-performance interconnect solution designed for next-generation computing systems requiring consistent right-side cable routing and maximum PCIe 5.0 performance. This specialized cable features dual right-side exit connectors that maintain proper cable orientation and management while delivering full bandwidth capabilities. Engineered for modern PC builds, server environments, and performance-optimized systems, this extension solution ensures optimal signal integrity and efficient right-hand cable organization for the most demanding graphics cards and computational accelerators.

Features

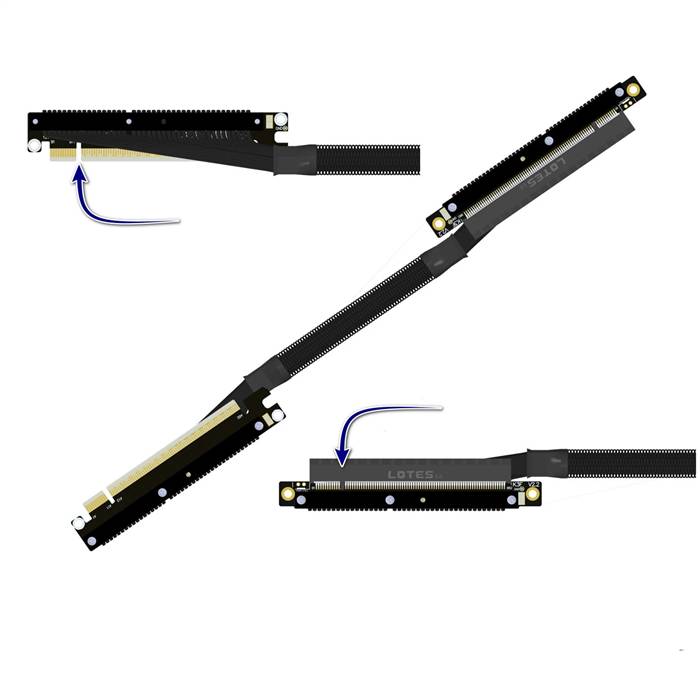

• Dual Right-Side Exit Design: Both male and female connectors feature right-side exit orientation for consistent and organized right-hand cable management
• Full PCIe 5.0 Performance: Supports data rates up to 32 GT/s per lane, delivering total bandwidth of 512 Gbps for next-generation graphics cards and high-performance computing devices
• Optimized Right-Side Routing: Right-side exit configuration enables clean cable management and improves chassis airflow by maintaining consistent routing direction
• Enhanced Signal Integrity: Precision engineering with controlled impedance and advanced materials ensures stable data transmission at PCIe 5.0 speeds
• Space-Efficient Design: Right-side exit orientation maximizes available space and facilitates better component placement in various system configurations
• Reinforced Construction: High-quality materials with robust strain relief provide long-term reliability in continuous operation environments
• Advanced EMI Protection: Comprehensive shielding technology maintains signal quality in high-frequency operating conditions

Specifications

• Host Connector: PCI Express 5.0 x16 Male, Right Side Exit
• Target Connector: PCIe 5.0 x16 Female, Right Side Exit
• Supported Standard: PCI-SIG PCIe 5.0 Base Specification
• Data Rate: 32.0 GT/s per lane (PCIe 5.0)
• Total Bandwidth: 512 Gbps (x16 lanes)
• Exit Configuration: Dual Right Side Exit (RSE)
• Cable Type: Shielded twin-axial with low-loss dielectric
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated contacts for optimal signal transmission

Applications

• High-Performance Gaming Systems: Ideal for advanced gaming PCs where consistent right-side cable management enhances both aesthetics and thermal performance
• Data Center Server Applications: Perfect for rack-mounted servers and enterprise systems requiring organized right-hand cable routing for maintenance and airflow optimization
• Professional Workstations: Suitable for content creation and engineering workstations where both maximum bandwidth and clean cable management are essential
• Custom PC Builds: Excellent for enthusiast systems where right-side exit routing provides superior organization and visual appeal
• Vertical Mounting Solutions: Supports vertical GPU configurations in modern cases where right-side exit maintains clean cable presentation
• System Integration Projects: Valuable for integrated solutions requiring predictable right-hand cable routing for consistent installation and serviceability
• High-Density Computing: Appropriate for systems with multiple GPUs where organized right-side routing prevents cable interference and improves airflow
• Showcase and Exhibition Computers: Perfect for display systems where clean right-side cable management demonstrates professional build quality and attention to detail
