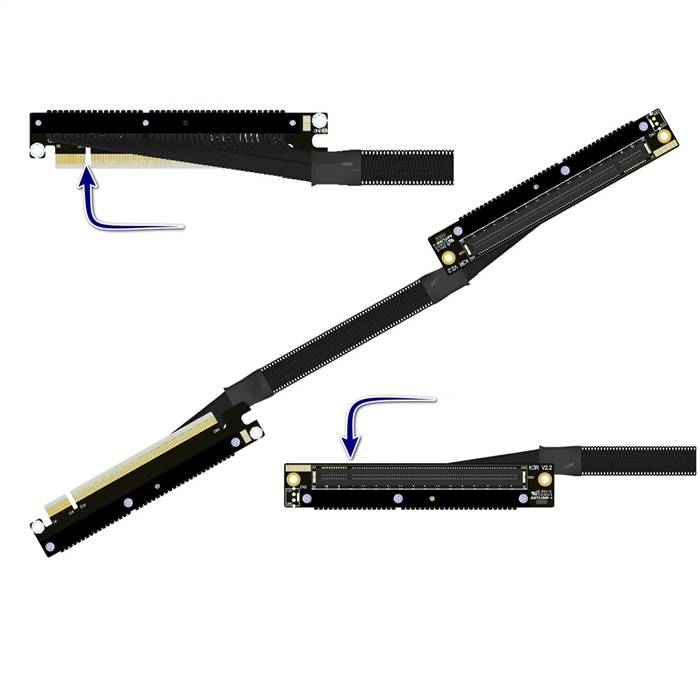

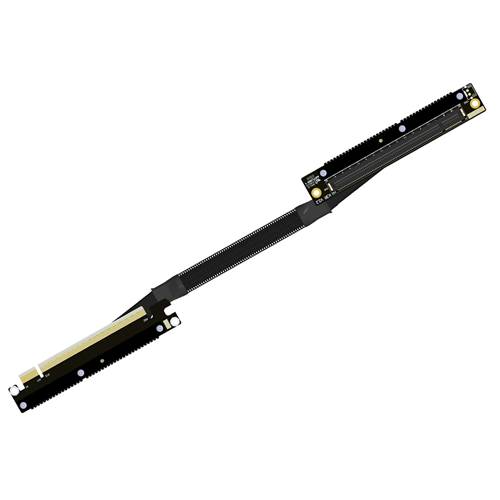

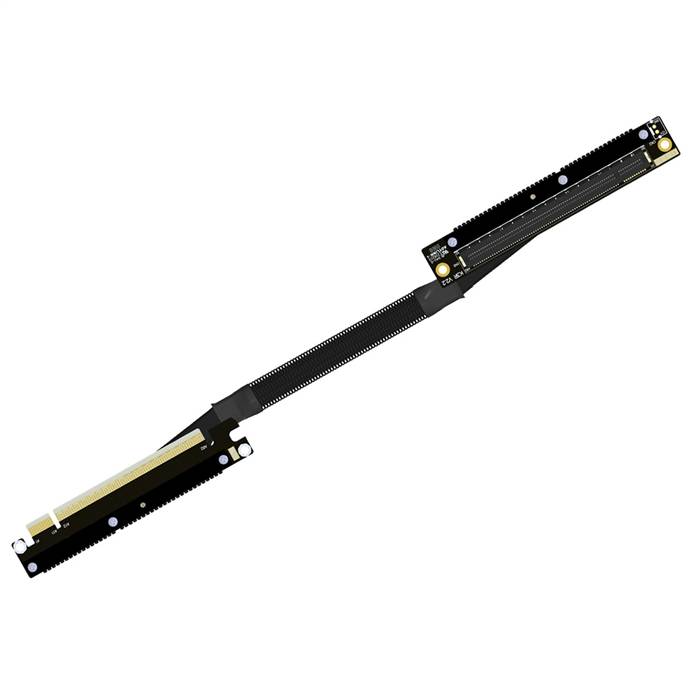

PCIe 5.0 x16 Male RSE(Right Side Exit) to x16 Female RSE(Right Side Exit) 90 Degree Extension Cable

The PCIe 5.0 x16 Male RSE (Right Side Exit) to x16 Female RSE (Right Side Exit) 90 Degree Extension Cable is an advanced high-performance interconnect solution designed for next-generation computing systems requiring precise right-side cable routing and optimal space utilization. This specialized cable features dual right-side exit 90-degree connectors that enable efficient perpendicular GPU mounting with clean right-hand cable management while maintaining full PCIe 5.0 performance. Engineered for modern PC builds, server applications, and space-optimized systems, this extension solution facilitates superior cable organization and improved airflow in configurations where right-side routing is preferred for optimal system layout.

Features

• Dual Right-Side Exit Design: Both male and female connectors feature 90-degree right-side exit orientation for consistent right-hand cable management
• Full PCIe 5.0 Performance: Supports data rates up to 32 GT/s per lane, delivering total bandwidth of 512 Gbps for next-generation graphics cards and accelerators
• Precision 90-Degree Angled Configuration: Right-side exit design enables clean perpendicular mounting with optimized right-hand cable routing
• Enhanced Signal Integrity: Advanced engineering with controlled impedance ensures stable data transmission through the 90-degree right-exit path
• Space-Optimized Layout: Right-side exit configuration maximizes chassis space utilization and improves overall system airflow management
• Reinforced Right-Angle Construction: High-quality materials with robust strain relief specifically designed for right-side exit applications
• Advanced EMI Shielding: Multi-layer protection maintains signal quality in high-speed PCIe 5.0 environments

Specifications

• Host Connector: PCI Express 5.0 x16 Male, Right Side Exit 90-degree
• Target Connector: PCIe 5.0 x16 Female, Right Side Exit 90-degree
• Supported Standard: PCI-SIG PCIe 5.0 Base Specification
• Data Rate: 32.0 GT/s per lane (PCIe 5.0)
• Total Bandwidth: 512 Gbps (x16 lanes)
• Exit Configuration: Dual Right Side Exit (RSE) 90-degree
• Cable Type: Shielded twin-axial with reinforced right-angle construction
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated contacts

Applications

• Modern Gaming Systems: Ideal for contemporary gaming PCs where right-side cable management optimizes chassis layout and airflow
• Server and Data Center Applications: Perfect for rack-mounted servers requiring consistent right-hand cable routing for serviceability and maintenance
• Compact Workstation Builds: Suitable for space-constrained workstations where right-side exit configuration maximizes internal space utilization
• Aesthetic-Focused Computers: Excellent for showcase builds where clean right-hand cable management enhances visual presentation and organization
• Vertical GPU Mounting Setups: Supports vertical graphics card installations in cases where right-side exit routing provides optimal cable concealment
• Custom Case Modifications: Essential for modified cases specifically designed around right-hand component placement and cable routing
• Professional Content Creation Rigs: Suitable for high-end workstations where both performance and organized right-side cable management are critical
• System Integration Projects: Valuable for integrated systems requiring predictable right-hand cable routing for consistent installation and serviceability
