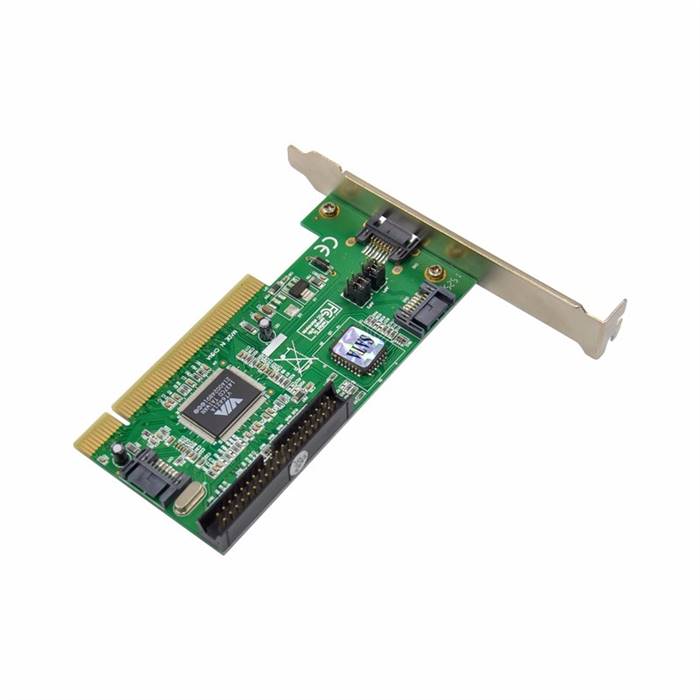

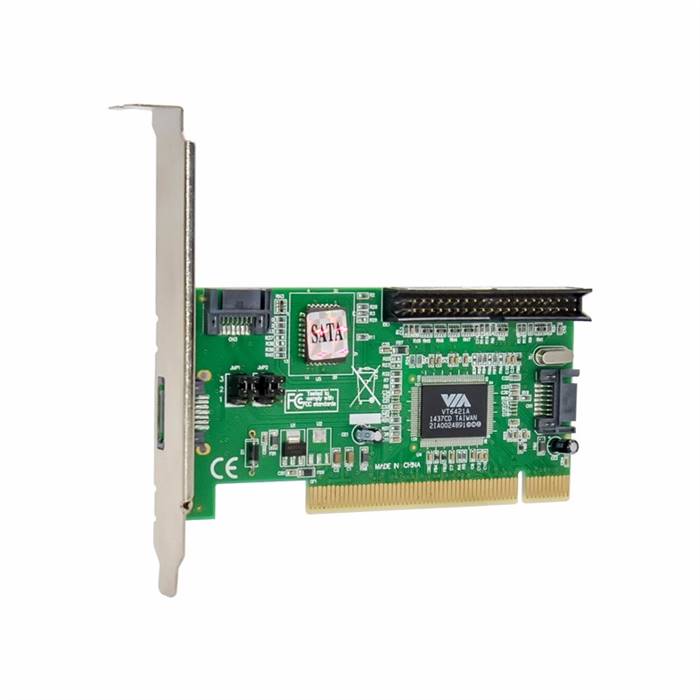

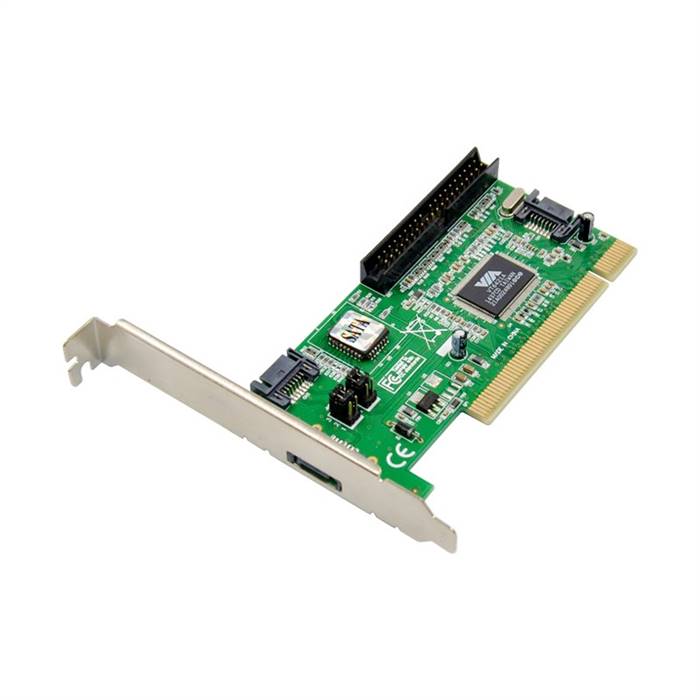

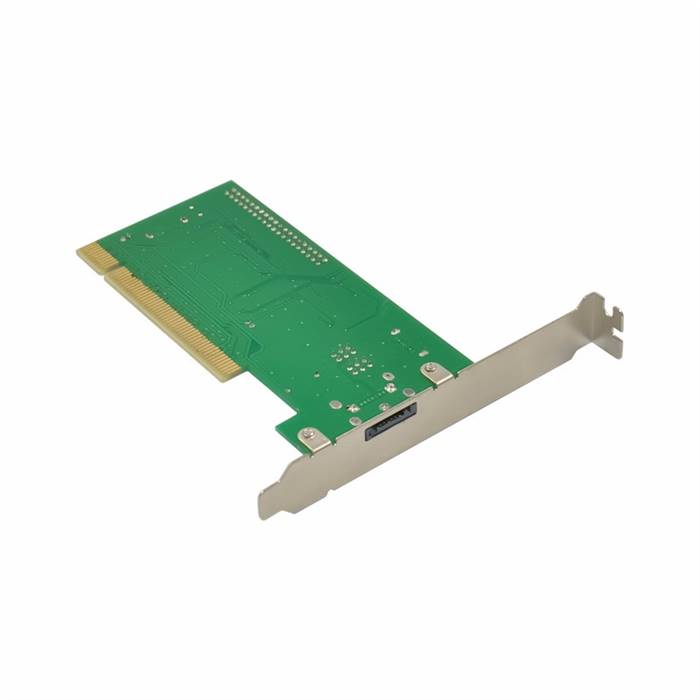

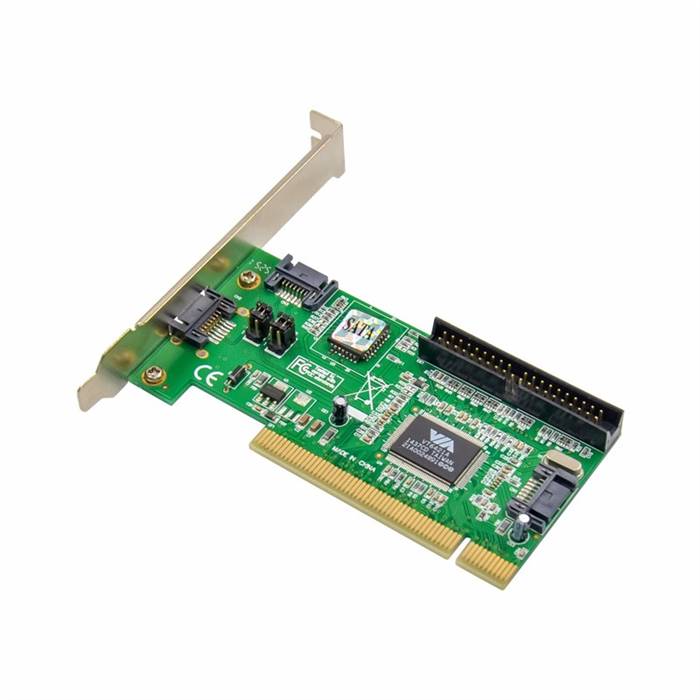

PCI 3-port SATA 150 Raid & 1-port IDE Combo Controller Card
PCI 3-port SATA 150 Raid & 1-port IDE Combo Controller Card



Alternative Views:


Our Price: $9.50
Warranty: 1 Year Warranty


Product Code: PCI-S1-3S1P
Qty:

Description

This PCI 3-port SATA 150 Raid & 1-port IDE Combo Controller Card offers reliability to your desktop PC or servers using Serial ATA drives. It features the VIA VT6421A chipset and supports three Serial ATA drives and one UDMA/133 drives. The RAID functions are only supported on the SATA hard drives. It also features ATA Smart function support and its Plug and Play.

Features

  • Extend three SATA interfaces and one ATA133 IDE interface in PC with PCI slot
  • Supports three SATA and one PATA hard disk drives
  • 1 x External eSATA I, 2 x Internal SATA I, 1 x Internal PATA IDE ports
  • Compliant with Serial ATA 1.0 specification
  • Compliant with PCI Specification, revision 2.2
  • Supports up to UDMA6 transfer mode of PATA
  • Supports ATA 133 high performance hard disk drives
  • Supports up to 4 storage device connection
  • Only SATA supports RAID
  • Supports RAID 0, 1, 0+1 and JBOD functions
  • Supports drives with capacities larger than 137GB

Specifications

  • Chipset: VIA VT6421A
  • Bus Type: PCI Rev2.2
  • Connector
    • 2 x Internal SATA connectors
    • 1 x External eSATA connector
    • 1 x IDE(PATA) connector
  • Data Transfer Rate
    • eSATA / SATA up to 1.5 GB/s
    • PATA up to 133 Mbps
  • Raid Array
    • RAID 0, 1, 0+1 and JBOD Functions
    • Co-Exist Raid set up to UDMA6 transfer mode of PATA
  • OS Support: Windows XP/Vista/Server 2003/Server 2008 /Win 7/Win 8/Win 10, DOS, Linux and above

Package Contents

  • 1 x PCI SATA + PATA Raid Card VT6421A
  • 1 x Driver CD
  • 1 x User Manual
