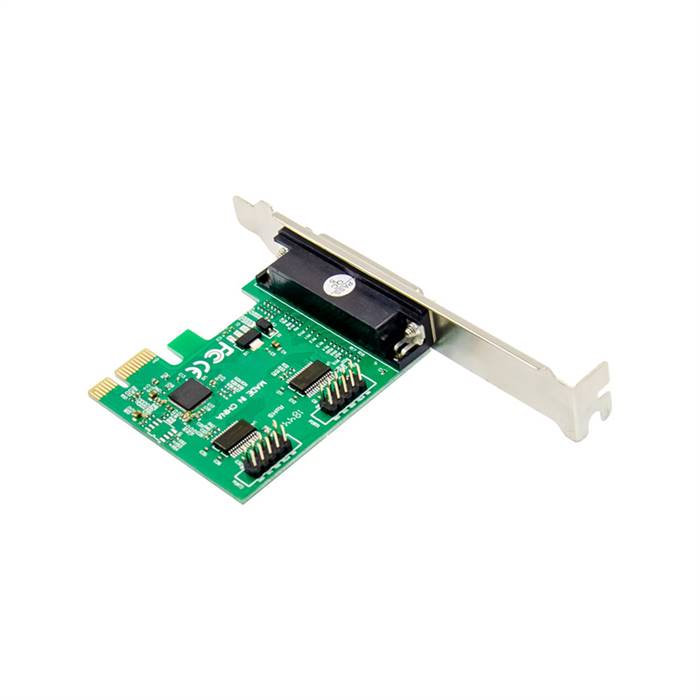

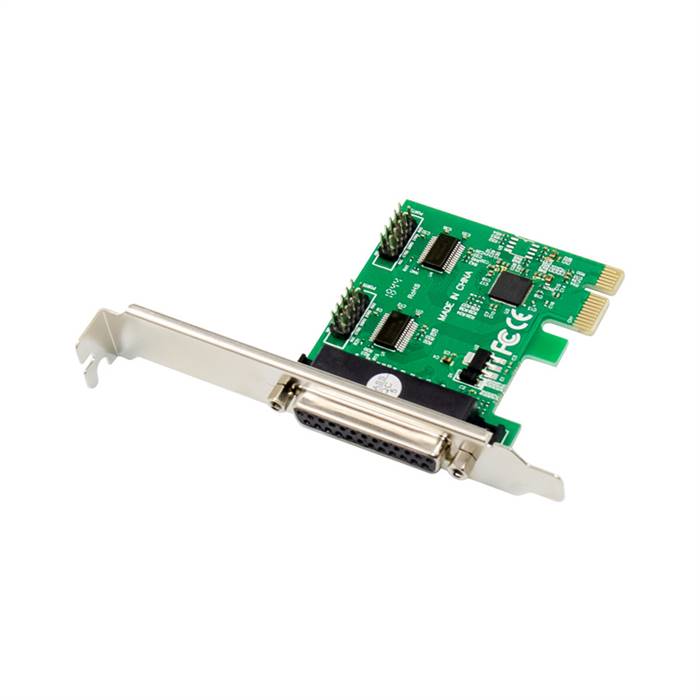

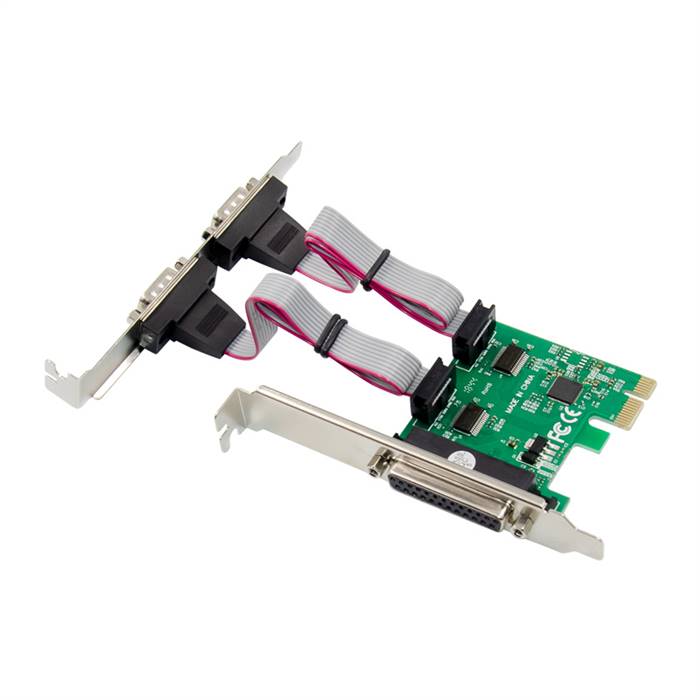

The PCIe AX99100 Serial & Parallel card is a single chip solution that fully integrates PCIe 2.0 Gen 1 end-point controller. It has two serial ports and one parallel port, which can be easily to expand more devices. The serial port supports RS-232 protocol and it has transmission speed up to 115200bps. And it supports hardware and software flow control. The Parallel port is a bidirectional extension of the existing PC parallel interface. It is compatible with IEEE1284-SPP/Byte/ECP mode.

Features

• Single-lane(x1) PCI-Express End-point controller with PHY integrated
• Compliant with PCI Express 2.0 Gen1
• Compliant with PCI Power Management 1.2
• Supports Single RS-232 port and Parallel port
• Supports Operating System: Linux kernel 4.x/3.x/2.6.x ,Windows XP/Vista/Win7/Win8/Win8.1/Win10 32/64bit

Serial port interface

• Full serial Modem control
• Supports hardware ,software Flow control
• Supports 5,6,7,8 and 9-bit Serial format
• Supports Even, Odd, None, Space and Mark Parity
• Supports Custom baud rate by internal PLL
• Supports on chip 256 Byte depth FIFOs in Transmit, Receive path of each serial port
• Supports remote wakeup and power management features
• Supports Slow IrDA mode(up to 115200bps) on all serial ports

Parallel port

• Compatible with IEEE1284-SPP/Byte/ECP mode

Package content

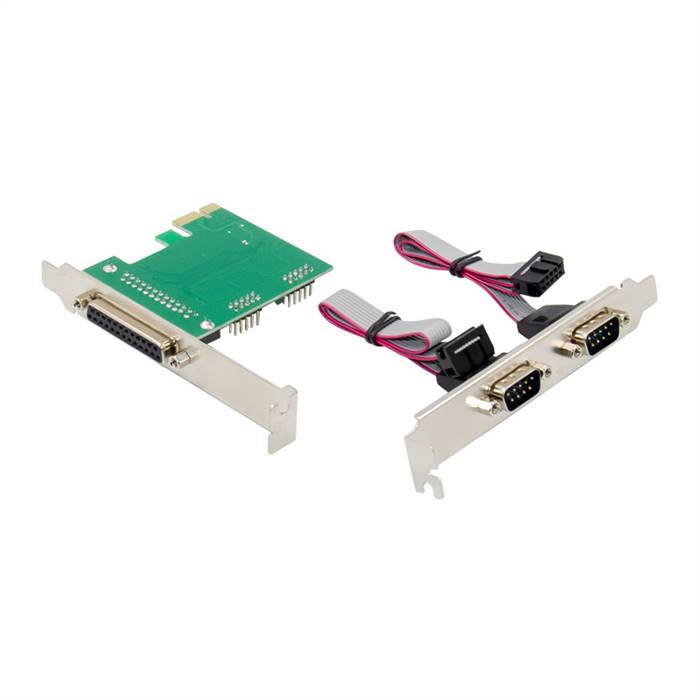

• 1 x PCIe AX99100 Serial & Parallel card
• 1 x User Manual
• 1 x Driver CD
• 2 x Low profile bracket

System Requirements

• Linux, Windows XP/Vista/Win7/Win8/Win8.1/Win10 32bit or 64 bit
• Available PCI Express x1 slot
