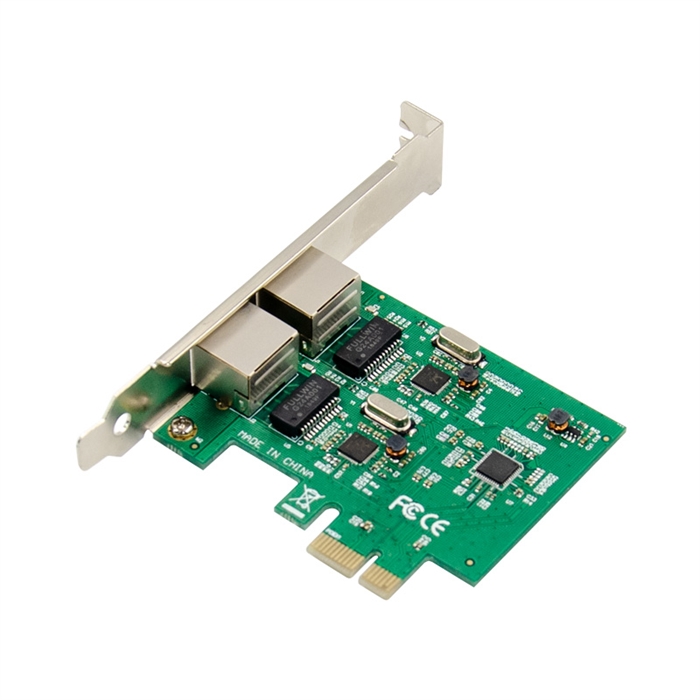

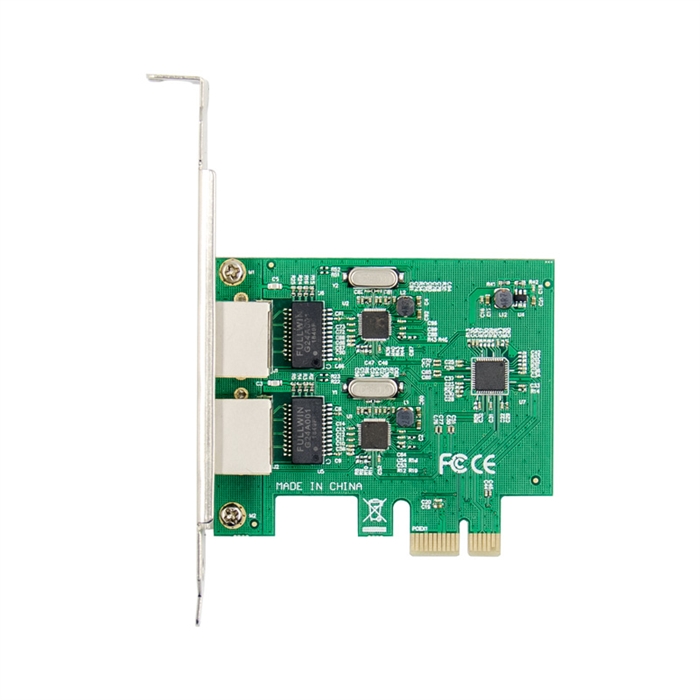

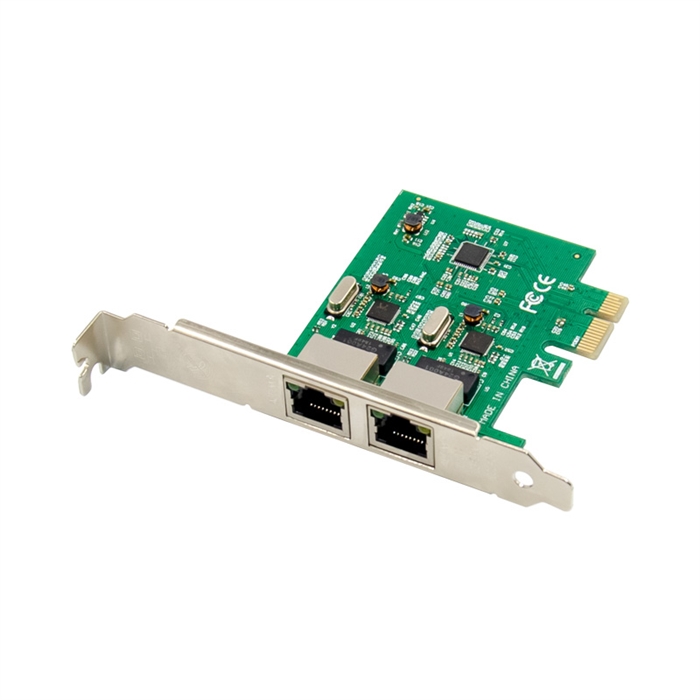

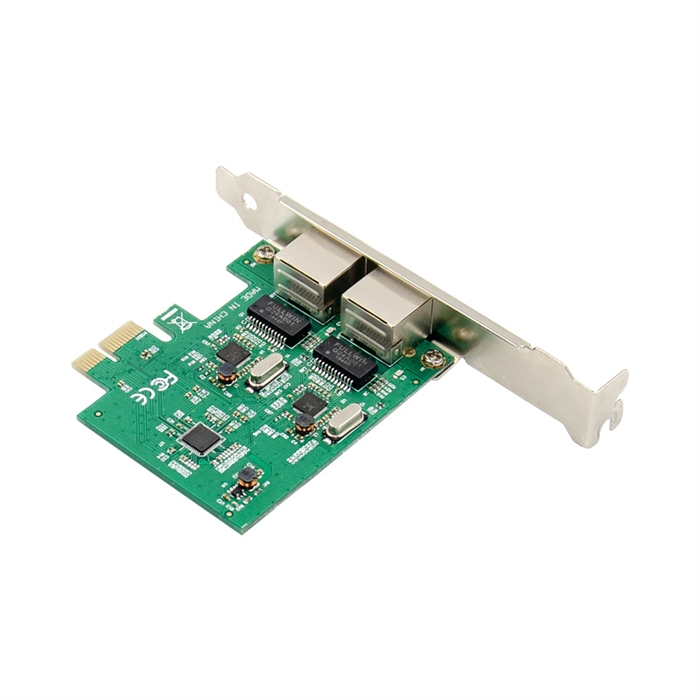

PX1-GE-2T-8111F is a PCI Express x1 Gigabit Ethernet desktop network adapter based on RTL8111F chipset. The Gigabit adapter adopts a compact design and does not reduce the performance of the NIC. The adapter adopts Ethernet power management technologies such as Energy Efficient Ethernet and DMA Merge. It has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. Manage latency data packets efficiently by combining parallel and pipe-lined logical architectures. The adapter has high-performance network data transmission on the machine bus architecture, compatible with Ethernet and fast Ethernet to greatly reduce customer deployment and training costs.

Features

• Complies with PCI Express Revision 1.1
• PCI Express 1-Lane (x1) interface
• Supports standard and low profile chassis
• A high performance 1000BASE-T Ethernet controller card
• Backward compatible to 10/100BASE-T networking
• Supports jumbo frame to 9K bytes
• 10/100/1000Mbps data rate auto negotiation operation
• Compatible to existing CAT-5 UTP cabling
• Fully compliant with IEEE802.3,IEEE802.3u, IEEE802.3ab
• Supports half / full duplex mode and 802.3x Flow Control
• Supports IEEE802.1P Layer2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Transmit /Receive on-chip buffer support
• Crossover Detection and Auto Correction operation
• Supports power down/link down power saving
• Wake-on-LAN and remote wake-up function support

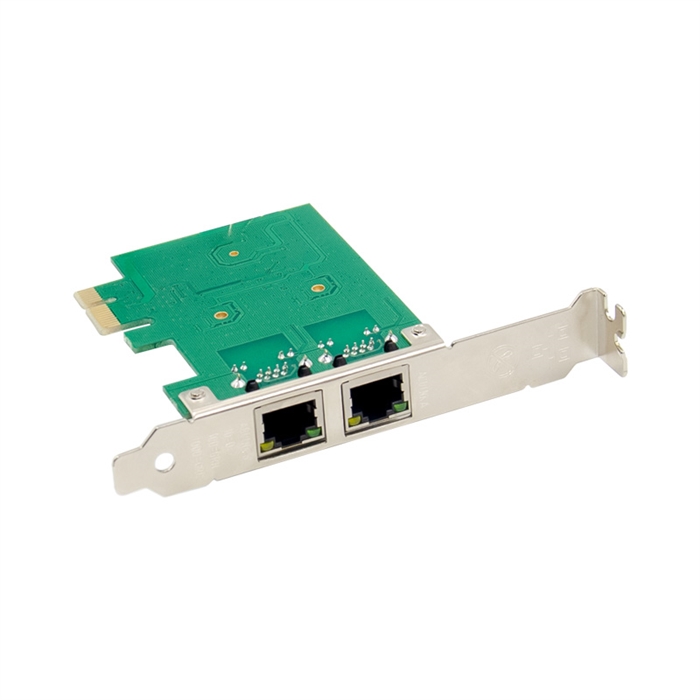

• 2 * RJ45 Gigabit LAN ports

Specifications

• Chipset: RTL8111F + ASM1182e
• Bus Type: PCI Express* 1.1 (2.5GT/s) x1
• Connector: 2 * RJ45 (Copper)
• Transmission Rate: 10/100/1000 Mbps
• Cabling
  • 1000Base-T Cat 5E, Cat6 or higher: up to 100m
  • 100Base-Tx Cat5, Cat5E, Cat6 or higher: up to 100m
  • 10Base-T Category 3, 4, 5, 5E, 6 or higher: up to 100m
• IEEE Standard / Network topology
  • 1000BASE-T Gigabit Ethernet, IEEE 802.3az - Energy Efficient Ethernet (EEE)
  • IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588
• System Requirements
  • Windows XP / ME / Server 2000 / Server 2003 / Server 2008 /
  • Vista / Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
• Applicable fields: Home or office use
