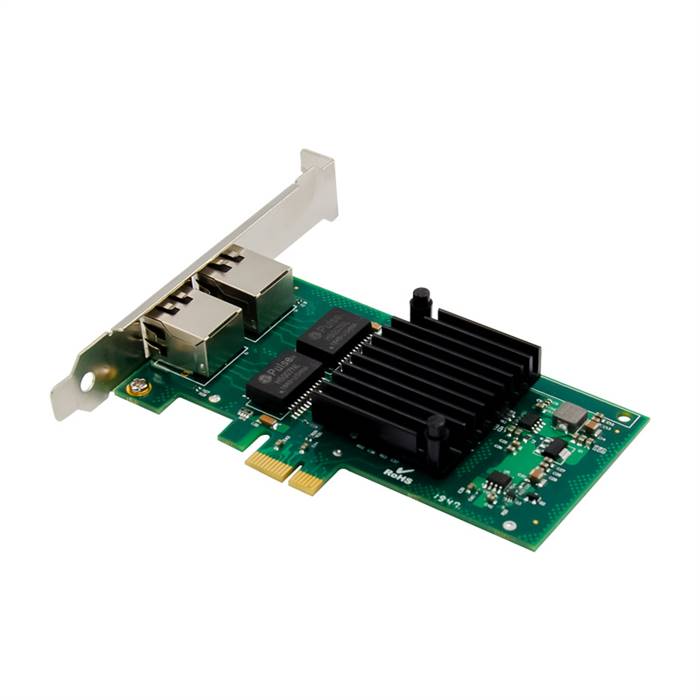

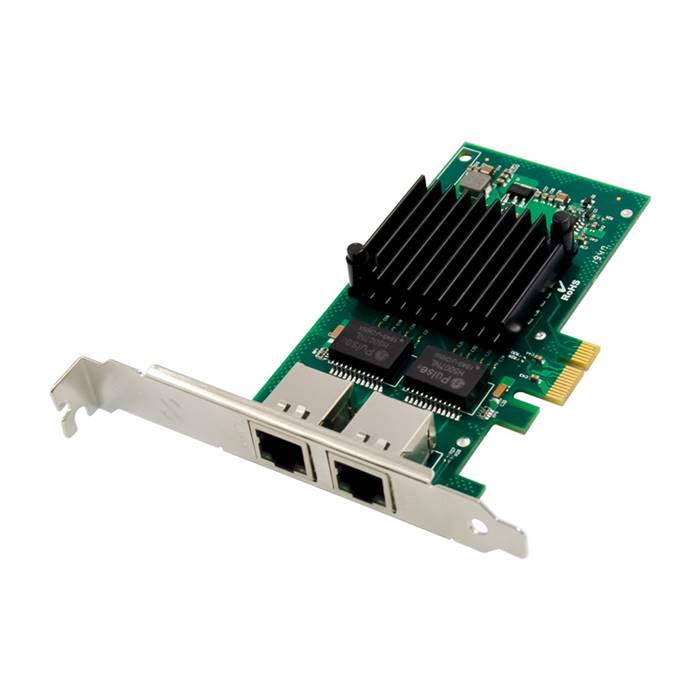

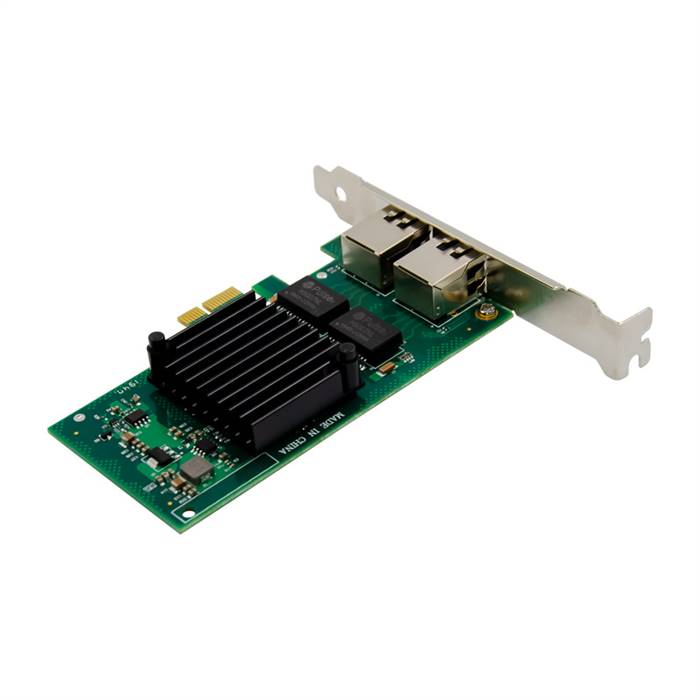

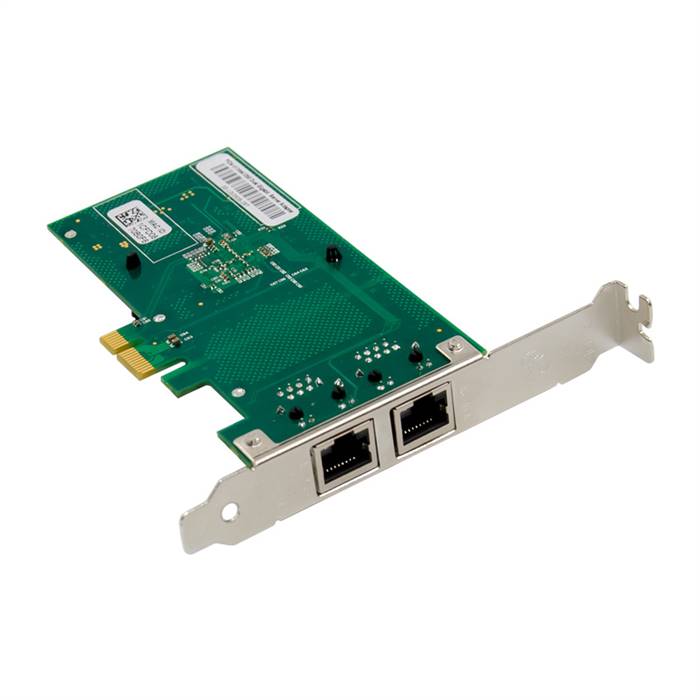

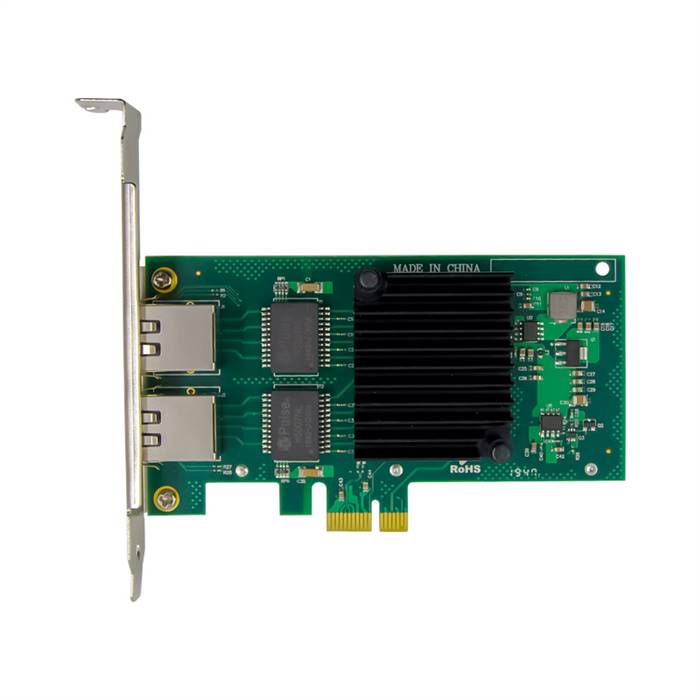

PX1-GE-2T-I350 is a PCIe 2.0 x1 dual-port RJ45 Connector Gigabit Ethernet network card, based on Intel I350 chip solution. It is also compatible with PCIe x4, x8, x16 channels. The network card design is primarily used on desktop workstations. The network card can be bundled into groups at the same time through multiple ports to achieve fault tolerance and redundancy to extend network bandwidth and ensure network performance. It can automatically detect and implement communication from the failed port to other members in the same group in real time, to achieve uninterrupted high performance communication.

The network card features integrated hardware acceleration to perform TCP/UDP/IP checksum offloading and TCP segmentation tasks. The host processing technology can load the accelerator, and the host processing technology can load the accelerator, which greatly releases the CPU resources and frees up more CPU resources to process other applications. This network card is an ideal solution for applications that deploy workstation networks.

PX1-GE-2T-I350 was developed on the Intel I350 dual-port Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller. It allows both ports to operate in full-duplex mode for high-performance network communications in a Gigabit Ethernet connection. Bandwidth can be extended by link aggregation and the PCI Express channel resources can be saved without consuming bus bandwidth.

Features

• Halogen-free dual Gigabit Ethernet adapters with copper interface options
• Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
• Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
• Scalable iSCSI performance delivering cost-effective SAN connectivity
• High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s
• Reliable and proven Gigabit Ethernet technology

Specifications

• Controller: Intel I350
• Connector: 2* RJ45
• Bus Type: PCI Express v2.1 (2.5GT/s & 5.0GT/s) x1, Compatible with PCIe x4,x8 or x16
• Data Rate Per Port: 10Mbps/100Mbps/1000Mbps
• Transmission Medium: Copper UTP
• Cable Type
  • 1000Base-T Cat 5E / Cat6 Or Higher: Up to 100m
  • 100Base-Tx Cat5/Cat 5E/ Cat6 Or Higher: Up to 100m
  • 10Base-T Category 3/4/5/5E/6 Or Higher: Up to 100m
• Bracket: Low Profile Bracket and Full-height Bracket
• Power Dissipation (MAX): 2.0W
• Operating system support
  • Windows 10
  • Windows 8/8.1
  • Windows 7
  • Windows Vista
  • Windows XP
  • Windows Server 2003
  • Windows Server 2008 /R2
  • Windows Server 2012 /R2
  • Windows Server 2016 /R2
  • Novell Netware 5.x/6.x or later
  • Linux kernel version 2.4.x/2.6.x/3.x/4.x or later
  • FreeBSD 7/8/9 or later
  • Sun Solaris 9/10/11 or later
  • VMware ESX/ESXi 4.x/5.x/6.x or later

Technical Parameters

• Ethernet power management: Yes
• IEEE* 802.3 adaptive: Yes
• Support adaptation rate: 10BASE-T, 100BASE-TX, 1000BASE-T
• IEEE Standard / Network topology
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3u 100base-TX
  • IEEE 802.3 az
  • IEEE 802.1Q VLAN
  • IEEE 802.1ad
• PCI-SIG * SR-IOV Support: Yes
• Jumbo frame Support: Yes
• VMDq: Yes
• DPDK Support: Yes
• PXE Support: Yes
• iSCSI Support: Yes
• WOL Support: Yes
• FCoE Support: No

Environmental Parameters

• Operating Temperature: 0 ℃ to 55 ℃ (32 ℉ to 131 ℉)
• Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity: 35% to 90%, non condensing

LED Indicators

• LED Indicators: 1000Mbps:Link Yellow+ Green blinking

Physical Features

• PCB Dimension(mm): 104.5*66.8*1.6
• Weight (g): 72g

Packing Details

• Package Dimension(mm): 179*150*30
• 2U Bracket: *1
• Installation Guide: *1
• Warranty Card: *1
• Gross Weight (g): 171
